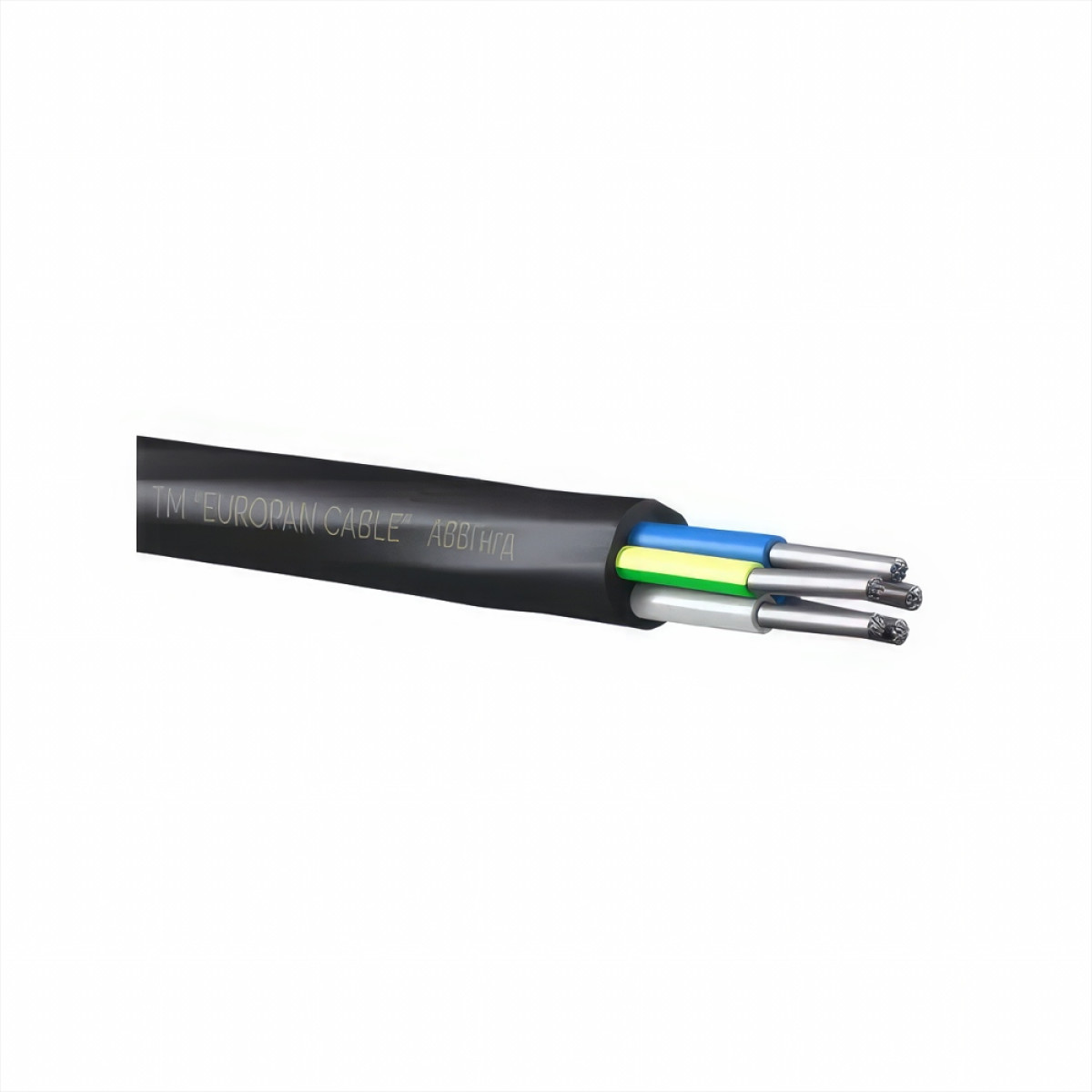

AVVG cable 3x70+1x35 power EUROPAN CABLE (1026)

Description

AVVG 3x70+1x35 power cable EUROPAN CABLE (1026)¶¶AVVG - Power cable with aluminum conductors, polyvinyl chloride insulation and sheath.¶Application.¶Designed for transmission and distribution of electrical energy in stationary installations for rated alternating voltage of 0.66; 1 kV with a frequency of 50 Hz.¶It is used when laying in blocks, on specialized cable racks, can be used in industrial premises, in switchgear and lighting devices, as well as in ordinary residential premises as electrical wiring, and is widely used in suburban construction. It is not recommended to lay the cable in the ground, as it lacks armored protection, so it can only be laid with mechanical protection.¶Construction¶Conductors are aluminum, single-conductor or multi-conductor (class 1, 2 of DSTU EN 60228).¶Insulation and sheath - polyvinyl chloride plastic.¶Operation¶The cable is designed for stationary operation at ambient temperatures from -50°C to +50°C, relative humidity up to 98% at temperatures up to 35°C, including outdoor installation.¶The cable can be laid without preheating at a temperature not lower than -15°C.¶The minimum bending radius during installation must be at least 10 times the outer diameter of the single-core cable and 7.5 times the outer diameter of the stranded cable.¶The long-term permissible heating temperature of the cable cores during operation is 70°C and the maximum permissible temperature at short-circuit currents is 160°C. Permissible heating of the cable conductors in emergency mode is not more than 80°C
