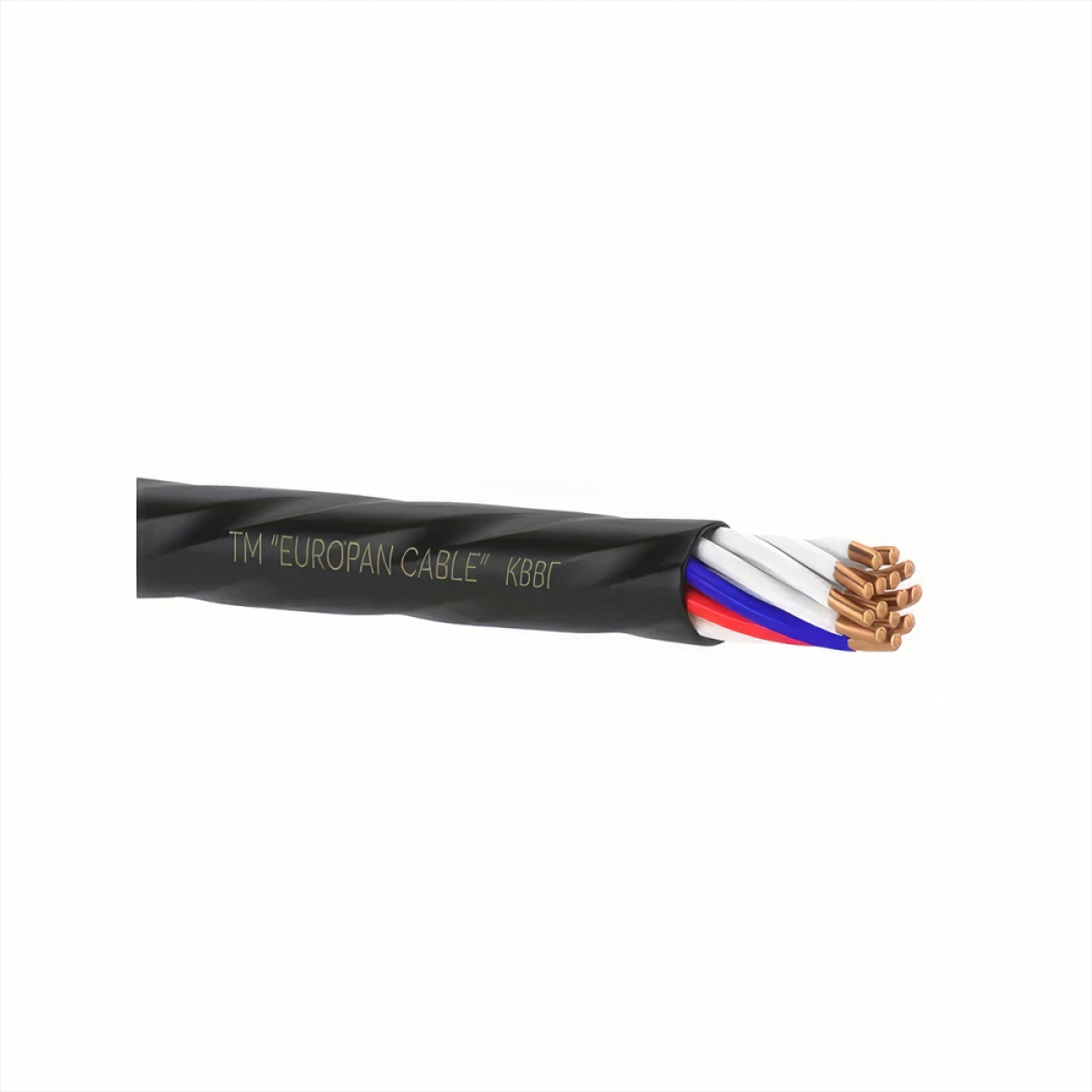

Cable AKVVG 19x2.5 control EUROPAN CABLE (894)

Description

Cable AKVVG 19x2.5 control EUROPAN CABLE AKVVG – Control cable with aluminum conductors, polyvinyl chloride insulation and sheath. Scope Designed for fixed connection to electrical devices, apparatus, terminal assemblies of electrical switchgear with a rated AC voltage of up to 660 V, frequency of up to 100 Hz or DC voltage of up to 1000 V. Used for laying in rooms, channels, tunnels, in aggressive environments, in the absence of mechanical effects on the cable. The cable can be laid outdoors provided that it is protected from mechanical damage and direct sunlight. Cable laying in the ground (trenches) is allowed provided that the cable is protected at the points of exit to the surface. Design Current-conducting conductors - aluminum, single-wire (class 1 DSTU EN 60228). Insulation and sheath – polyvinyl chloride plastic compound. Operation The cable is intended for stationary operation at ambient temperatures from -50°C to +50°C, relative humidity up to 98% at temperatures up to 35°C, including for laying outdoors. The cable can be laid without preheating at temperatures not lower than -15°C. The minimum bending radius during installation must be at least 6 times the outer diameter of the cable. The continuous permissible heating temperature of the cable cores during operation is 70°C.
