Cable KVVGE 4x1.0 control EUROPAN CABLE (2348)

Description

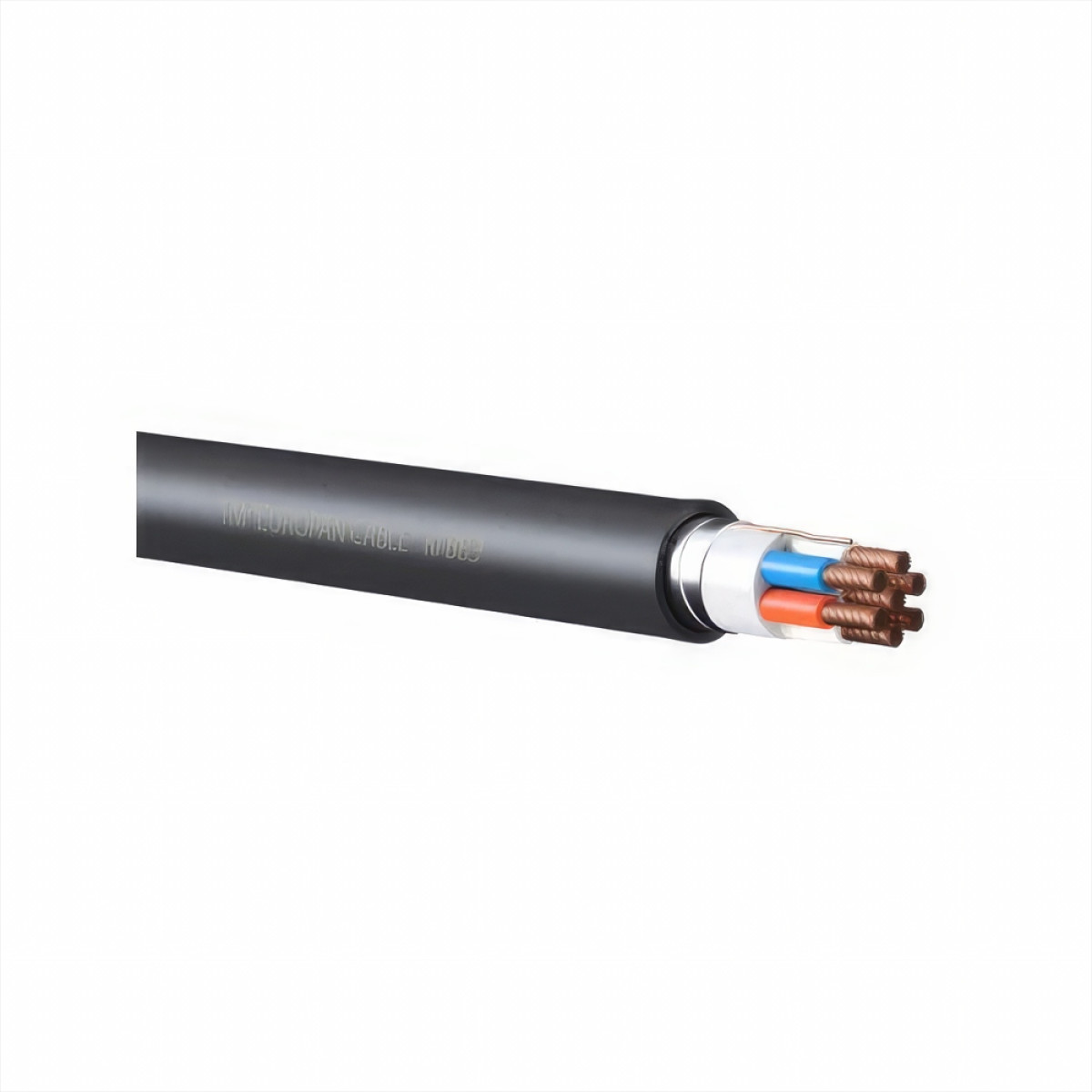

Cable KVVGE 4x1.0 control EUROPAN CABLE. KVVGE – Control cable with copper conductors, polyvinyl chloride insulation, general aluminum foil screen and polyvinyl chloride sheath. Scope Intended for fixed connection to electrical devices, apparatus, terminal assemblies of electrical switchgear with a rated AC voltage of up to 660 V, frequency of up to 100 Hz or DC voltage of up to 1000 V. Used for laying in rooms, channels, tunnels in the absence of mechanical effects on the cable in aggressive environments and the need to protect electrical circuits from the effects of external electric fields. The cable can be laid outdoors provided that they are protected from mechanical damage and direct sunlight. Design Current-conducting conductors - copper, single-wire (class 1 DSTU EN 60228). Insulation – polyvinyl chloride plastic compound. General screen made of aluminum foil. Outer sheath – polyvinyl chloride plastic compound. Operation The cable is intended for stationary operation at ambient temperatures from -50°C to +50°C, relative humidity up to 98% at temperatures up to 35°C, including for laying outdoors. The cable can be laid without preheating at temperatures not lower than -15°C. The bending radius of the cable when laid at ambient temperatures not lower than 0°C is not less than: - three cable diameters – for cables with an outer diameter up to 10 mm inclusive; - four cable diameters – for cables with an outer diameter over 10 to 25 mm inclusive; - six cable diameters – for cables with an outer size over 25 mm. The permissible heating temperature of the cable cores during operation is 70°C. The service life of the cable is at least 20 years when laid in the ground (trenches) and on overpasses, provided that it is protected from direct sunlight, and 25 years when laid indoors, in canals and tunnels.
