Cable PV1 with/with 6 EUROPAN CABLE (51709)

Description

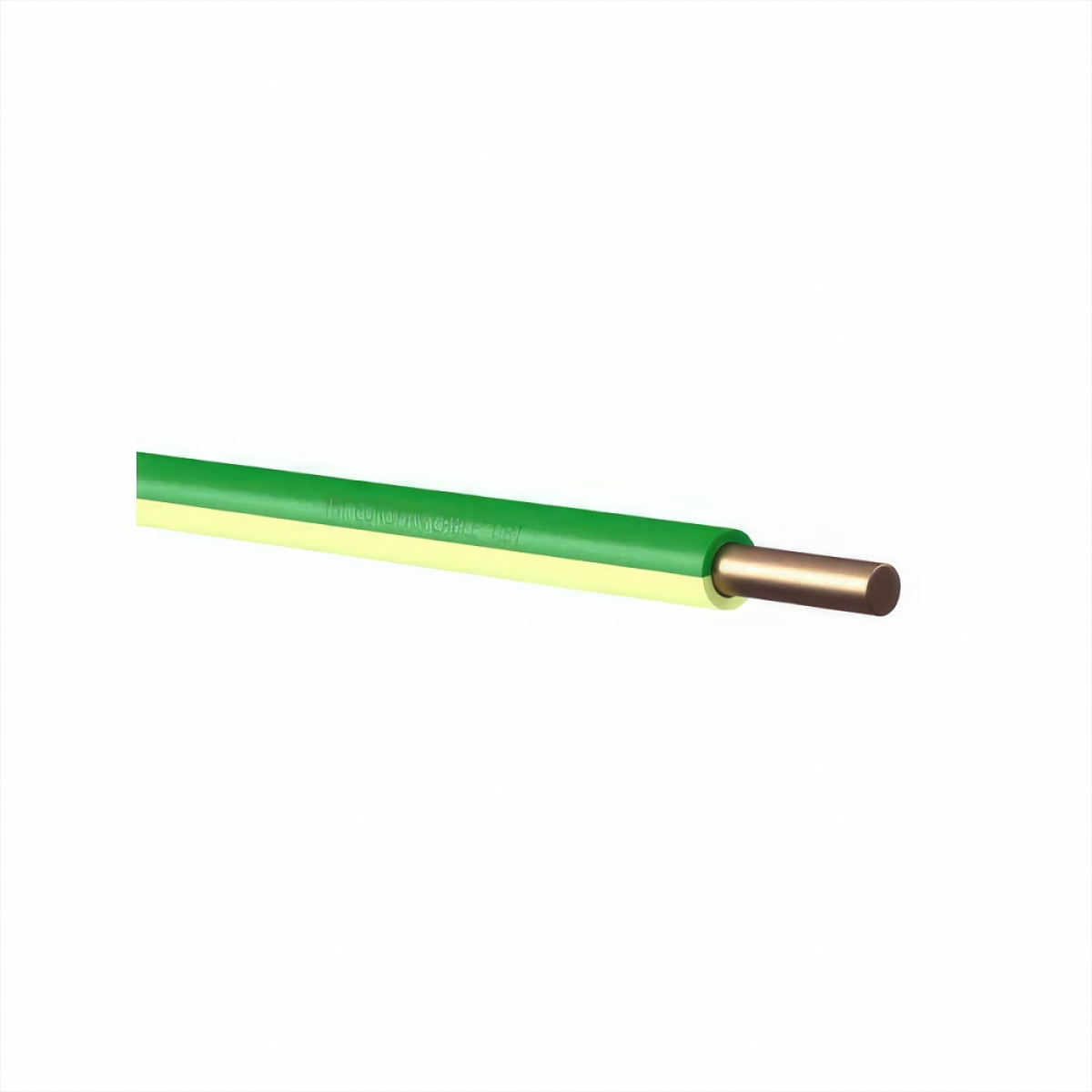

PV1 – copper conductor wire with polyvinyl chloride insulation. Scope Intended for electrical installations during stationary laying in lighting and power networks, as well as for installation of electrical equipment, machines, mechanisms and machine tools for a nominal voltage of up to 450 V (for networks up to 450/750 V) with a frequency of up to 400 Hz or a constant voltage of up to 1000 V. Used for laying in steel pipes, hollow channels of building structures, on trays, for installation of electrical circuits, for installation of lighting networks indoors, for laying power lines that are not subject to movement. If it is necessary to perform external wiring, it is necessary to use trays, boxes, cable channels that protect the wire from mechanical damage and ultraviolet radiation. Construction Conductor cores – copper, single-wire or multi-wire (class 1, 2 DSTU EN 60228). Core insulation made of polyvinyl chloride plastic. Operation The wire is designed for operation at ambient temperatures up to -50°C, relative humidity up to 100% at temperatures up to 35°C. The wire can be laid without preheating at temperatures not lower than -15°C. The minimum bending radius during installation must be at least 10 times the outer diameter of the wire. The permissible continuous heating temperature of the wire cores during operation is 70°C.Cable PV1 with/with 6 EUROPAN CABLE
