Cable PV3 white 1 EUROPAN CABLE (938)

Description

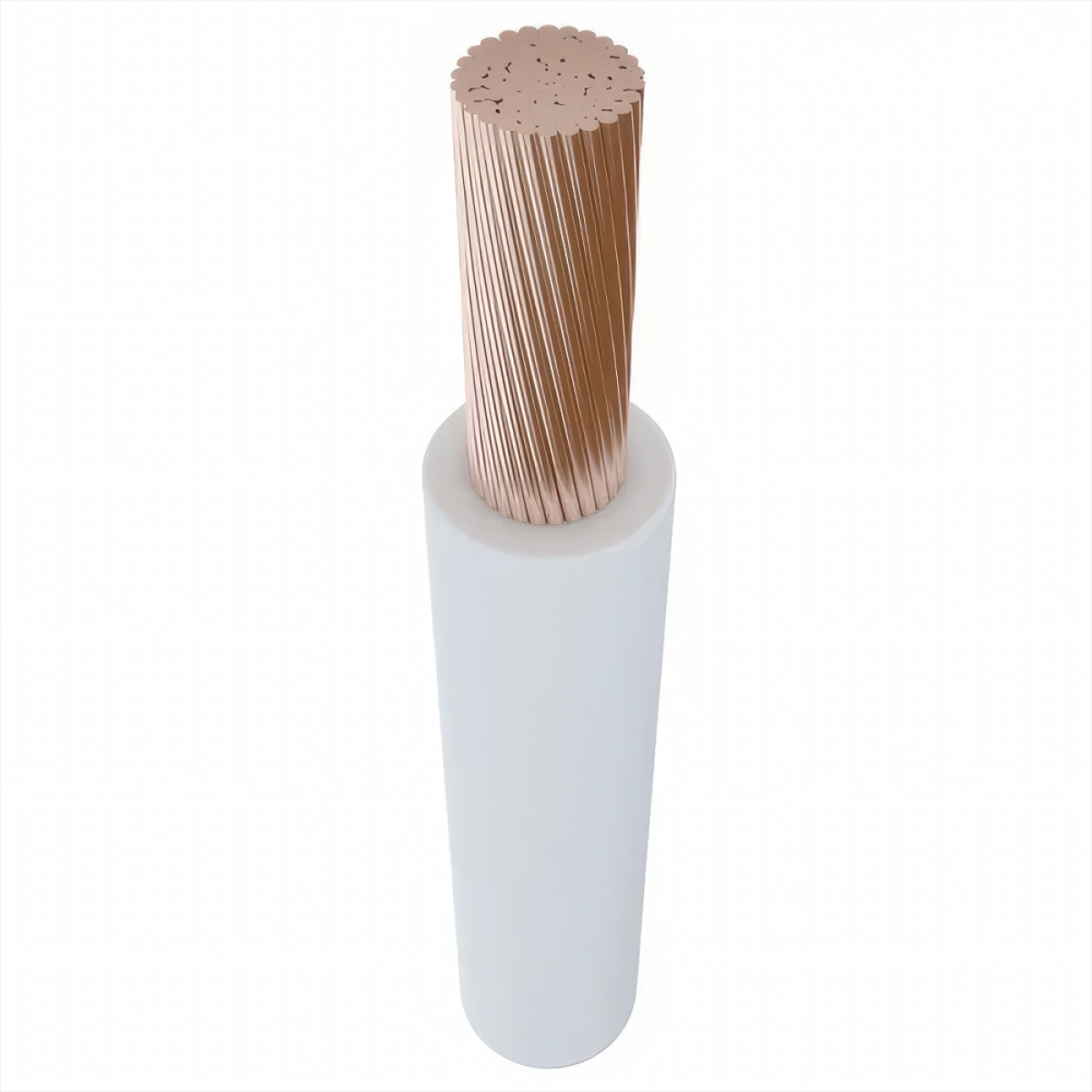

Wire PV3 white 1 EUROPAN CABLE (938)¶¶PV3 is a copper-core wire with polyvinyl chloride insulation of increased flexibility.¶Field of application¶It is intended for electrical installations for stationary installation in lighting and power networks, as well as for the installation of electrical equipment, machines, mechanisms and machine tools for rated voltage up to 450 V (for networks up to 450/750 V) with a frequency of up to 400 Hz or a DC voltage of up to 1000 V.¶It is used for the installation of electrical circuits where wire bends are possible; it is used in all areas of production, industry, and wiring installation. If it is necessary to perform external wiring, it is necessary to use trays, boxes, cable channels that protect the wire from mechanical damage and ultraviolet radiation.¶Construction¶The conductors are copper, stranded (class 5 of DSTU EN 60228).¶Insulation of conductors is made of polyvinyl chloride plastic.¶Operation¶The wire is designed for operation at ambient temperatures up to -50°C, relative humidity up to 100% at temperatures up to 35°C.¶The wire can be laid without preheating at a temperature not lower than -15°C.¶The minimum bending radius during installation must be at least 5 times the outer diameter of the wire.¶The long-term permissible heating temperature of the wire conductors during operation is 70°C.
