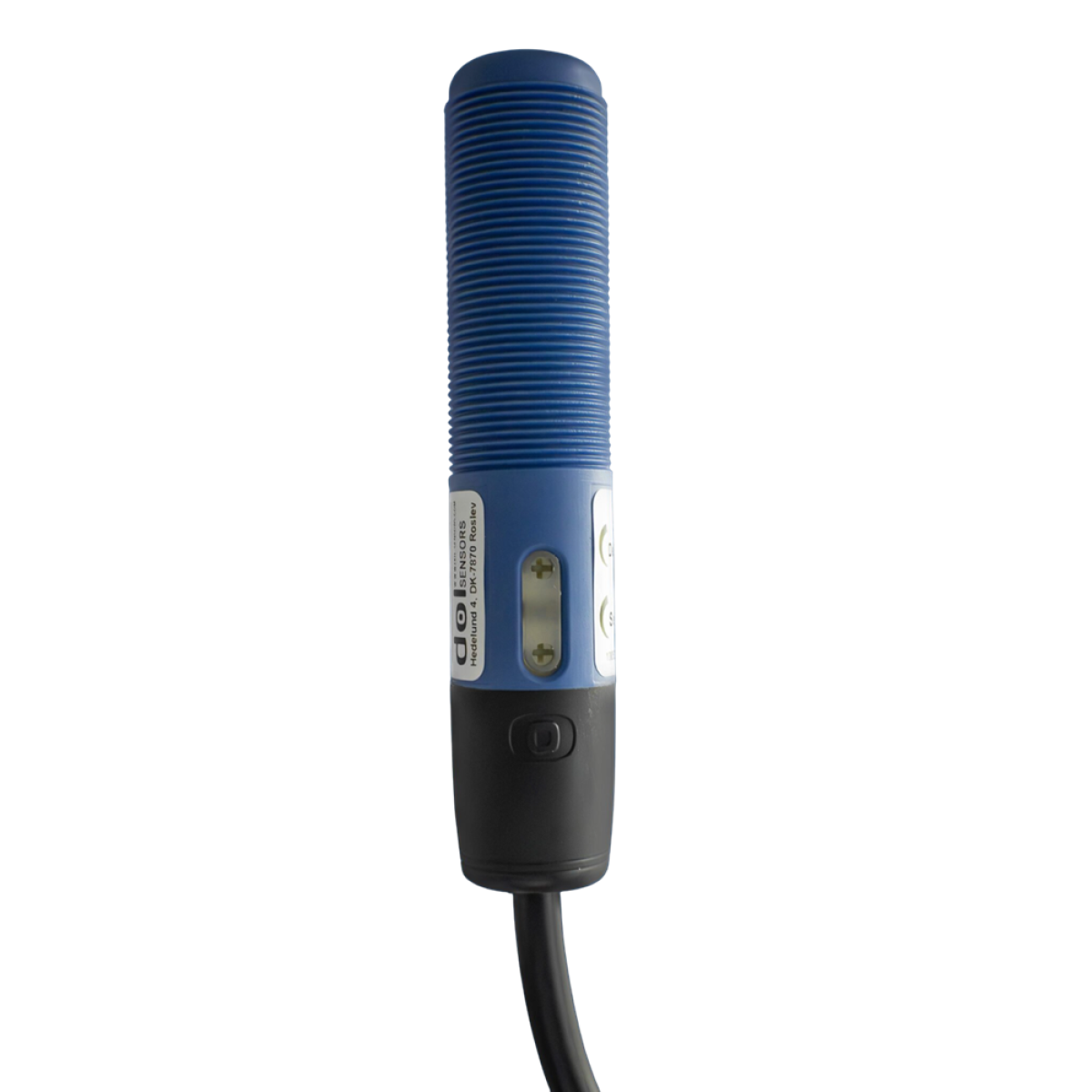

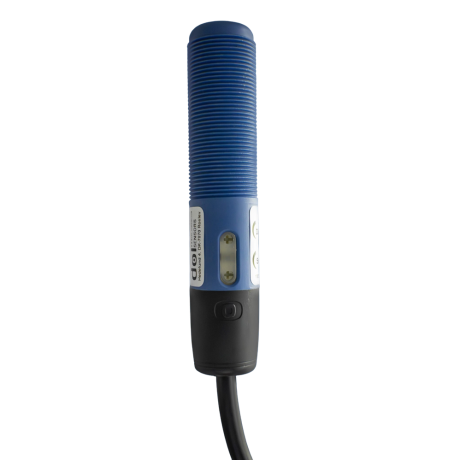

Capacitive sensor, DOL 26, CA-P-M18-NF-CA-SCR-B-0T (105143)
Capacitive sensor, DOL 26, CA-P-M18-NF-CA-SCR-B-0T (105143)
Features
All characteristics
Description
DOL 26 capacitive proximity sensor is a small 18 mm sensor ideal for inclusion in small applications with limited space such as inside feed pans in poultry farms. The sensor can for example help ensure sufficient feed distribution in livestock houses. DOL 26 is immune to EMI, short circuits, and any overload. The sensor comes in an iDOL version with NFC for sensor adjustment via the SmartAdjust App.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Capacitive Level Sensor DOL 26 CA-P-M18-NF-CA-SCR-B-0T (2-wire, NC)
The DOL 26 CA-P-M18-NF-CA-SCR-B-0T is a highly reliable industrial sensor specifically designed for automated feeding systems. This model is housed in a compact M18 body and is ideal for detecting feed and grain levels. With factory-fixed sensitivity (0T), the sensor lacks mechanical trimmers, ensuring long-term stability by eliminating the risk of accidental adjustments or failures caused by vibration.
This version features a thyristor SCR output with a two-wire connection, making it an excellent drop-in replacement for traditional mechanical limit switches. The Break (NC) logic means the circuit remains closed when the pan is empty (keeping the motor running) and breaks upon detecting feed, stopping the loading process. The NF (Non-Flush) design provides an extended sensing field for better detection of light bulk materials.
Mounting
The DOL 26 SCR sensor is installed in an 18 mm diameter mounting hole. Since it is a Non-Flush (NF) type, the sensing head must protrude into the bin and remain clear of metal side walls to prevent false detection. The unit is secured using the two plastic nuts provided. Because the 0T model is factory-calibrated, no further adjustment is needed—simply connect the cable in series with the load (relay or contactor coil) according to the SCR wiring diagram.
Technical Specifications (0T-SCR)
| Parameter | Value |
|---|---|
| Output Type | SCR (2-wire thyristor) |
| Operating Logic | NC (Normally Closed / Break) |
| Adjustment (0T) | Factory Fixed |
| Housing / Rating | M18 / IP69K |
| Supply Voltage | 20 – 280 V AC/DC |
DOL 26 SCR-B-0T — ultimate reliability for professional farming automation.
