Capacitive sensor VC12RTM2410M, VVM (VAD12005-24V)
Capacitive sensor VC12RTM2410M, VVM (VAD12005-24V)
Features
All characteristics
Description
Sensor with on-delay function for a wide voltage range.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"

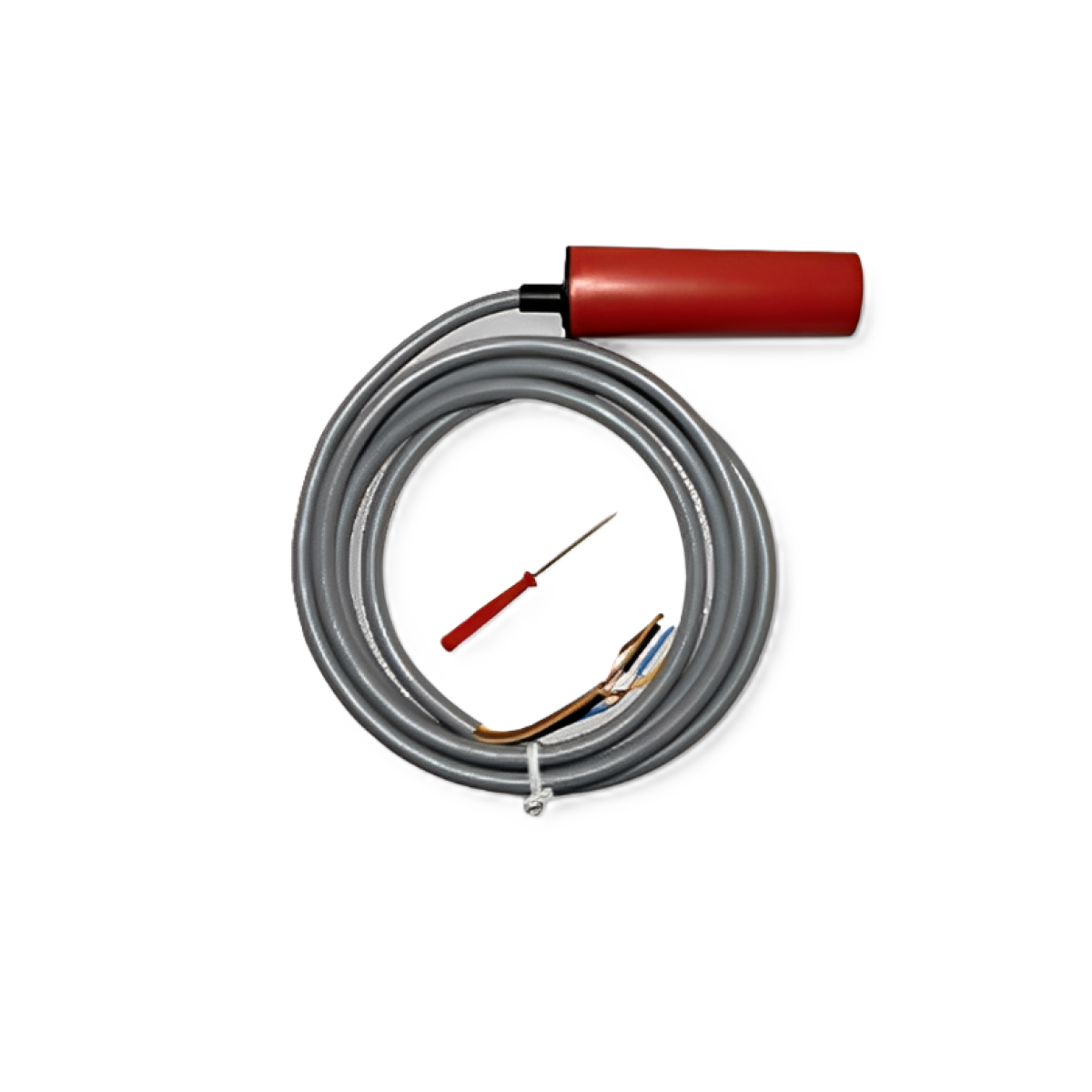

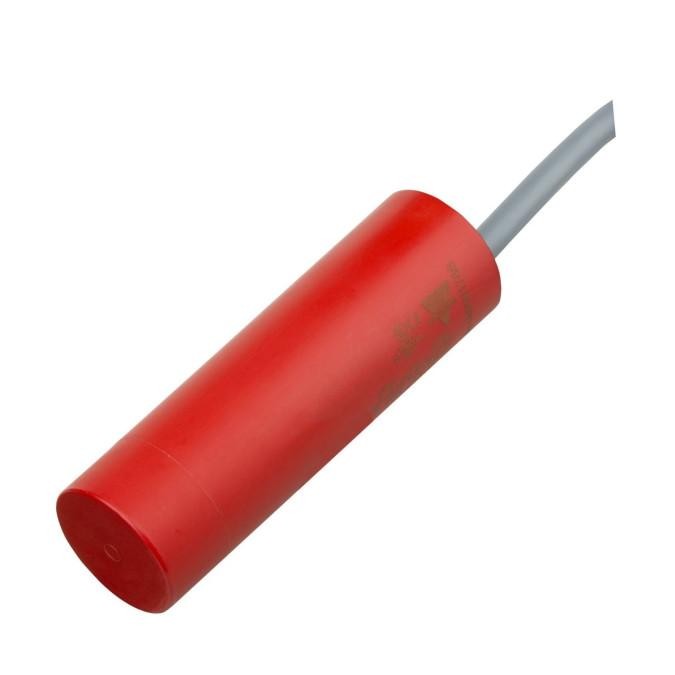

Capacitive Relay Sensor VC12RTM2410M with Timer (24–230V AC/DC)
The VC12RTM2410M is a heavy-duty industrial capacitive sensor designed for the automated level control of bulk materials, grains, and feed in hoppers and silos. This model stands out for its versatility due to its multi-voltage power supply, allowing the device to be connected to any network within the 24–230V AC/DC range. It is a reliable component for automation systems requiring high detection accuracy in demanding operating environments.
The primary advantage of the VC12RTM2410M is its built-in adjustable OFF-delay timer (0–10 min) and precise sensitivity calibration. This allows for optimization of the feeding system by avoiding frequent short-term triggers caused by vibrations or uneven material settling. The device is equipped with a high-capacity relay output, enabling direct control of power contactors without the need for additional intermediate relays.
Mounting
The VC12RTM2410M sensor is mounted in a standard hole using its M30 threaded body, ensuring a secure mechanical fit. For installation on plastic hoppers, it is recommended to use the included heavy-duty nuts or specialized mounting flanges for external placement. Thanks to its high-grade environmental sealing and fully encapsulated electronics, the device is resistant to dust and moisture, ensuring stable operation even under constant vibrations from auger conveyors.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 24 – 230 V AC/DC (50/60 Hz) |
| Output Type | Relay (SPDT changeover contact) |
| Time Delay | Adjustable (1 sec to 10 min) |
| Sensing Distance | Adjustable (4 – 12 mm) |
| Protection Rating | IP67 (Sealed housing) |
Relay Output Logic
| Contact Type | Status with Feed Presence | Application |
|---|---|---|
| NC (Break) | Opens | Stopping the loading line. |
| NO (Make) | Closes | Full container alarm. |
VC12RTM2410M — reliability and precise control in every feeding cycle.
