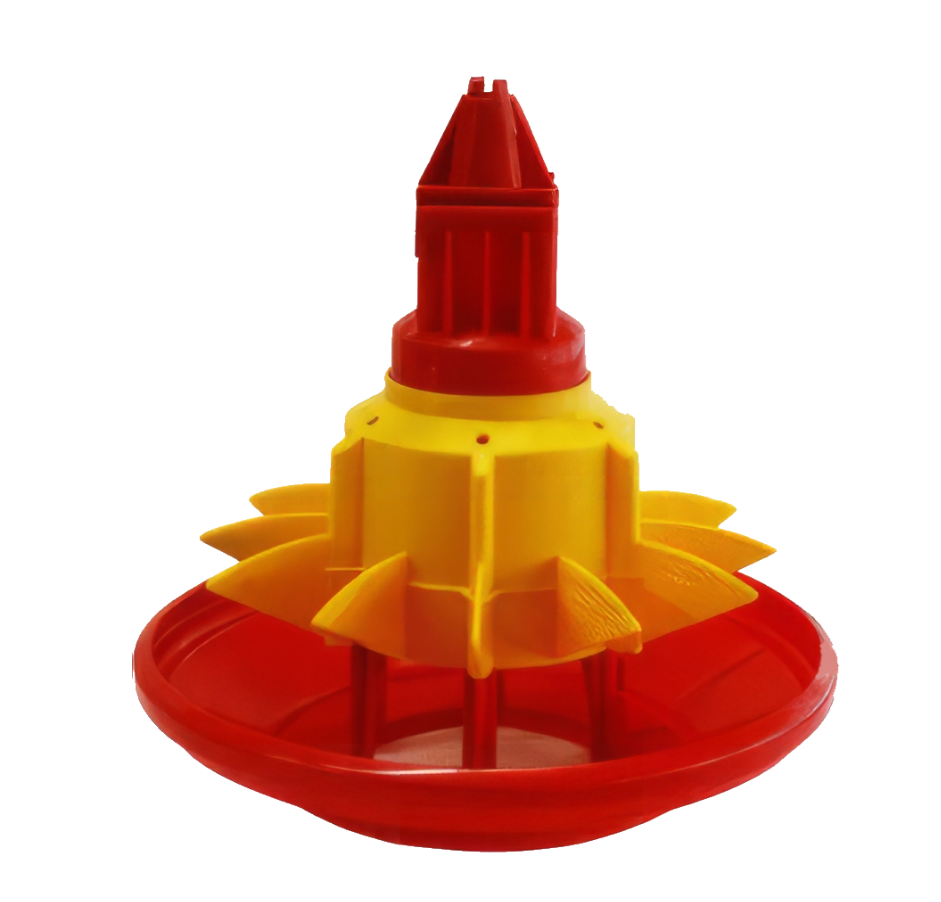

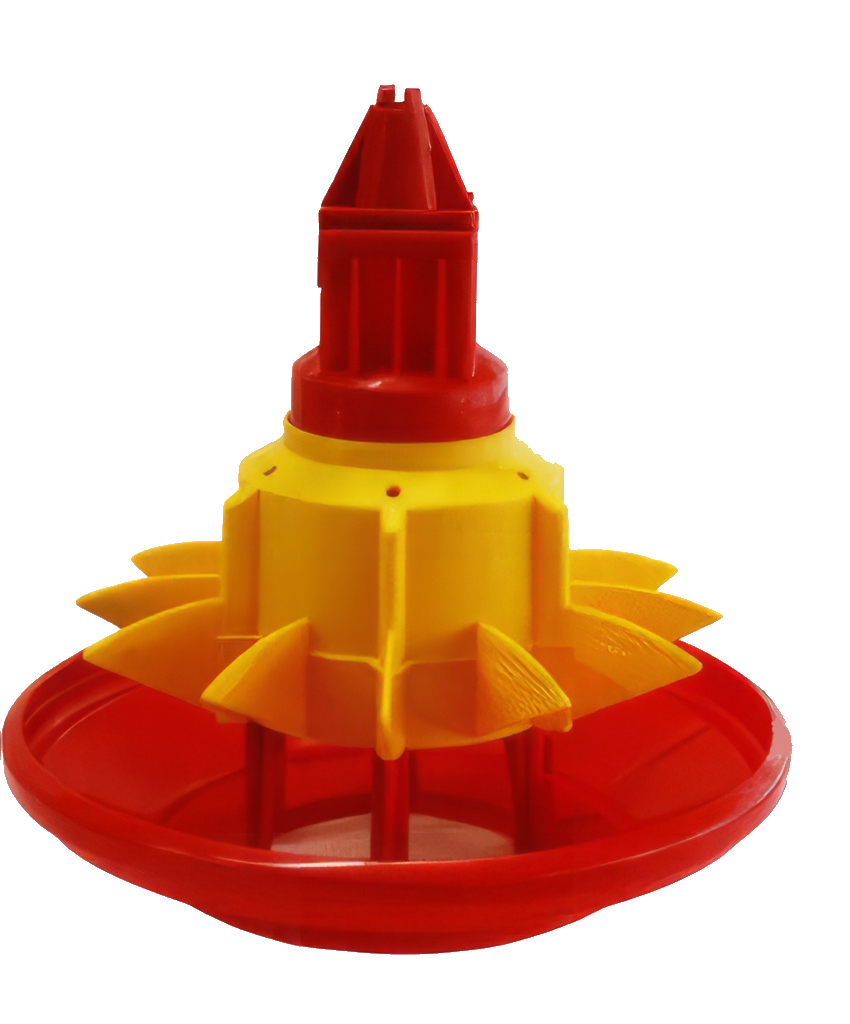

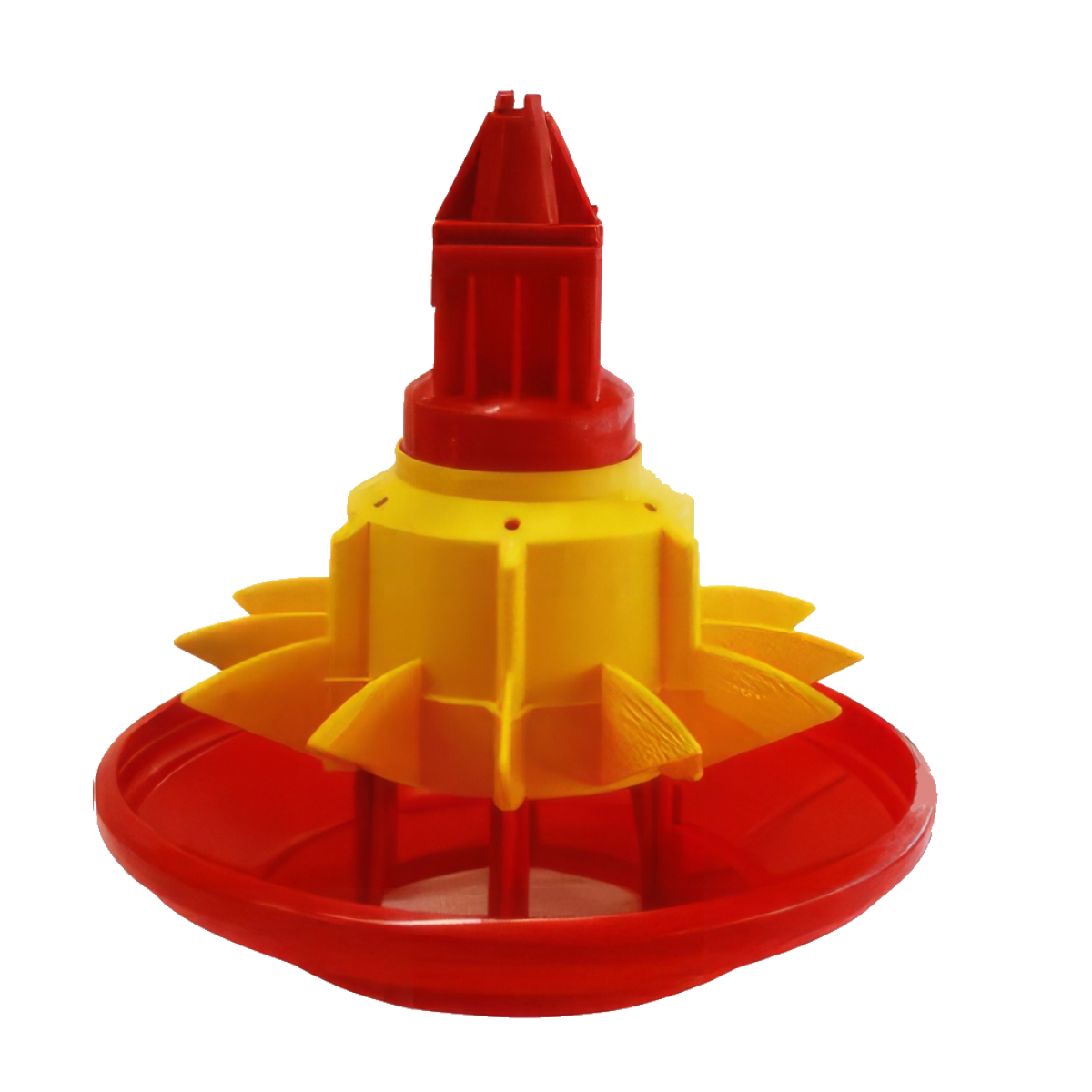

Codaf GioT/F 12-section bird feeder, low cone (CDF037/B12)

The Gio T/F automatic broiler feeder for 12 sections (low cone) CODAF Italy

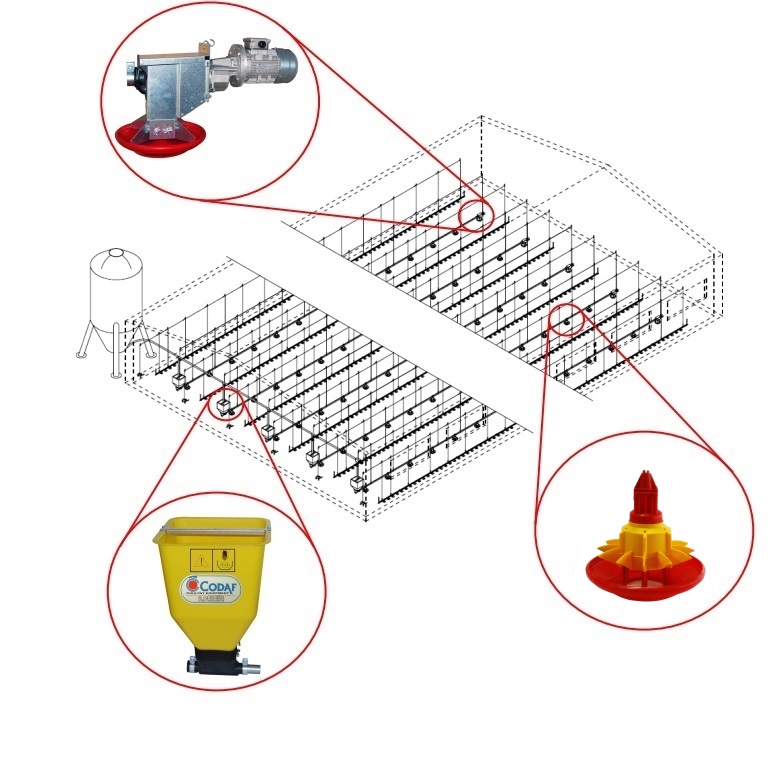

Feeder is designed to fulfil all modern technological and veterinary requirements. It is ergonomically designed to achieve excellent feeding results from early age to slaughter. The material from which the feeder is made is resistant to sunlight, active cleaning and disinfecting agents and mechanical damage. As it is a high quality environmentally friendly and durable plastic. The feeder is installed in automatic feed distribution systems and is compatible with Ø 45 mm pipes. Feeding of dry fodder is done in a one-way way. From the external hopper to the hoppers (intermediate hoppers), which are located in the house. A screw conveyor, with rotary movements made by an electric motor, delivers the feed to the feeders. The motor is automatically driven by a feed sensor, which is fitted to all feeding lines. As soon as the amount of feed in the troughs decreases, the sensor is activated and the troughs are filled again. Feeding stops when the control trough is full, so the sensor is able to keep the troughs full independently. The feed limit mechanism ensures that the feeder is filled to a high level, then it automatically closes and the feed level is reduced. This reduces feed loss to an absolute minimum. The paddles attached to the outer cylinder of the feeder serve as an additional measure to prevent feed loss, as they significantly reduce the amount of feed that is thrown sideways by the birds. The feeder line is mounted on a steel cord and can be freely raised and lowered by means of a suspension system, allowing farmers to operate the entire feeding line in a single movement.

Advantages:

• Significant reduction in feed loss in young and adult poultry;
• the ability to distribute the feed level to the feeders according to the growth of the birds, in a single movement along the entire feeding line;
• large feeding space creates optimal comfort for eating;
• the feeder has a high rim, which eliminates scattering and scattering of feed by chickens;
• allows you to increase planting density without adding feeding lines;
• feeders can be easily cleaned with high pressure water;
• feeder material is resistant to UV light, all detergents and disinfectants.

Automatic feeder for broilers Gio T/F on 12 sections (low cone) CODAF Italy is installed on poultry farms equipped with automatic feed distribution. It allows to improve the quality of feeding of birds, thus increasing productivity.
