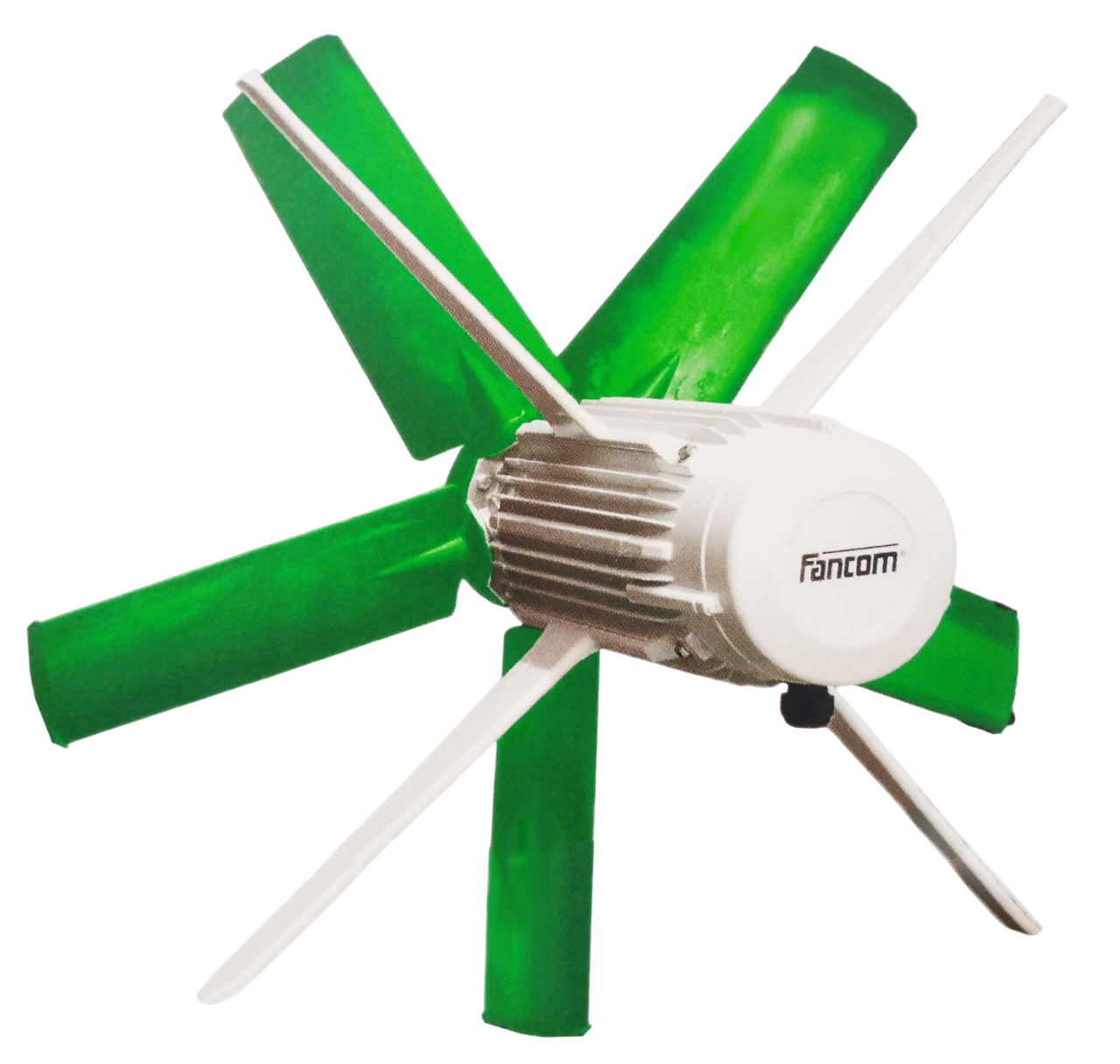

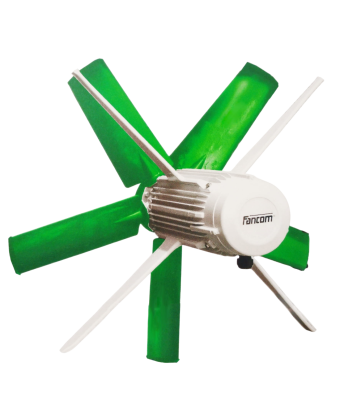

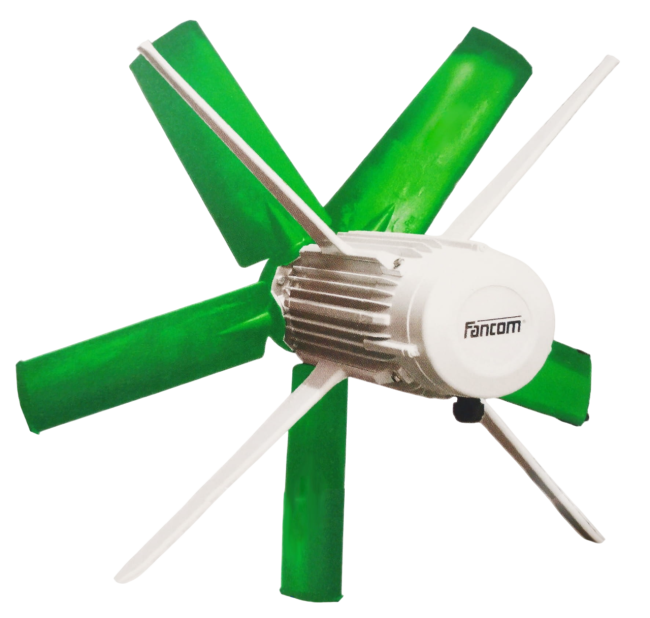

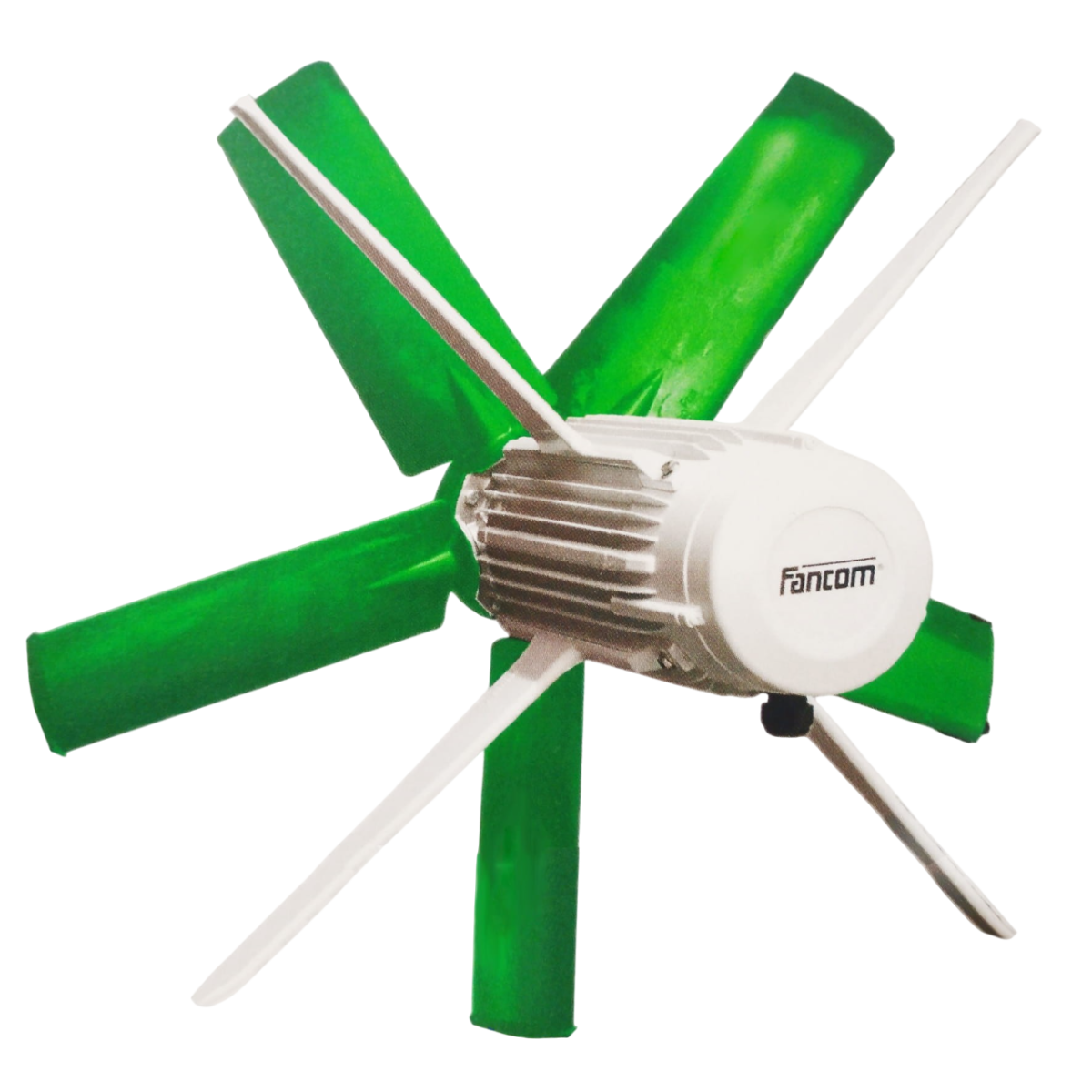

Fancom 3663 fan for installation in the chimney (FA35301002)

Fancom 3663 fan for installation in the chimney (FA35301002)

Check availability
Article: FA35301002
Write a review
78 519 ₴

Features

Brand
Color
Green
Current strength, A
1.4 A
Diameter, see
63
Engine speed
931
Noise level, (dB(A))
67

Description

Professional agricultural fan Fancom (three-phase, diameter 63 cm) - for installation in the chimney The reliable Fancom fan has an aluminum motor housing, plastic or steel edges with coating and plastic blades. Therefore, it is not subject to corrosion and aggressive substances. It is extremely durable, and the motor tightness class is IP 66 (which means a high level of safety). It combines high air consumption with low energy consumption and reduced noise levels. Thus, it is a saving for you and extends the service life of the fan. Diameter: 63 cm Voltage: Y400 230 V Frequency: 50 Hz Motor speed: 931 Current: 1.4 A. Axial power: 517 W Power: 687 W Noise level (0 Pa, 2 m): 67 dB (A) Noise level (0 Pa, 7 m): 56 dB (A) Controls: Frequency driver Max. Performance: 14180 m3/h Measurements were carried out under conditions of 50 Pa, 20 ° C and air density of 1.2 kg / m3.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

Features Fancom 3663 fan for installation in the chimney (FA35301002)

Color
Green
Current strength, A
1.4 A
Diameter, see
63
Engine speed
931
Noise level, (dB(A))
67

Reviews (0)

There are no reviews for this product.

Buy together with Fancom 3663 fan for installation in the chimney (FA35301002)

Specification Fancom 3663 fan for installation in the chimney (FA35301002)

Color
Green
Current strength, A
1.4 A
Diameter, see
63
Engine speed
931
Noise level, (dB(A))
67
Number of phases
3
Power, W
687
Producing country
Netherlands
Productivity
14180 m3/h
Protection level
Ip66
Rated operating voltage (VAC)
230/400

Fancom 3663 fan for installation in the chimney (FA35301002)

78 519 ₴

Reviews Fancom 3663 fan for installation in the chimney (FA35301002)

There are no reviews for this product.

Leave feedback

Fancom 3663 fan for installation in the chimney (FA35301002)

78 519 ₴

Questions Fancom 3663 fan for installation in the chimney (FA35301002)

There are no reviews for this product.

Ask a question

Fancom 3663 fan for installation in the chimney (FA35301002)

78 519 ₴
