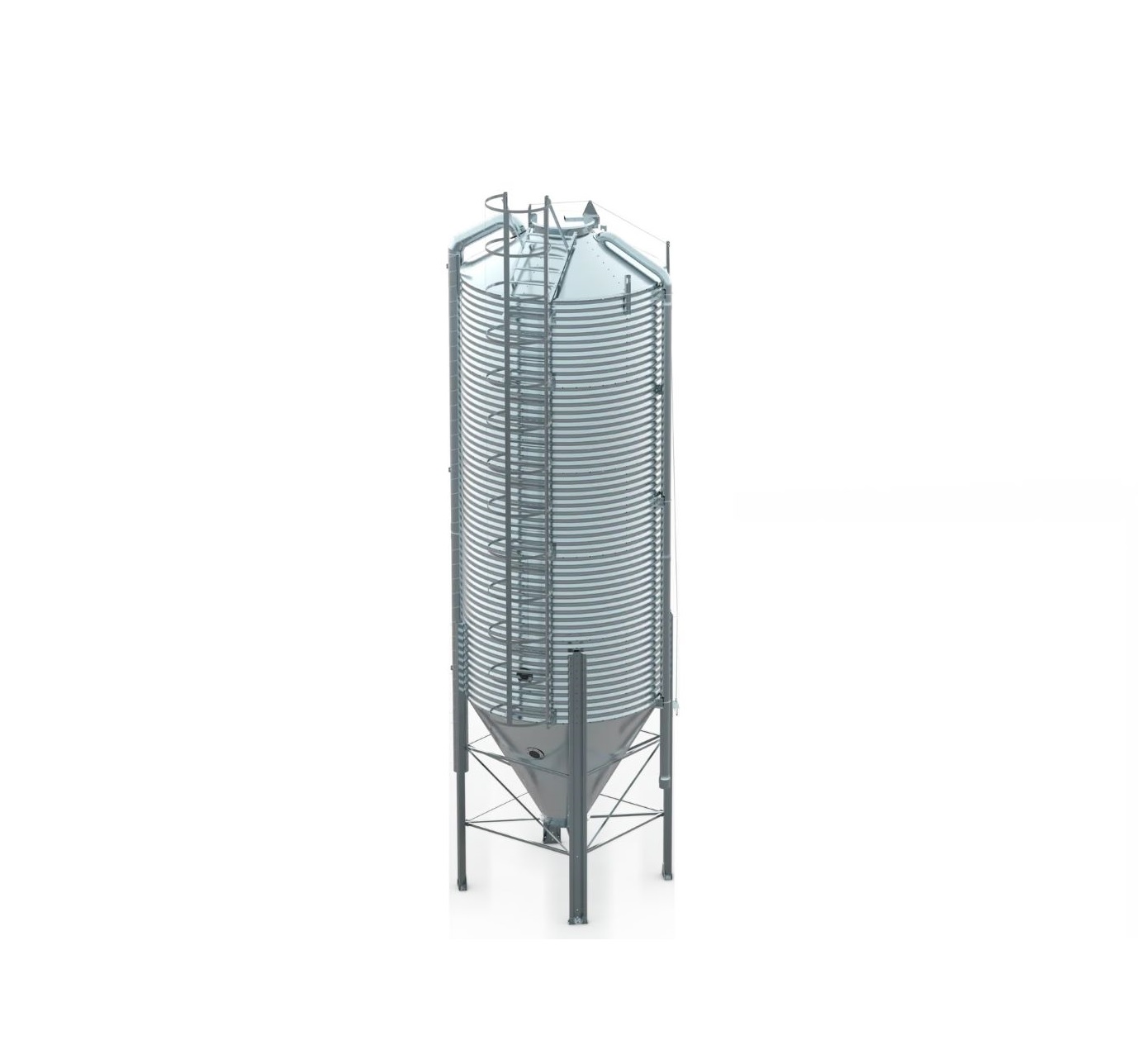

Galvanized feed hopper Polnet 18.3 cubic meters (210-5)

Description

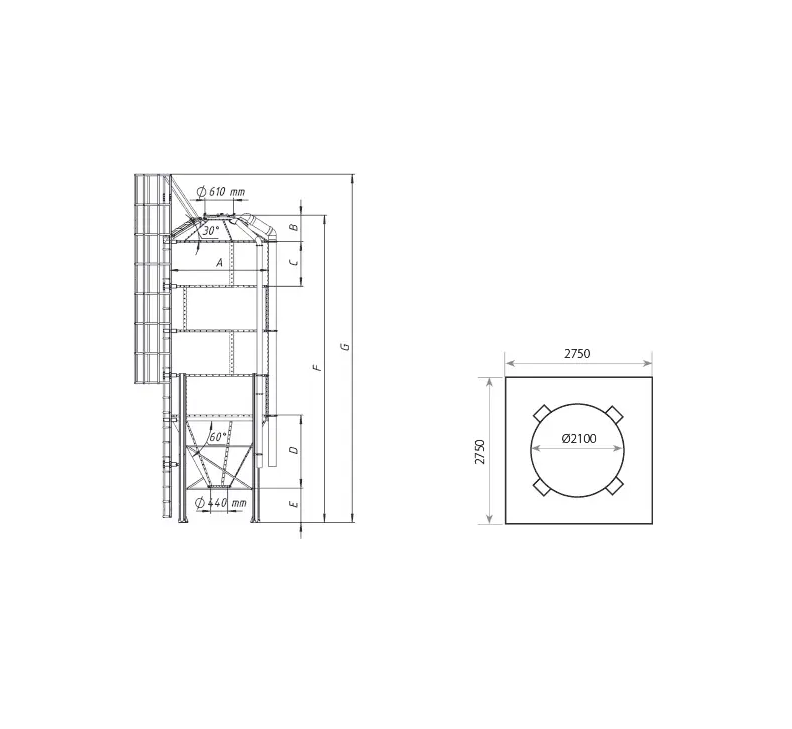

Diameter 2.1 m; Capacity 18.3 m3; Feed capacity 10.2 t. The feed hopper is intended only for loading feed with a maximum density of up to 650 kg/m3. have a perfect vertical position and must be located in a polygon with equal sides and diagonals. Filling is reduced. Devices that are installed under the cone (between the cone and the floor) cannot be tightly installed, but have telescopic connections with a step of at least 1 cm. Feed hoppers in standard design are intended for installation on load cells with a thick and rigid upper clamping plate. Feed hoppers in standard design are not intended for installation on forwarding and travel structures, since their design does not provide dynamic gravitational unloading. using additional wooden or metal brackets/reinforcements for the legs described in the instructions.
