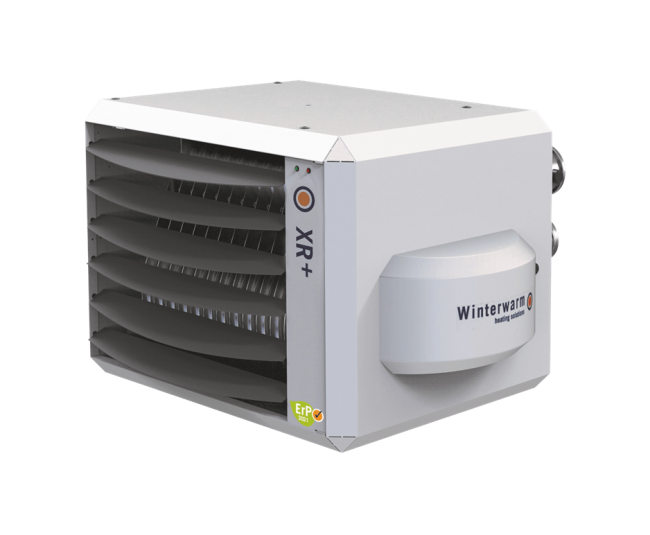

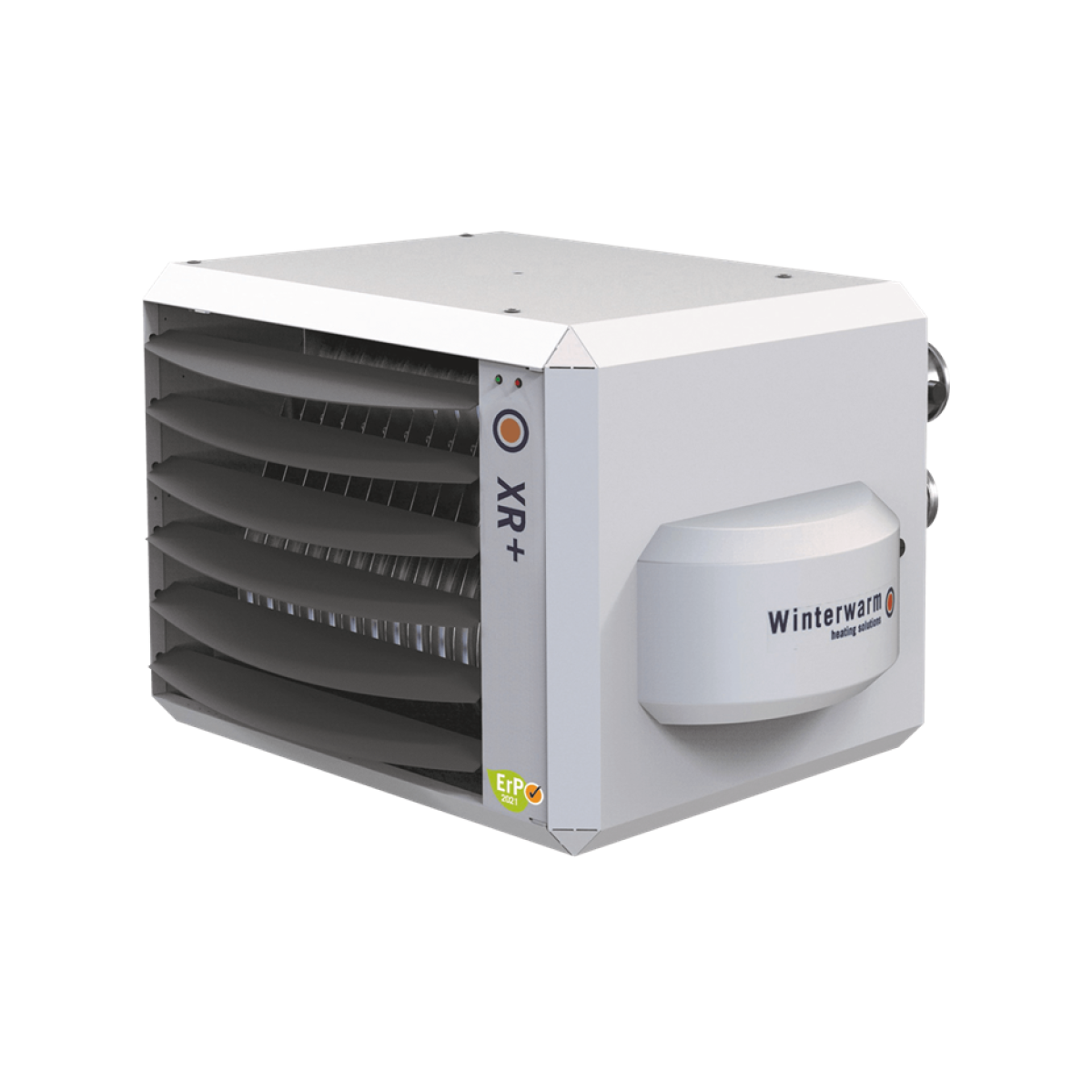

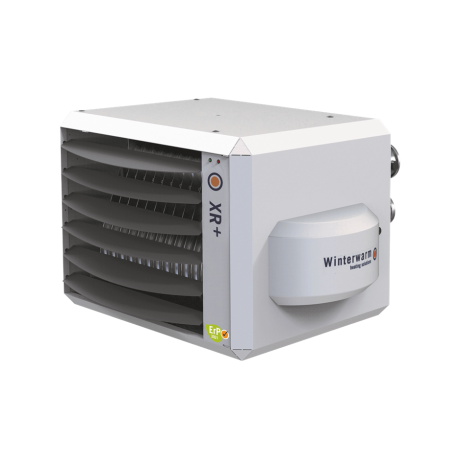

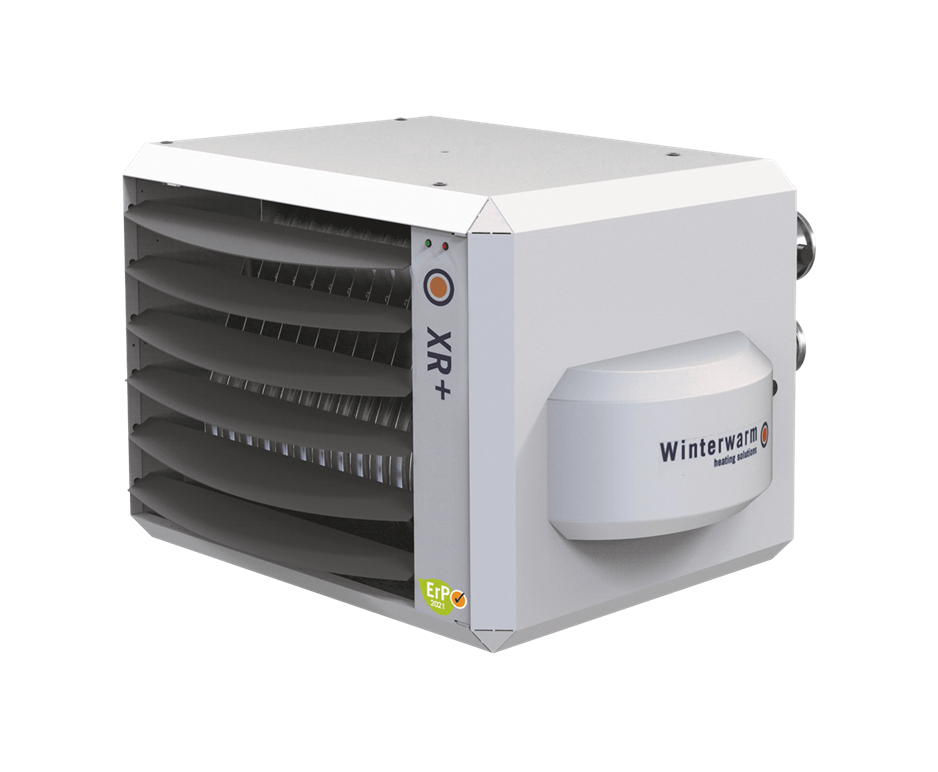

Gas heater Winterwarm HR XR+series, pr.gas (XR 10+)

Description

The Winterwarm XR+ heater is the successor to the standard XR heater, which has been the most popular Winterwarm heater for the past 15 years. It is unique due to its patented stainless steel heat exchanger and attractive design. The compact heaters have proven themselves as a cost-effective solution for heating almost all types of industrial and commercial buildings. The great advantage of the XR+ series is that there is no need to drain the condensate, so the heater can be positioned very flexibly and there is no need to incur additional costs for connecting the condensate drain to the sewer. Improved performance All the positive features of the XR series have been retained (delta T adjustment, modulating fan, horizontal and vertical air discharge option, etc.) and new ones have been added. The air discharge pattern has been improved with the so-called air lift effect, which improves air mixing. The air volume has increased and therefore the discharge distance. The flue connections for the XR 40+, XR 50+ and XR 60+ types have a diameter of 80 mm (previously 100 mm), which is a great practical advantage for the installer. A total of 9 capacities are available, from 10 kW to 120 kW. Features The XR+ models can be hung in any desired position so that the air is discharged horizontally, diagonally or vertically downwards (except for the 80+/120+ models). If the air flow is directed straight down to the floor, the heater works as a roof fan, transporting warm air accumulated under the ceiling downwards. This function prevents heat loss through the roof. Delta T control is standard on each unit, ensuring maximum comfort and an even temperature in the room, resulting in reduced energy consumption.
