RW1000-5-150400386 Ridder (520151)
RW1000-5-150400386 Ridder (520151)
In stock in Europe
Article: 520151
115 275 ₴
Features
Brand
A turning point
1000 Nm
Current frequency, Hz
50
IP protection class
Ip55
Producing country
Netherlands
Supply voltage
400 V
All characteristics
Description

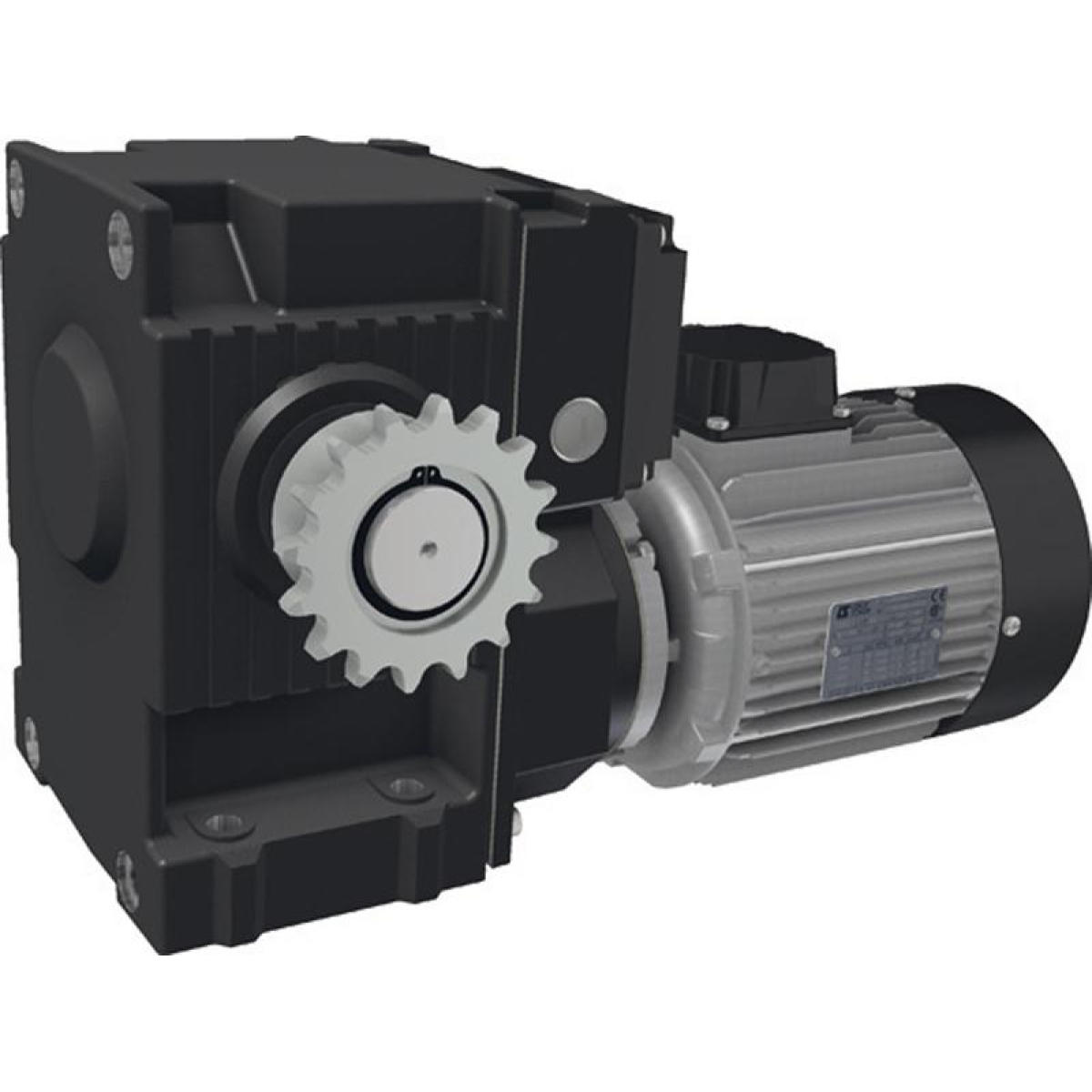

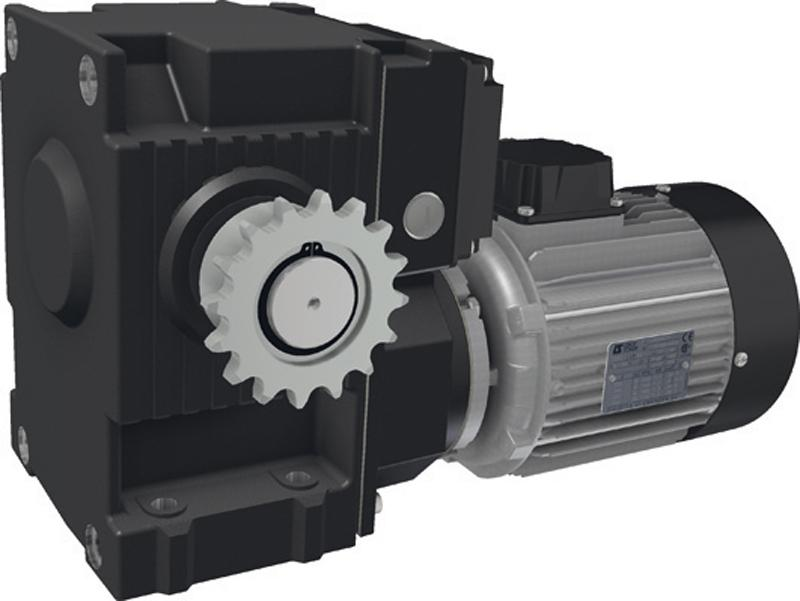

The RW1000/1400 gearmotors are maintenance-free drives for ventilation, curtain and lifting systems in greenhouses and livestock farms. All RW1000/1400 gearmotors are equipped with a self-braking worm gear. This ensures that the drive shaft is locked when the drive is stopped. The combination of the matched one-to-one gears and the worm gear results in a low-noise drive. The RW1000/1400 gearmotors are equipped with a built-in patented linear limit switch RSU with high-precision operating and safety switches. The maximum switching range of the limit switch is 86 revolutions of the drive shaft. With The RPU PositioningUnit (optional) can be used to precisely transmit the position of the actuator to the computer (climate control system). The position can also be transmitted using a separately mounted potentiometer. The RW1000/1400 geared motors are powder coated in graphite and are supplied with mounting bolts and spring washers.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features RW1000-5-150400386 Ridder (520151)
A turning point
1000 Nm
Current frequency, Hz
50
IP protection class
Ip55
Producing country
Netherlands
Supply voltage
400 V
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with RW1000-5-150400386 Ridder (520151)
Specification RW1000-5-150400386 Ridder (520151)
A turning point
1000 Nm
Current frequency, Hz
50
IP protection class
Ip55
Producing country
Netherlands
Supply voltage
400 V
Temperature range
from 0° to 60°C
Weight, kg
56
