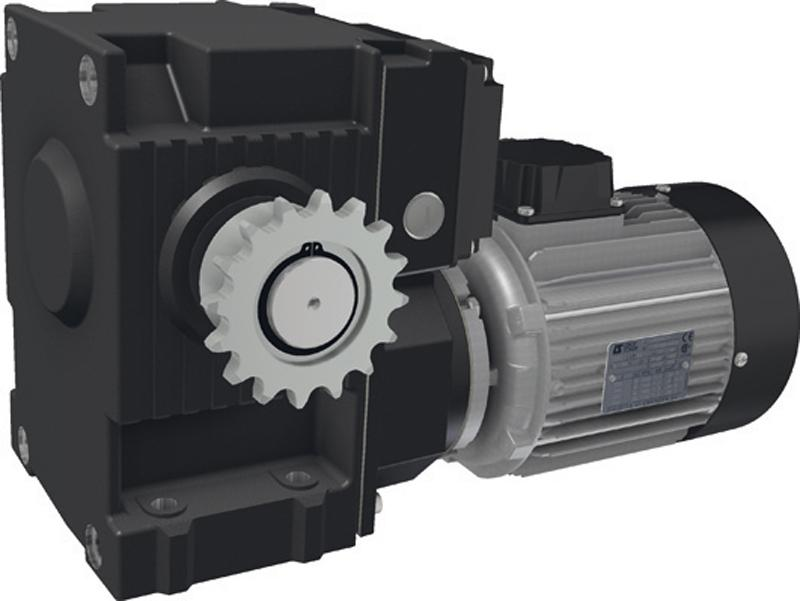

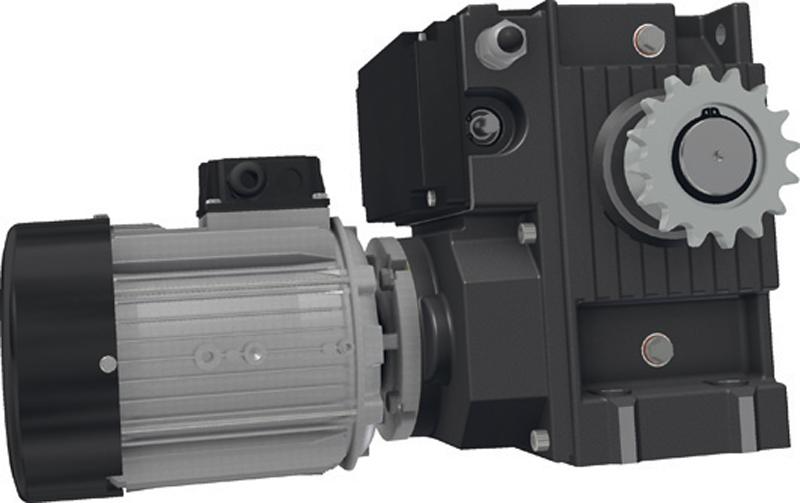

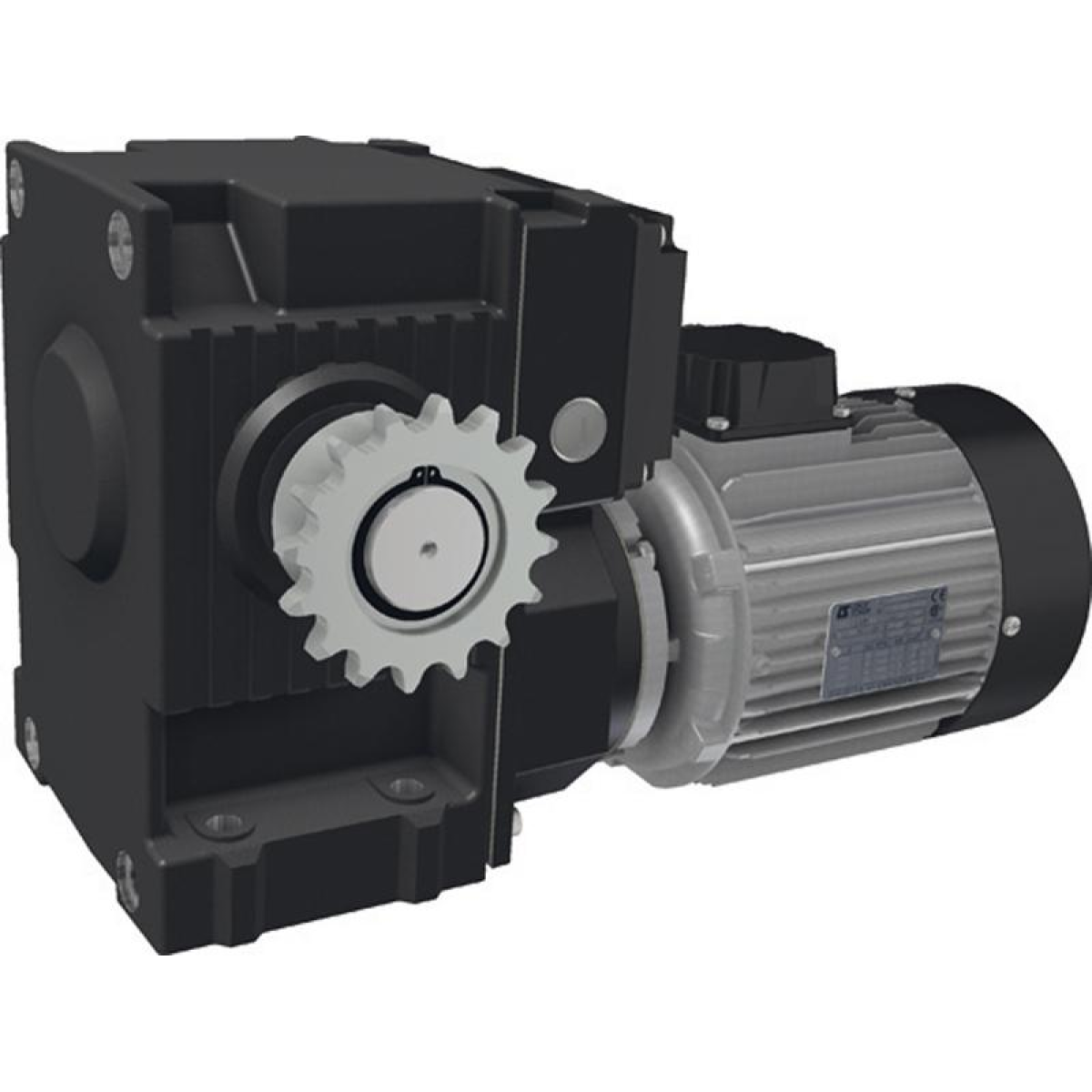

Gear motor RW1000-5-150400386 Ridder (520151P)

Description

The RW1000/1400 motor gearboxes are maintenance-free drive units for operating ventilation, screen and hoisting systems in greenhouses and livestock houses. The RW1000/1400 motor gearboxes are designed to operate at ambient temperatures between 0 and 60 °C.¶All RW1000/1400 motor gearboxes are fitted with a self-braking worm gear transmission . This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of the carefully mutually-tuned gear and wheel transmissions means that the drive runs almost silently.¶The RW1000/1400 motor gearboxes are equipped with a patented inbuilt linear limiting switch system with control and safety switches with a high degree of switch precision. The maximum switching range for the limiting switch system amounts to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller.¶The IP54 RW1000/1400 motor gearboxes are finished with a graphite-grey powder coating and are supplied with locking bolts and washers.
