RW1400-3-150400386 Ridder (520201)

Description

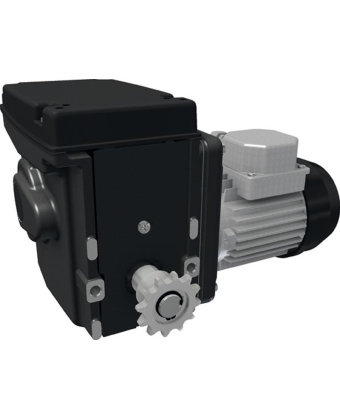

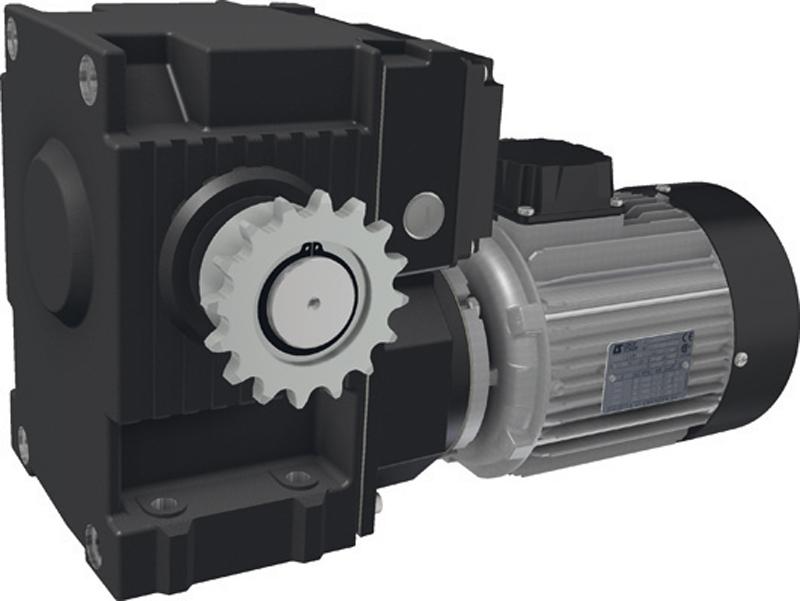

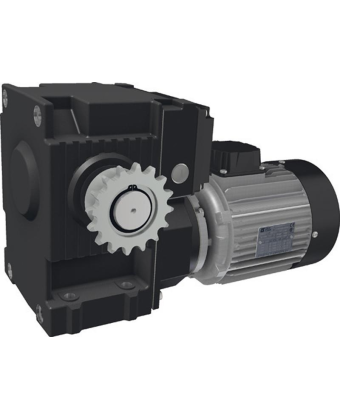

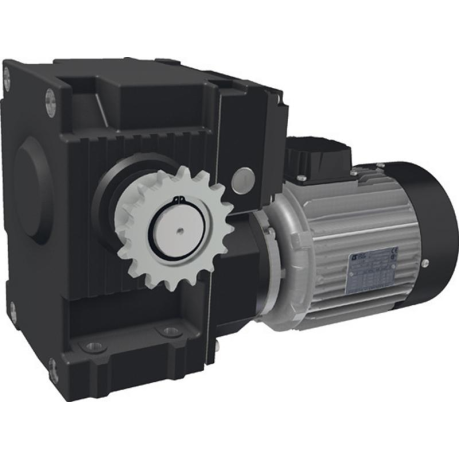

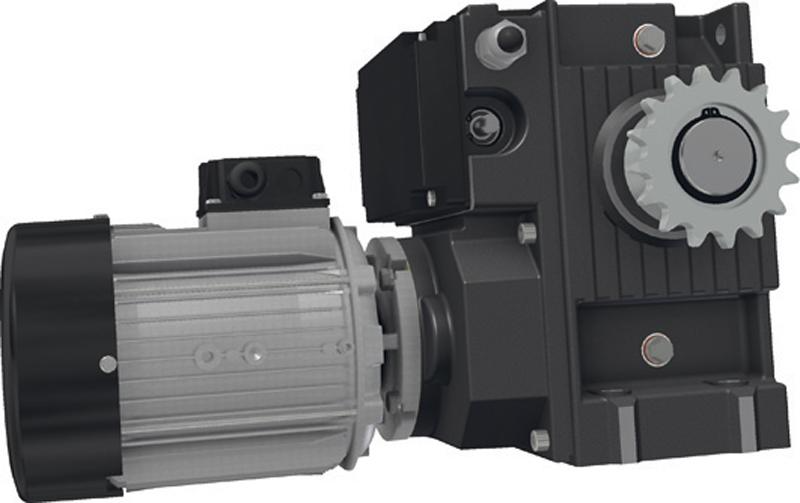

The RW1000/1400 geared motors are maintenance-free drives for ventilation, screen and lifting systems in greenhouses and livestock buildings. The RW1000/1400 geared motors are designed for operation at ambient temperatures from 0 to 60 °C. All RW1000/1400 geared motors are equipped with a self-braking worm gear. This transmission ensures that the output shaft is braked when the drive is stopped. The combination of carefully matched gear and wheel gears means that the drive runs almost silently. The RW1000/1400 geared motors are equipped with a patented integrated linear limit switch system with control and safety switches with high switching accuracy. The maximum switching range for the limit switch system is 86 revolutions of the drive shaft. The optional RPU positioning unit precisely monitors the current position of the drive system and transmits this data back to your climate computer or controller. The IP54 RW1000/1400 gearmotors are graphite grey powder coated and supplied with locking bolts and washers.
