RW1600-3S-150400386 Ridder (520225)
RW1600-3S-150400386 Ridder (520225)
In stock in Europe
Article: 520225
126 870 ₴
Features
Brand
A turning point
1600 Nm
Current frequency, Hz
50-60
Producing country
Netherlands
Supply voltage
400 V
Weight, kg
56
All characteristics
Description

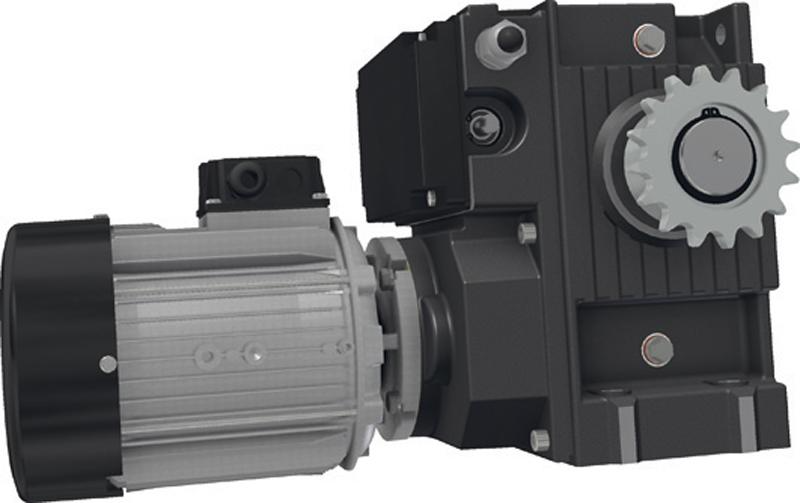

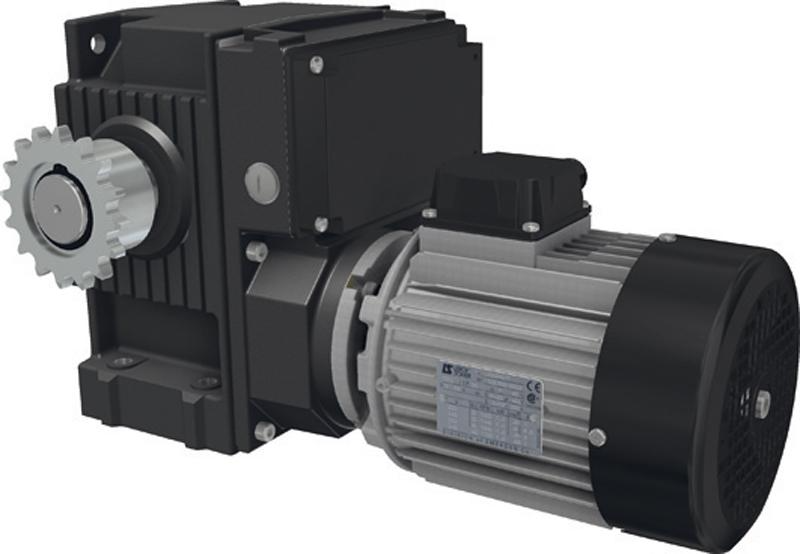

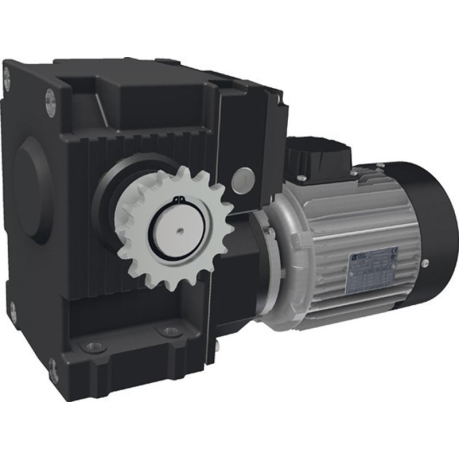

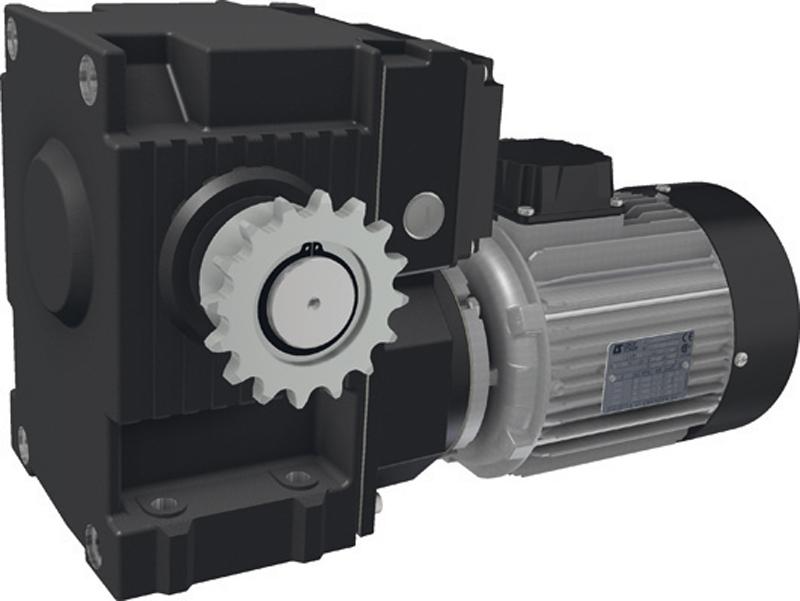

The RW1200/1600/2000S geared motors are maintenance-free drives for wire screen systems in greenhouses. All RW1200S/1600/2000S geared motors are equipped with a self-braking worm gear. This transmission ensures that the output shaft is braked when the drive is stopped. The combination of carefully matched gear and wheel gears means that the drive runs almost silently. The RW1200/1600/2000S geared motors are equipped with an integrated patented linear limit switch system with monitoring and safety switches with high switching accuracy. The maximum switching range for the limit switch system is 86 revolutions of the drive shaft. The optional RPU positioning unit precisely monitors the current position of the drive system and transmits this data back to your climate computer or controller. The RW1200/1600/2000S gearmotors have a graphite gray powder coating and are equipped with locking bolts and washers.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features RW1600-3S-150400386 Ridder (520225)
A turning point
1600 Nm
Current frequency, Hz
50-60
Producing country
Netherlands
Supply voltage
400 V
Weight, kg
56
