RW241D-09230186IP55 Ridder (532026)

Description

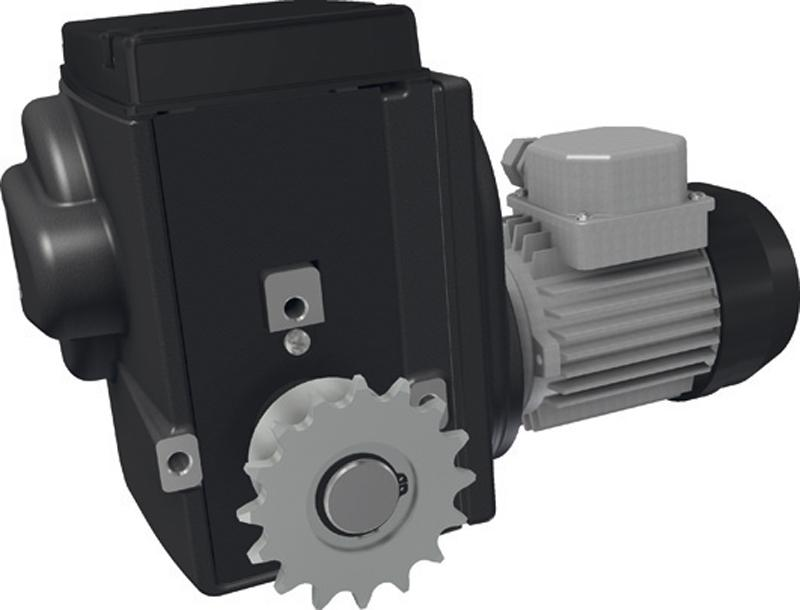

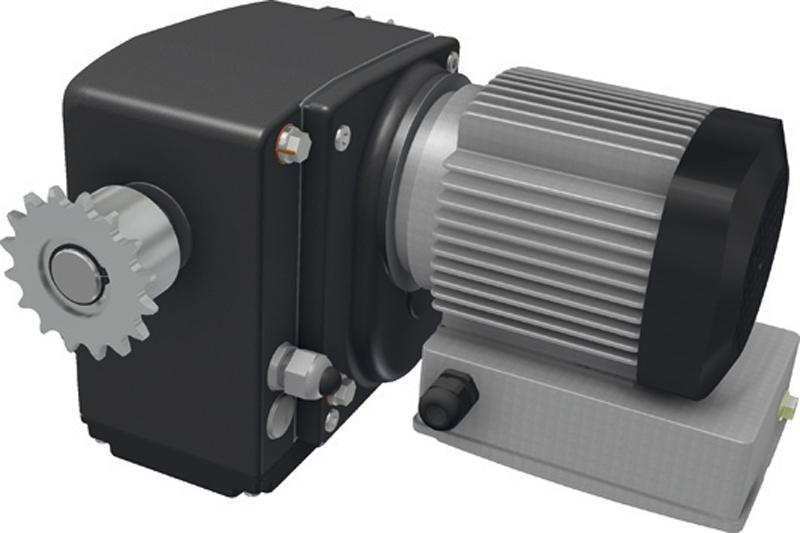

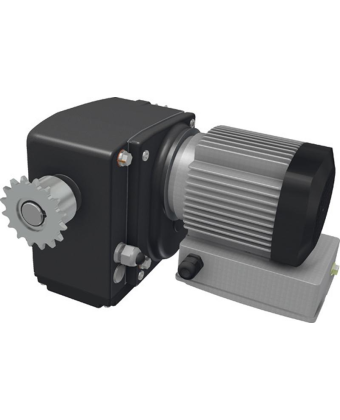

RW240 editors are compact driven units that do not need maintenance, for the operation of ventilation systems, screens and lifting in greenhouses and livestock premises. Simple RW240 editors are placed in a housing with a sealed end switch system, which has a high degree of IP55 protection. The RW240 editors are designed to operate at an ambient temperature from 0 to 60 ° C. All RW240 editors have a worm transmission with self-housing. This transmission provides the inhibition of the output shaft when the drive is stopped. The combination of carefully selected gears and worm gearboxes provides a very quiet mechanical transmission. RW240 editors are equipped with a patented integrated linear system of end switches with working and protective switches that have excellent switch accuracy. The maximum switching range of the end switches system is 86 of the drive shaft. An additional RPU positioning unit accurately monitors the current drive system and transmits this data to your climate computer or controller.
