RW45-1D-09400397IP55 Ridder (531025)

Description

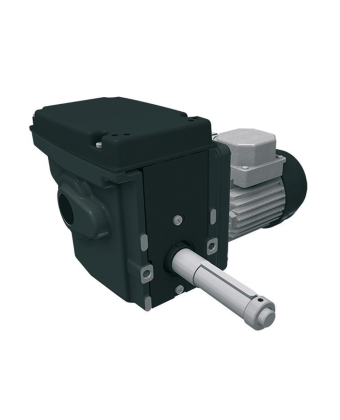

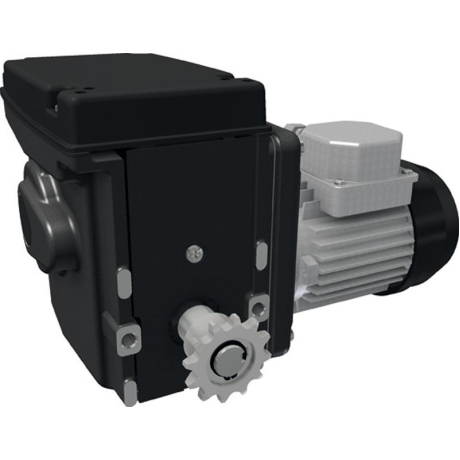

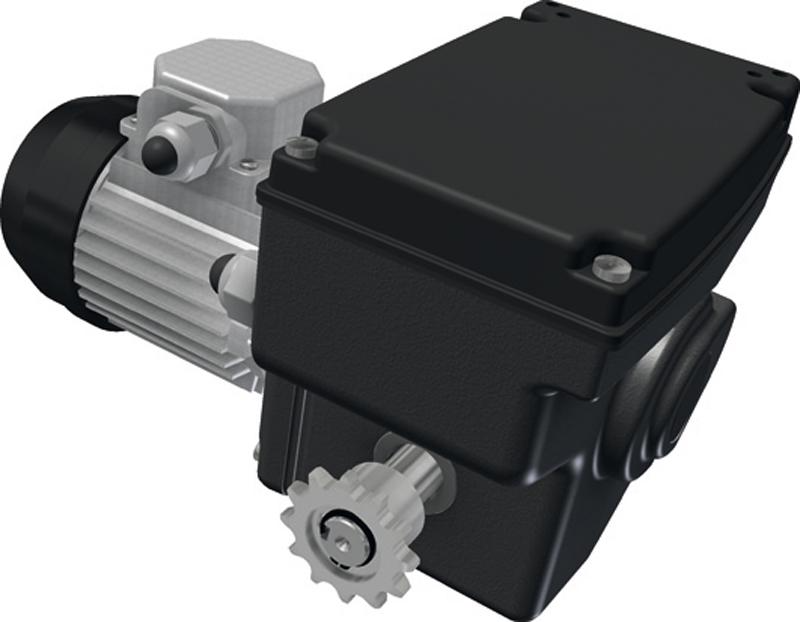

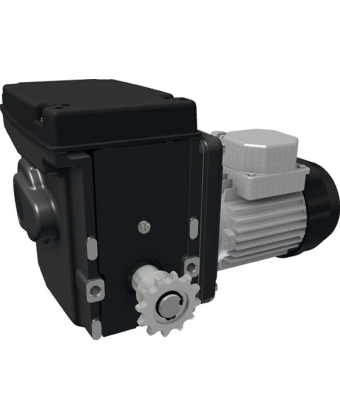

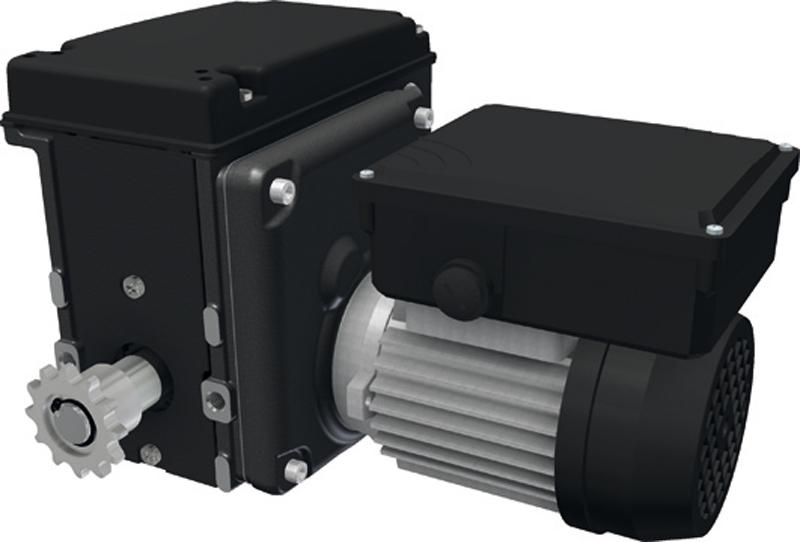

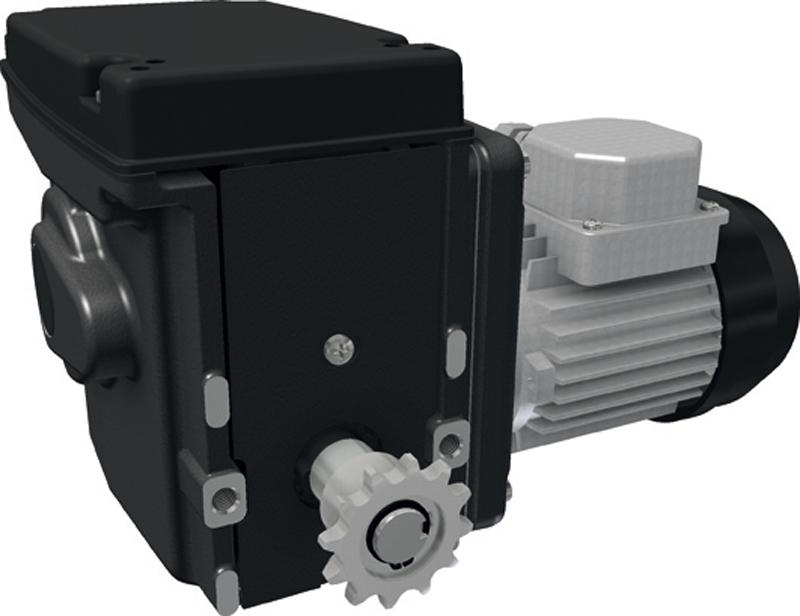

RW45 and RW45L Reductors, equipped with 24 in DC motors, do not require maintenance, compact actuators for the drive of ventilation dampers and inlet valves in combination with an emergency power source 24 in DC. The RW45 and RW45L editors are set in the case of the end switches, which has a high IP55 protection system. RW45 and RW45L motors are designed to work at an ambient temperature from 0 to 60 ° C. All RW45 and RW45L editors have a worm transmission with self-fever. This transmission provides the inhibition of the output shaft when the drive is stopped. The combination of carefully selected gears and worm gearboxes provides a very quiet mechanical transmission. RW45 and RW45L Reductors are equipped with a patented integrated linear end switches with working and safety switches with excellent switching accuracy. The maximum switching range of the end switches system is 97 of the drive shaft for the RW45 and 55 rpm editors for RW45L editors. An additional RPU positioning unit accurately monitors the current drive system and transfers this data to your climate computer or controller. RW45 and RW45L motors have a graphite-gray powder coating and are supplied with fasteners and spring washers.
