RW45-1LD-09230155IP55 Ridder (531115)

Description

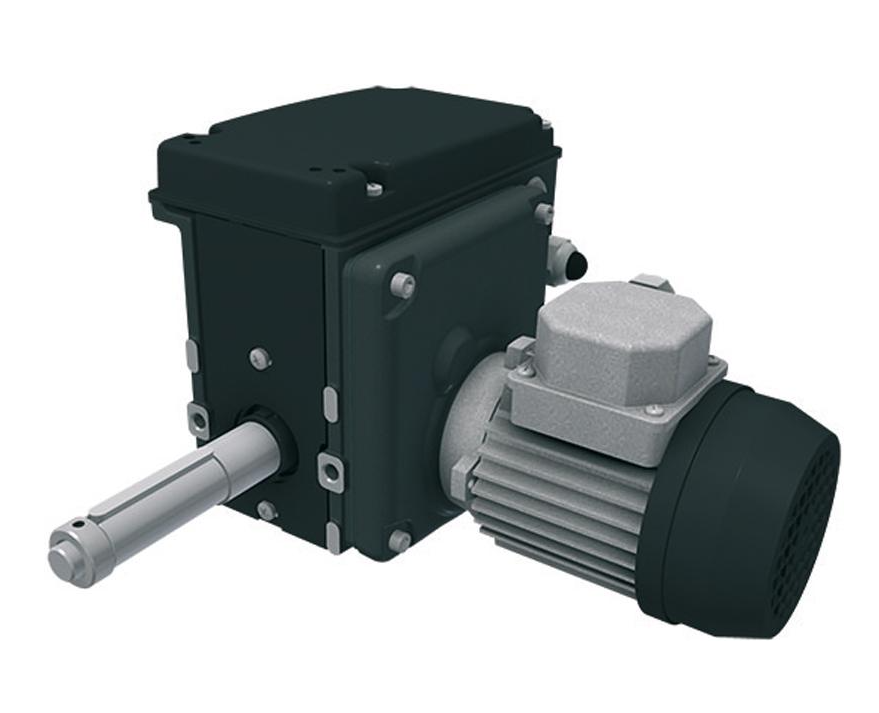

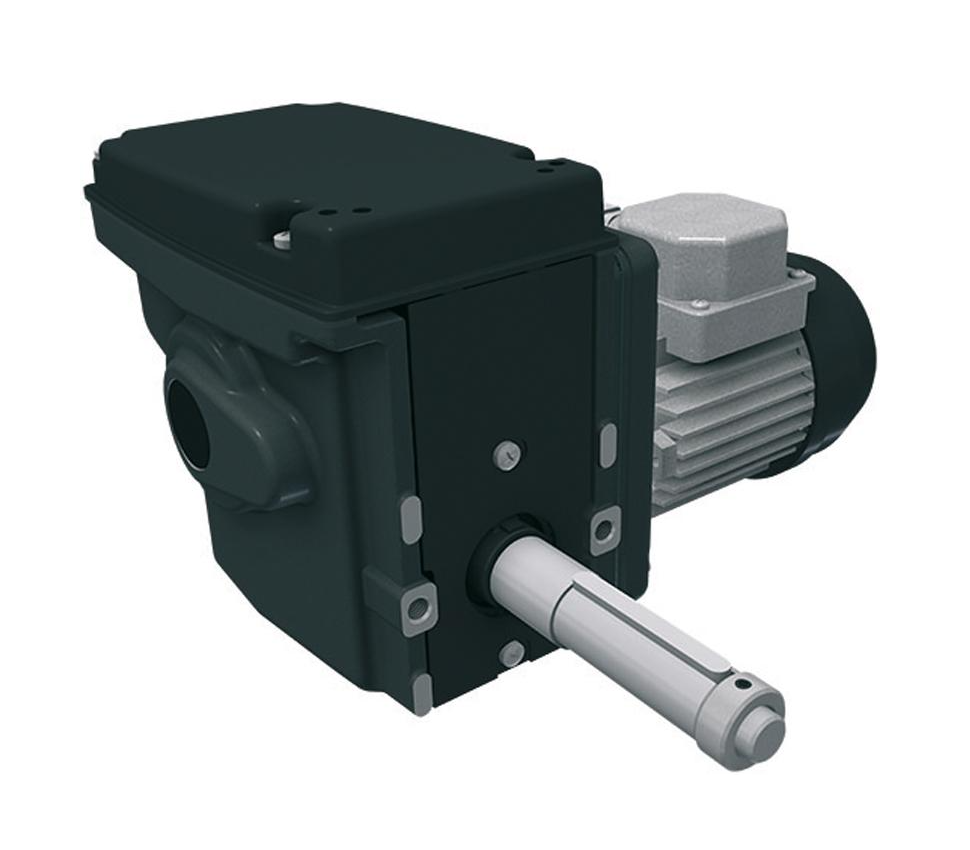

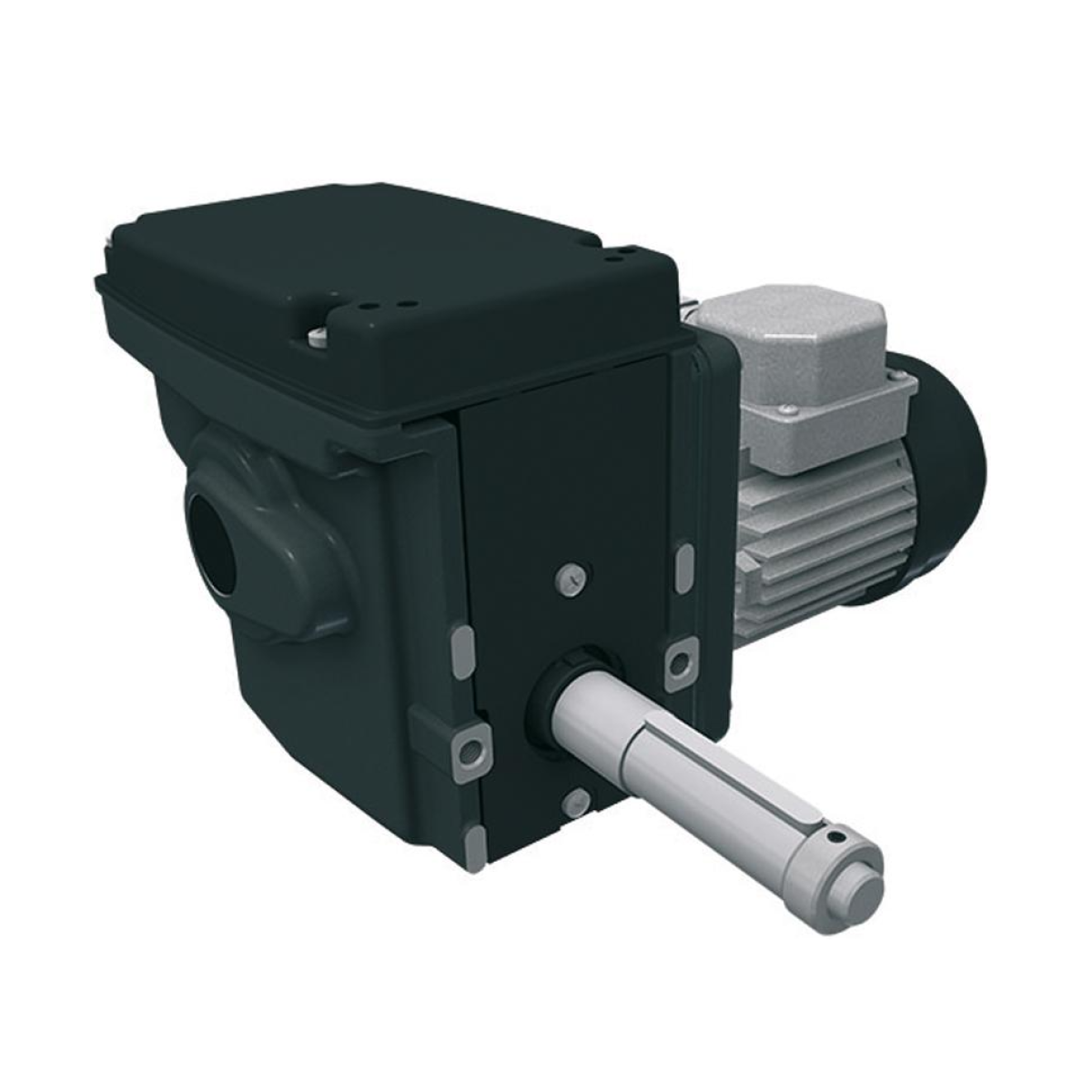

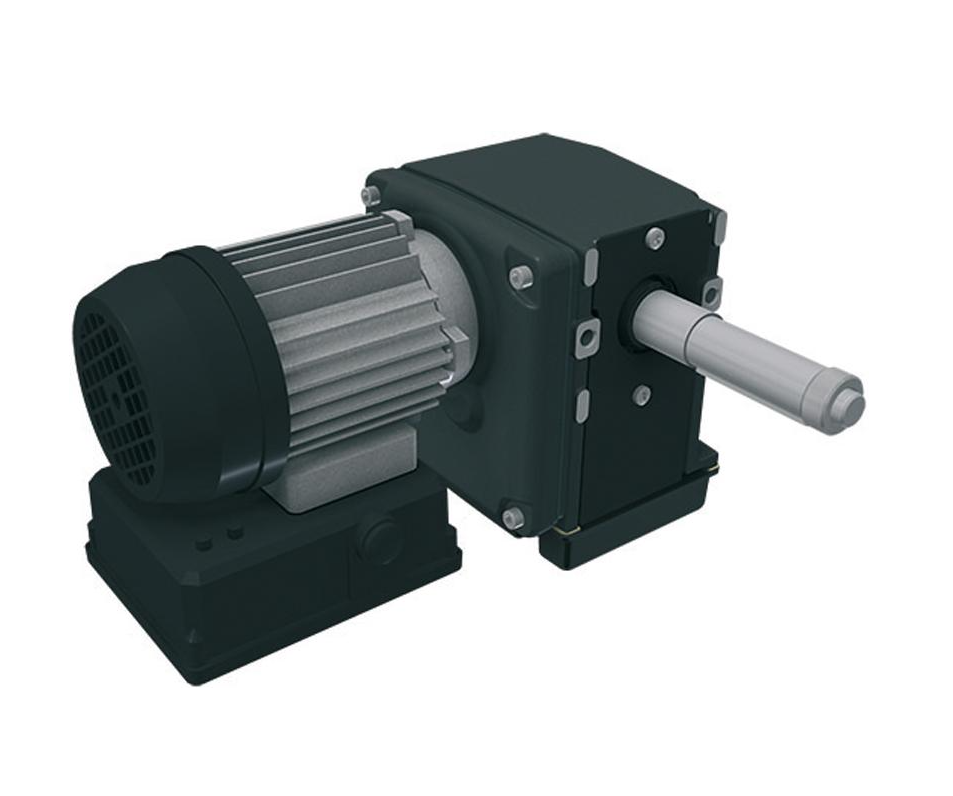

The RW45L Reductors, equipped with a rope or belt drum, are compact, do not require the service of drive units for lifting feeding and watering lines, as well as opening air intakes in livestock premises. Simple RW45L editors are placed in a housing with a sealed end switch system, which has a high degree of IP55 protection. RW45L editors are designed to operate at an ambient temperature from 0 to 60 ° C. All RW45L editors have a worm transmission with self-fever. This transmission provides the inhibition of the output shaft when the drive is stopped. The combination of carefully selected gears and worm gearboxes provides a very quiet mechanical transmission. RW45L editors are equipped with a patented integrated linear system of end switches with working and protective switches that have excellent switch accuracy. The maximum switching range of the end switches system is 55 of the drive shaft. An additional RPU positioning unit accurately monitors the current drive system and transfers this data to your climate computer or controller. The RW45L editors have graphite-gray powder coating and are supplied with fastening bolts and spring washers.
