Gear motor RW45-3-091151CU97 Ridder (535370P)
Gear motor RW45-3-091151CU97 Ridder (535370P)
In stock in Europe
Article: 535370P
64 207 ₴
Features
Brand
IP protection class
Ip54
Number of phases
1
Producing country
Netherlands
Rotation speed, rpm
3
Supply voltage
115 V
All characteristics
Description

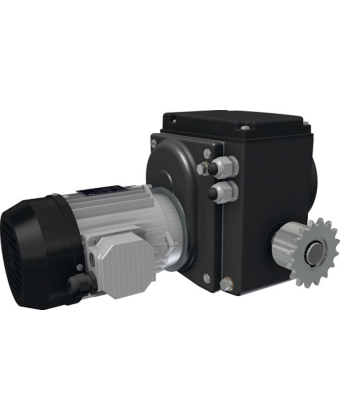

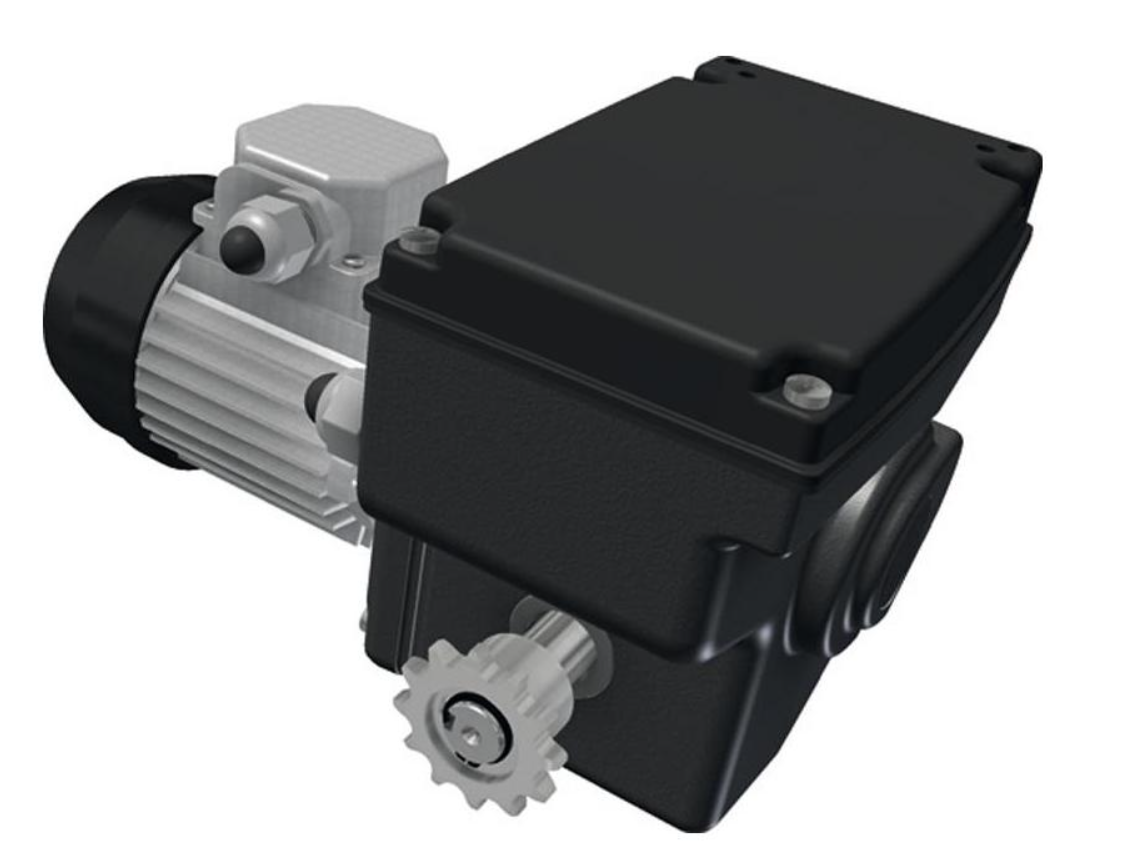

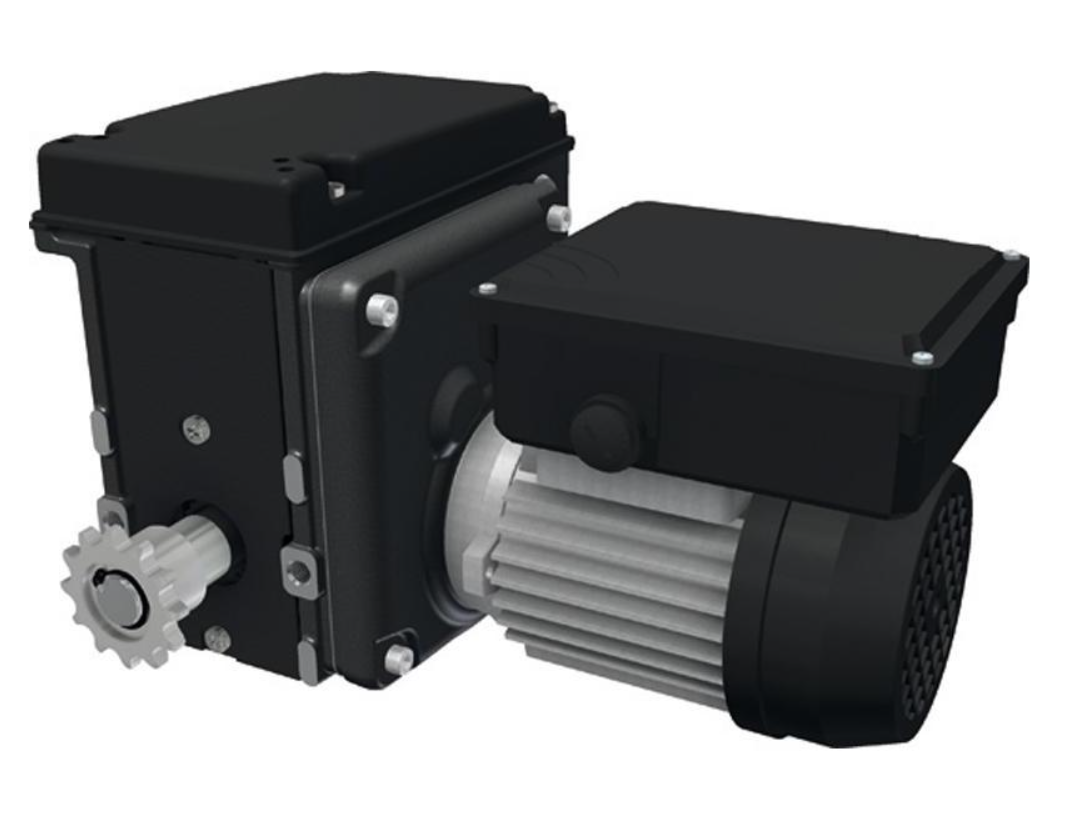

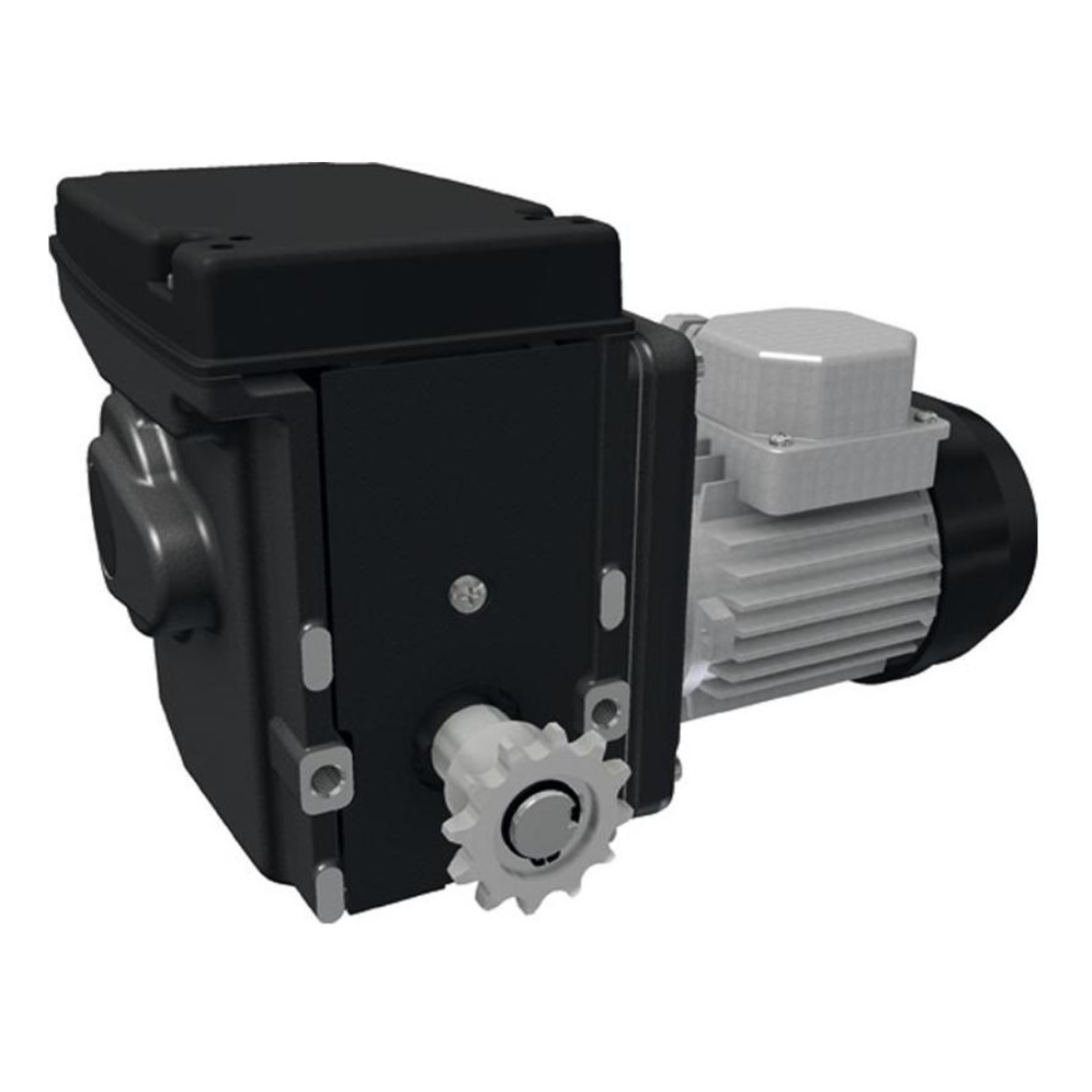

The RW45 motor gearboxes, suitable for SynCoreLogicLink control units, are maintenance-free, compact drive units for operating ventilation systems (RLL) or screen systems (SynCore) in greenhouses and livestock houses. The motor gearboxes are equipped with a PTC resistor in the electric motor, which serves as a thermal safeguard for the drive unit used with a SynCoreLogicLink control unit.¶All RW45 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.¶The RW45 motor gearboxes feature a patented integrated linear limit-switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit-switch system equates to 97 revolutions of the drive shaft.¶The RW45 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features Gear motor RW45-3-091151CU97 Ridder (535370P)
IP protection class
Ip54
Number of phases
1
Producing country
Netherlands
Rotation speed, rpm
3
Supply voltage
115 V
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Gear motor RW45-3-091151CU97 Ridder (535370P)
Specification Gear motor RW45-3-091151CU97 Ridder (535370P)
IP protection class
Ip54
Number of phases
1
Producing country
Netherlands
Rotation speed, rpm
3
Supply voltage
115 V
Temperature range
from 0° to 60°C
