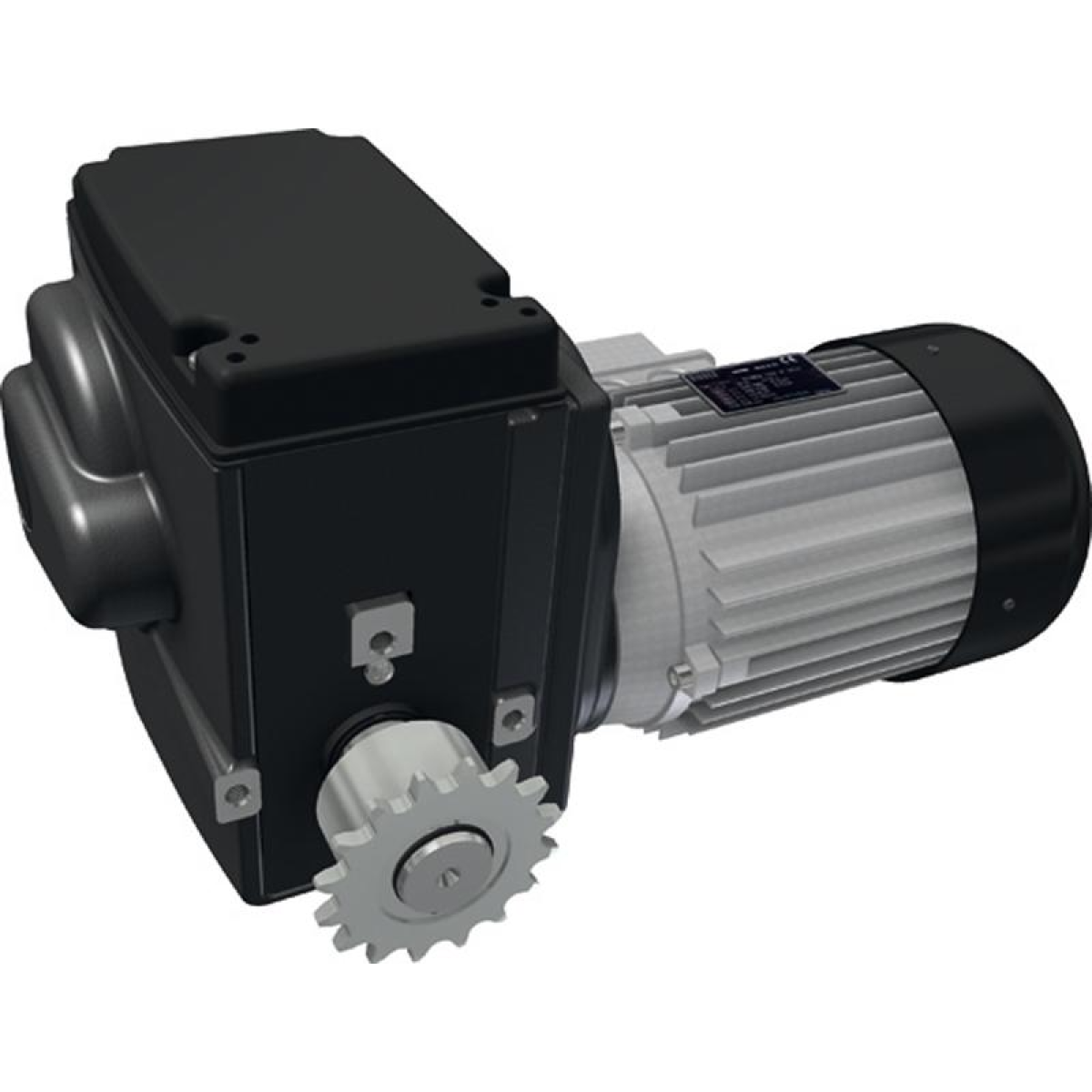

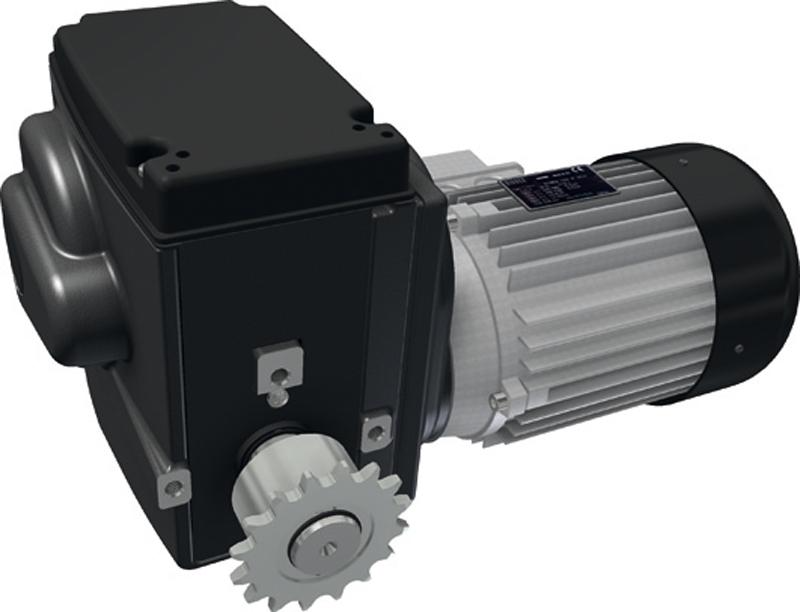

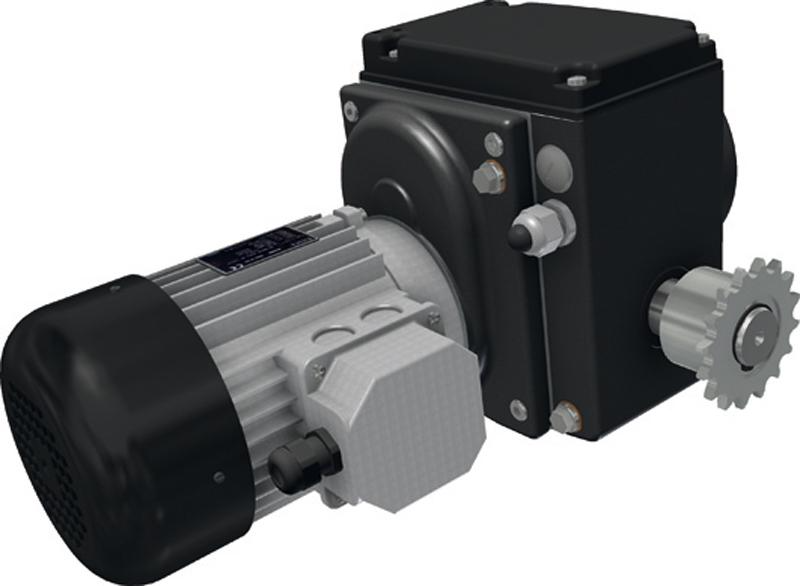

Gear motor RW603-55400386IP55 Ridder (537410P)

Description

The RW600 motor gearboxes, suitable for SynCoreLogicLink control units, are maintenance-free, compact drive units for operating ventilation systems (RLL), screen systems (SynCore) and hoisting systems (RLL) in greenhouses and livestock houses. The motor gearboxes are equipped with a PTC resistor in the electric motor, which serves as a thermal safeguard for the drive unit used with a SynCoreLogicLink control unit.¶All RW600 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.¶The RW600 motor gearboxes feature a patented integrated linear limit-switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit-switch system equates to 86 revolutions of the drive shaft.¶The RW600 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.
