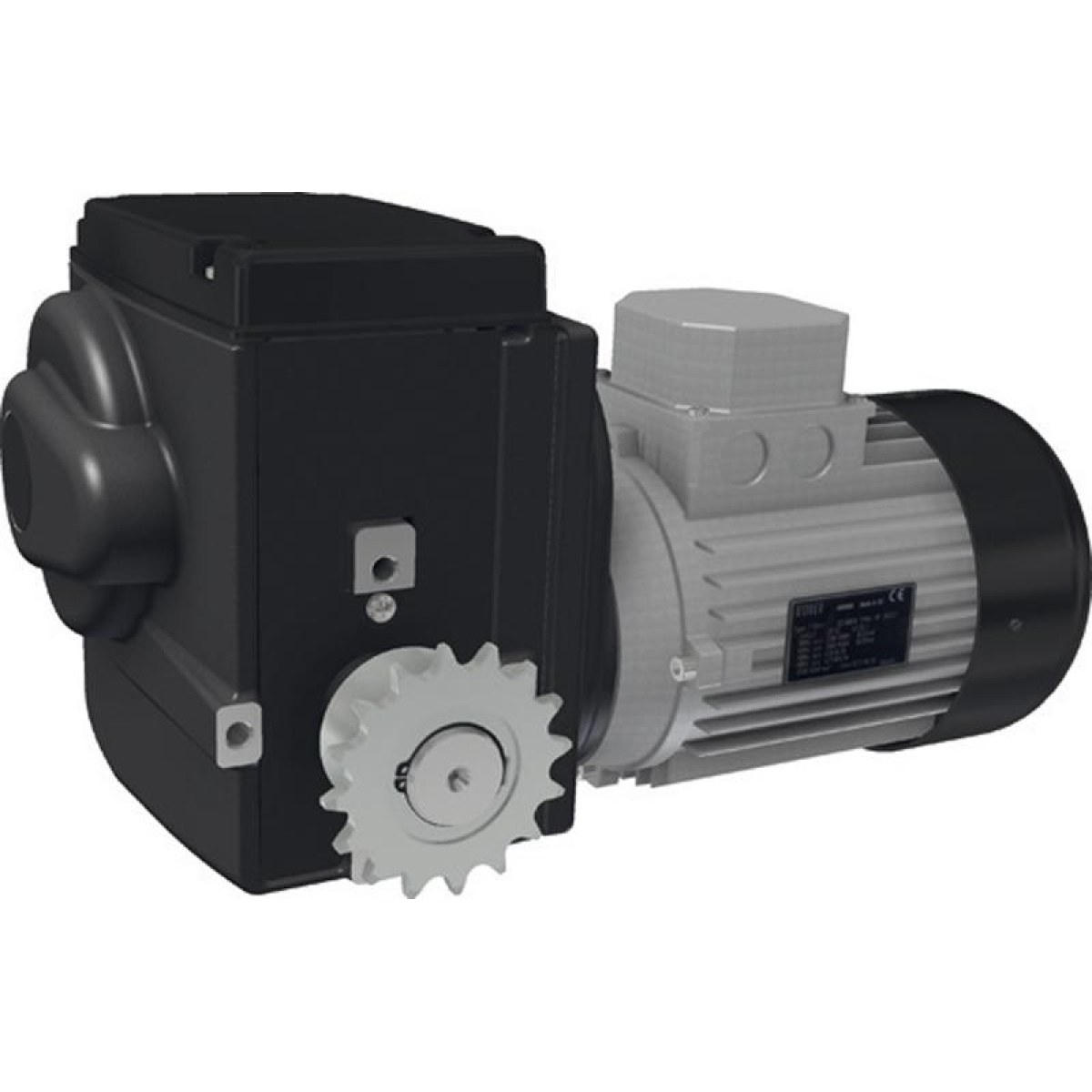

Gear motor RW605-110208-4803CU86IP55 Ridder (537435)

Description

The RW600 motor gearboxes are maintenance-free, compact drive units for operating ventilation, screen and hoisting systems in greenhouses and livestock houses. The RW600 motor gearboxes are designed to operate at ambient temperatures between 0 and 60 °C.¶All RW600 motor gearboxes feature a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of carefully matched pinion and worm reductions results in a very quiet mechanical transmission.¶The RW600 motor gearboxes feature a patented integrated linear limit-switch system with duty and safety switches having excellent switching precision. The maximum switching range of the limit-switch system equates to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller.¶The RW600 motor gearboxes are finished with a graphite grey powder coating and are supplied including fixing bolts and spring washers.
