iDOL 26, capacitive sensor, CA-P-Ø18-NF-CR-PNP (105234)
iDOL 26, capacitive sensor, CA-P-Ø18-NF-CR-PNP (105234)
Features
All characteristics
Description
DOL 26 is a capacitive sensor for the walls of feed troughs or small hoppers, which operates in dusty and humid livestock facilities. It accurately detects the presence of bulk materials and compensates for the influence of temperature, and is protected from interference and overloads. The sensor is compatible with farm system controllers, PLCs and automated feed lines. Its main advantages are compactness, low power consumption, easy setup and reliable operation in challenging farm conditions. It helps to accurately control the level of feed or pellets and ensures stable operation of feeding systems.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Intelligent Capacitive Sensor iDOL 26 CA-P-Ø18-NF-CR-PNP (NFC)

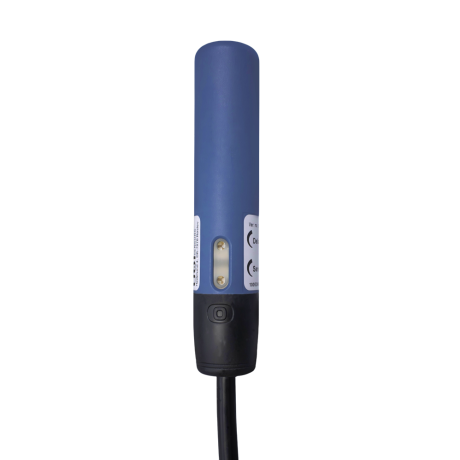

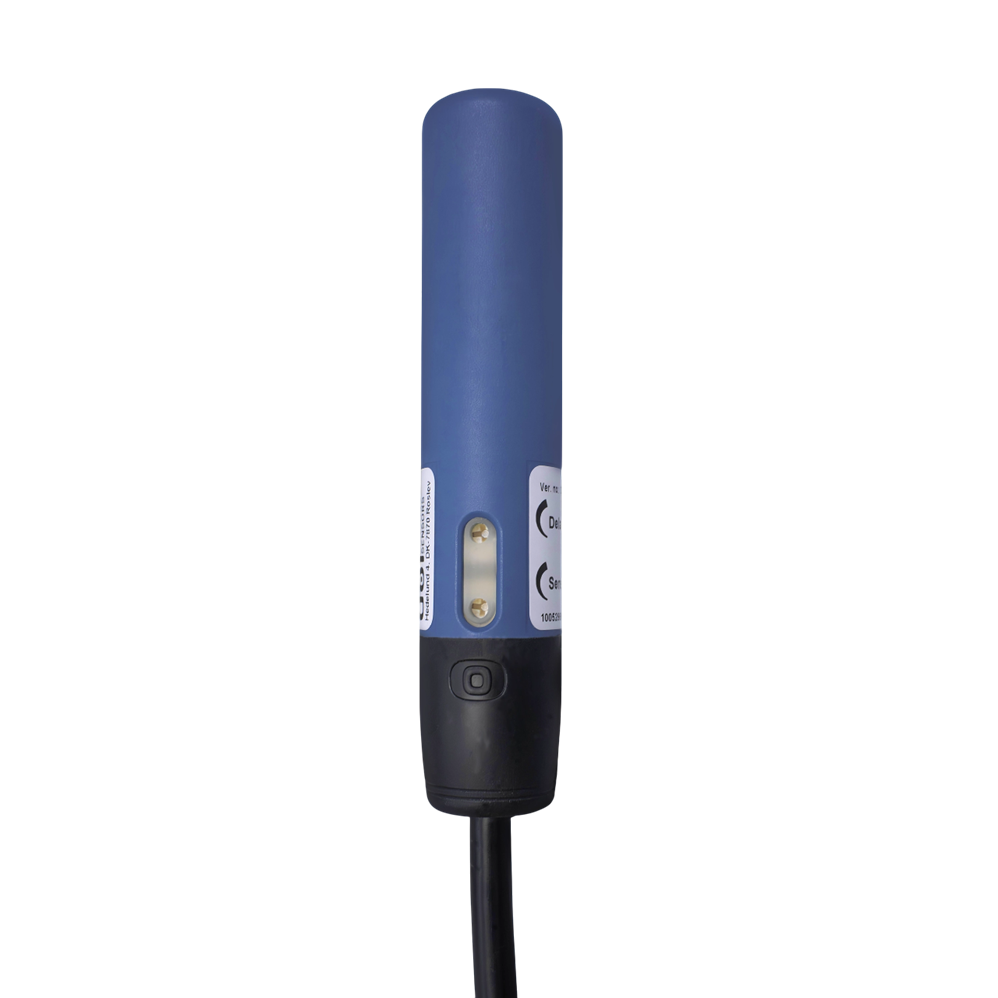

The iDOL 26 CA-P-Ø18-NF-CR-PNP is a high-tech intelligent level sensor in a smooth Ø18 mm housing, specifically designed for precision automation in livestock environments. This model is made from CR (Chemical Resistant) plastic, making it immune to ammonia fumes and disinfectants. The sensor operates in 10–30V DC networks and features a PNP transistor output, ensuring seamless integration with modern PLC systems.
The primary technological advantage of the iDOL series is the integrated NFC interface. Parameters such as sensitivity and time delays are configured wirelessly via smartphone using the SmartAdjust app. This provides the unique benefit of selecting Make/Break optional logic (Normally Open or Normally Closed) via software. The absence of adjustment holes ensures an IP69K protection rating, allowing for high-pressure hot water cleaning.
Mounting
Installation of the iDOL 26 in its smooth Ø18 mm body is highly hygienic and easy to adjust. The device is mounted using rubber grommets or specialized plastic clips, allowing for instant immersion depth adjustment simply by sliding the housing. As a Non-Flush (NF) type, the sensing head must protrude into the detection zone and remain clear of metal surfaces. The chemically resistant CR housing ensures the device remains unaffected by aggressive fumes, preventing plastic cracking over time.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 10 – 30 V DC |
| Output Type | PNP (transistor) |
| Operating Logic | Programmable (NO / NC) |
| Housing Material | CR (Chemical Resistant) |
| Protection Rating | IP69K / IP67 |
iDOL 26 PNP CR — intelligent power and chemical protection for professional farming.
