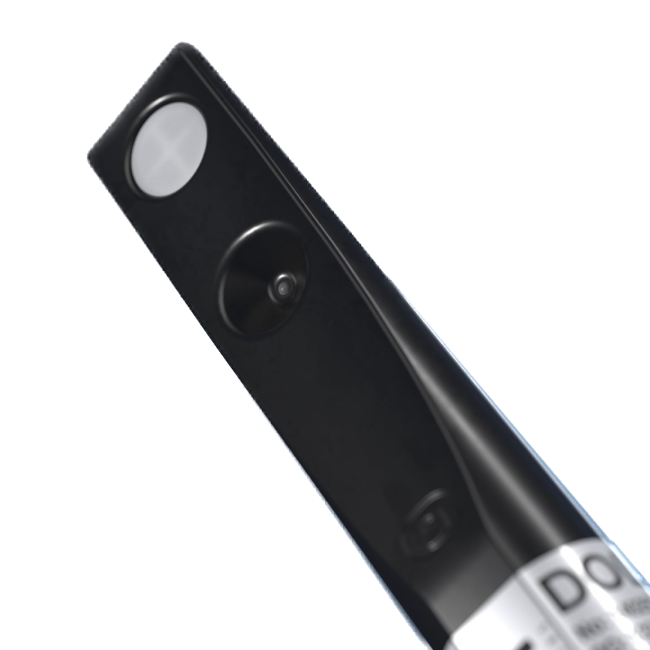

Light intensity sensor DOL 16 0-100/1000 Lux 0–10V, 140268

Name: Light intensity sensor DOL 16 0-100/1000 Lux 0–10V, 140268
Brand: DOL
SKU: 140268
Price: 8254 UAH
Availability: InStock
Rating: 5 (6 reviews)

In stock in Europe

Article: 140268

Reviews (6)

Write a review

8 254 ₴

Features

Brand

DOL

Accuracy

Output 1: 5-100 Lux +/- 4% at 0 – 40 C (32 – 104 F) | Output 2: 25-1000 Lux +/- 8% at 0 – 40 C (32 – 104 F)

Cable

2 m (6.6 ft) 4 x 0.33 mm² (22 AWG)

Current strength, A

12 mA no load, 55 mA max. load

Initial resistance

< 1 Ω

IP protection class

67IP (6)

All characteristics

Download technical documentation

Description

DOL 16 is a reliable light intensity sensor that dims light intensity and is specially designed for advanced use in domestic premises. However, you can also become a victor in various industrial areas. The combination of the DOL 16 light sensor allows active brightness control, which results in high productivity and energy savings. DOL 16 sensors are available in different dimming ranges, from 0-50 lux to 0-1000 lux.

Download technical documentation

Benefits and warranty

High quality

The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support

Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices

Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges

We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card
Cash on delivery "Nova Poshta"

Buy together

Кронштейн кріплення для DOL 16/104/114 - Фото

Mounting bracket for DOL 16/104/114

380101

Producing country: Denmark

In stock in Europe

72 ₴

Комплект шлангів із трійником для датчика розрідження DOL, в компл - Фото

A set of hoses with a tee for a DOL vacuum sensor, in a set

140235

Producing country: Denmark

In stock in Europe

253 ₴

Кабель 2м для DOL 16 датчика світла з разьємом M12 и заглушкою - Фото

2m cable for DOL 16 light sensor with M12 connector and plug

140296

Producing country: Denmark

In stock in Europe

635 ₴

Пластмасовий сальник мале ущільнення - Dol 40 - Фото

Small sealing plastic packing - Dol 40

140100

Producing country: Denmark

In stock in Europe

232 ₴

Universal gateway, iDOL 64 (140327)

140327

Frequency: 50-60 Hz Humidity: 10 - 90 %RH IP protection class: Ip65 Maximum current: 500mA DC Number of outputs: 12 Number of ports: 4 pcs M12 port Output current: 0–24 mA to 200 mA per output

In stock in Europe

105 066 ₴

DOL 16 Light Intensity Sensor (0–100/1000 Lux, 0–10 V)

The DOL 16 is a high-performance light intensity sensor specifically engineered to handle the rigorous environments of modern livestock housing. Featuring a dual-range capability (0–100 Lux / 0–1000 Lux) and a precise 0–10 V analog output, it provides real-time data for climate computers. Maintaining an ideal light intensity is a critical pillar of animal welfare, directly influencing growth rates, immunity, and reproductive cycles.

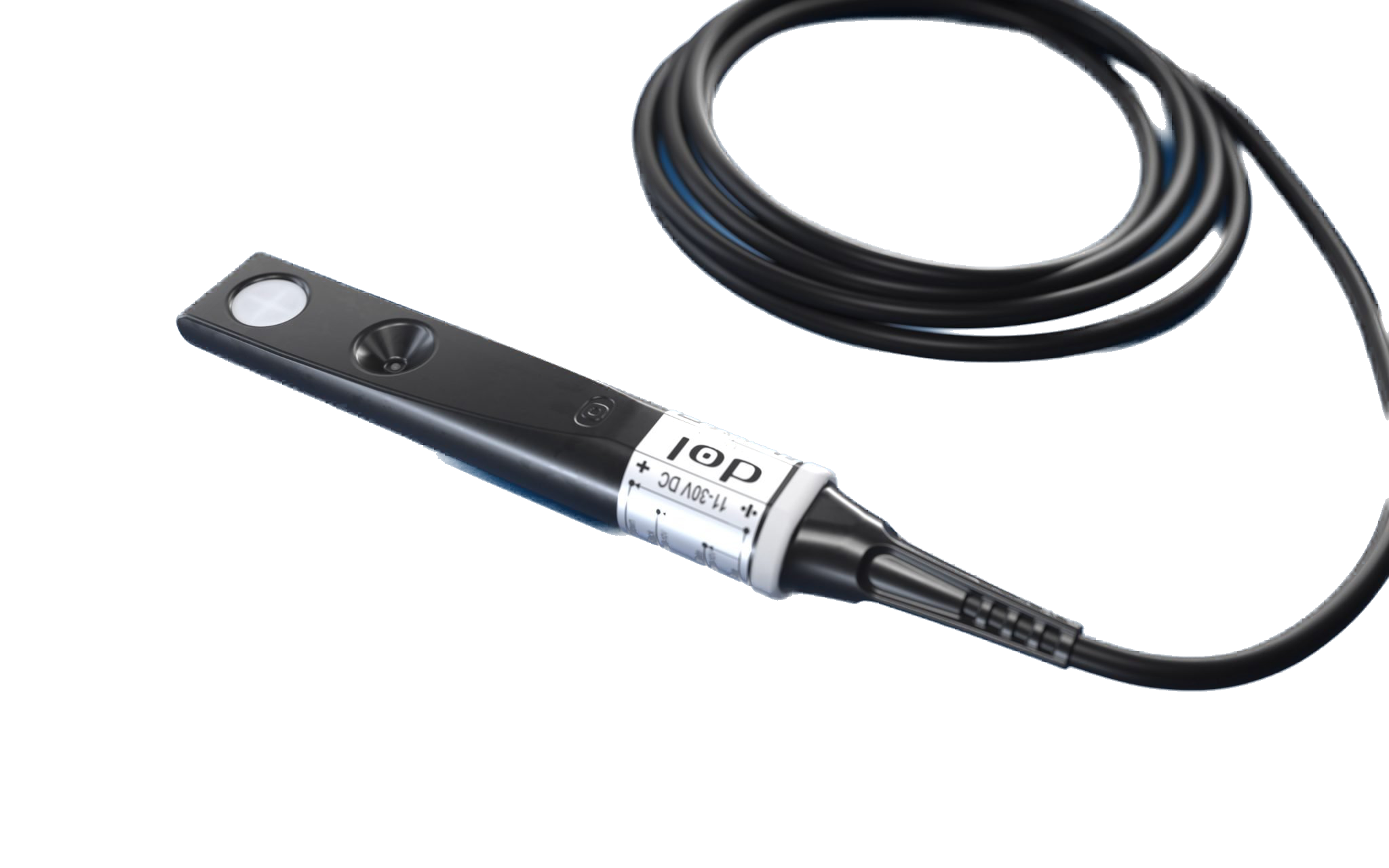

[DOL 16 Light Sensor]

Efficiency and Biological Performance

Integrating the DOL 16 into your automation system significantly reduces energy costs by activating artificial lights only when necessary. For poultry, it facilitates a controlled day/night cycle essential for skeletal health and egg production. In pig housing, maintaining a consistent light level prevents stress and destructive behavior, ensuring better health outcomes and optimized Feed Conversion Ratios (FCR).

Installation and Mounting Strategy

To achieve representative environmental data, the DOL 16 should be installed at the animals' level, away from shadows cast by equipment or structural pillars. Avoid placing the sensor directly under spotlights to prevent skewed data. The sensor features a built-in microprocessor and a diagnostic LED for on-site health checks. Maintenance Note: During high-pressure washdowns or disinfection cycles, the sensor must be covered with a protective cap to shield the optical element from water jets and chemical fogging.

Strategic Comparison Table

Strategic Feature	DOL 16 Sensor	Generic Sensors
Measurement Flexibility	Dual Range (0–100 / 1000 Lux)	Single Fixed Range
Signal Stability	Microprocessor-driven	Standard Analog
Diagnostics	Integrated LED Indicator	None
Resilience	Full circuit protection (SC/OC)	Limited Protection

DOL 16 — the professional standard for smart light control.

Features Light intensity sensor DOL 16 0-100/1000 Lux 0–10V, 140268

Accuracy

Output 1: 5-100 Lux +/- 4% at 0 – 40 C (32 – 104 F) | Output 2: 25-1000 Lux +/- 8% at 0 – 40 C (32 – 104 F)

Cable

2 m (6.6 ft) 4 x 0.33 mm² (22 AWG)

Current strength, A

12 mA no load, 55 mA max. load

Initial resistance

< 1 Ω

IP protection class

67IP (6)

All characteristics

Reviews (6)

Світлана

Замінили китайські фотореле на ці професійні датчики. Вибрали DOL 16 через стабільність сигналу на довгій лінії. Датчик встановлений на вулиці під козирком для контролю притоку повітря, на морози не реагує. Працює чітко, автоматика тепер не "смикається" від кожної хмаринки. Своїх грошей вартує через довговічність.

02/02/2026

Віктор Мельник

Взяв цю модель для автоматизації нічного освітлення на фермі. Важливо було мати саме сигнал 0-10 вольт для димерів. DOL 16 бачить найменші зміни інтенсивності, тому перехід світла відбувається плавно, що не стресує птицю. Якість пластику висока, кабельне введення надійне, всередині все сухо навіть після миття цеху.

14/07/2025

Тетяна Олександрівна

Для нашого інкубаторію точність світла має значення. Обрали DOL 16 через можливість перемикання шкал. Використовуємо 100 люкс для тонкої настройки режимів. Датчик компактний, легко протирається від пилу. Світлова індикація на корпусі дуже допомагає при обході — відразу бачу, що прилад під напругою і працює.

28/02/2025

Андрій Бойко

Шукав заміну старому сенсору, який "здох" від аміаку. Вибрав DOL 16 за європейську якість збірки та стійкість до агресивного середовища. Поставили на свинокомплексі, працює вже три місяці без збоїв. Показники лінійні, налаштовувати на комп'ютері було дуже просто. Надійна річ для тих, хто не хоче міняти запчастини щокварталу.

10/11/2024

Наталія Сергіївна

Купили цей датчик для керування шторами в теплиці. Вибрали саме DOL 16 0-10V, бо він ідеально сумісний з нашою системою мікроклімату. Діапазон 1000 люкс дозволяє чітко бачити момент, коли сонце стає надто активним, і вчасно закривати затінення. Корпус герметичний, волога від поливу йому не шкодить.

15/08/2024

Buy together with Light intensity sensor DOL 16 0-100/1000 Lux 0–10V, 140268

Reviews (6)

Specification Light intensity sensor DOL 16 0-100/1000 Lux 0–10V, 140268

Reviews (6)

Accuracy

Output 1: 5-100 Lux +/- 4% at 0 – 40 C (32 – 104 F) | Output 2: 25-1000 Lux +/- 8% at 0 – 40 C (32 – 104 F)

Cable

2 m (6.6 ft) 4 x 0.33 mm² (22 AWG)

Current strength, A

12 mA no load, 55 mA max. load

Initial resistance

< 1 Ω

IP protection class

67IP (6)

>500Ω - 10MΩ

Maximum cable length

(0.75 mm2) 100 m | (1.5 mm2) 200 m

Maximum current

20 mA

Measurement, shipment

275 x 200 x 20 mm

Measuring range

Output 1: 0-100 Lux | Output 2: 0-1000 Lux

Output

Output 1: 0.1 V / 1 Lux | Output 2: 0.1 V / 10 Lux

Producing country

Denmark

Recommended load

≥ 100kΩ

Sensor length

154 mm

Supply voltage

11 - 30 V DC

Temperature, use

-40 - -60 C

Time constant

2 - 15 sec

Type

Light sensor

Weight with cable

150 g
