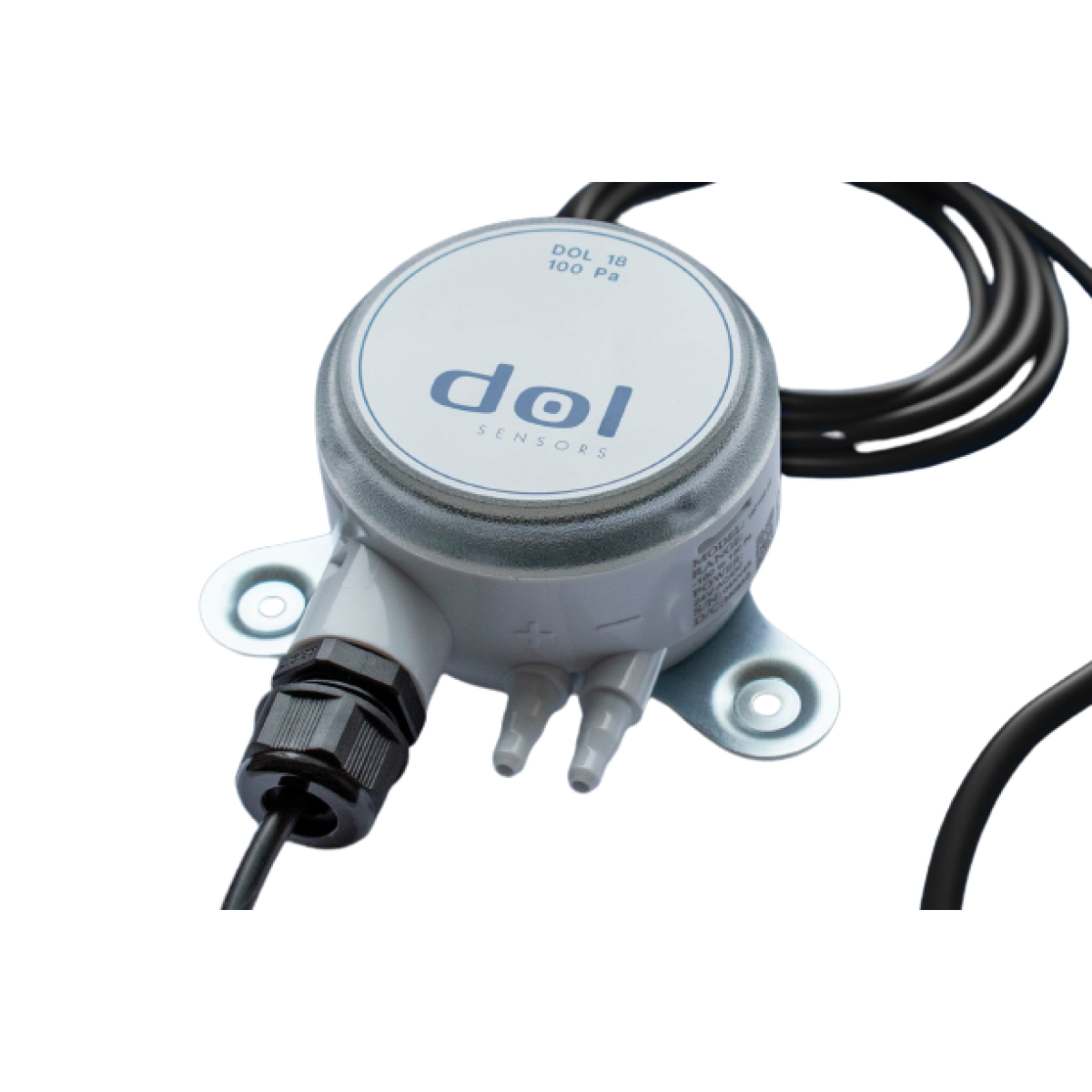

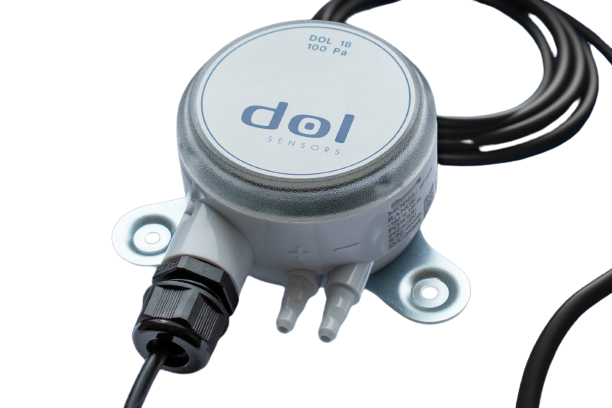

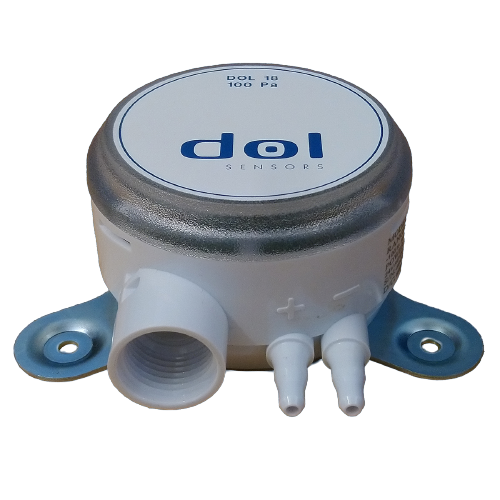

DOL 18 pressure sensor (140306)

DOL 18 pressure sensor (140306)

In stock in Europe
Article: 140306
Write a review
9 088 ₴

Features

Brand
Accuracy
+/- 1% FSO
Electrical connections
Wire 2: 4 - 20 mA | Wire 3: 0 - 10 (0 - 5) V | Wire 4: 4 - 20 mA 0 - 10 (0 - 5) V
Electrical input
Thread 1/2" NPS, Cable glands for cables ? 5 - 9 mm
Energy consumption
Max 25 mA
Fastener Orientation
Vertical

Description

The electronic low pressure sensor DOL 18 can be used to read or control the pressure in the installation area, as well as to generate an alarm signal in either too low or too high a pressure. Є a wide selection of DOL 18 sensors with different ranges ranging from 25 Pa to 1250 Pa and outputs 0-5 V, 0-10 V and 4-20 mA.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

DOL 18 Sub-Pressure Sensor

The DOL 18 electronic sub-pressure sensor can be used for reading or controlling the pressure in the livestock house and for generating an alarm in case of too low or too high pressure.


Benefits:

-Optimum ventilation parameters for animals;

-Increased proper animal welfare;

-Energy saving.

DOL 18 for Reading or Controlling the Pressure in the Livestock Houses

The DOL 18 electronic sub-pressure sensor is used in connection with climate and production computers, for climate monitoring among other things.

The sensor can be used for reading or controlling the pressure in the livestock house and for generating an alarm in case of too low or too high pressure.

Furthermore, DOL 18 is often used for pressure control in central ducts. For instance, in connection with air cleaning systems.

Optimum Ventilation

Using negative pressure ventilation systems in swine and poultry production, the level of sub-pressure is an important factor. DOL 18 sub-pressure sensor provides updated data on the sub-pressure ensuring that the ventilation system can maintain air quality, temperature, and air movement in the most efficient way.

Features DOL 18 pressure sensor (140306)

Accuracy
+/- 1% FSO
Electrical connections
Wire 2: 4 - 20 mA | Wire 3: 0 - 10 (0 - 5) V | Wire 4: 4 - 20 mA 0 - 10 (0 - 5) V
Electrical input
Thread 1/2" NPS, Cable glands for cables ? 5 - 9 mm
Energy consumption
Max 25 mA
Fastener Orientation
Vertical

Reviews (0)

There are no reviews for this product.

Buy together with DOL 18 pressure sensor (140306)

Specification DOL 18 pressure sensor (140306)

Accuracy
+/- 1% FSO
Electrical connections
Wire 2: 4 - 20 mA | Wire 3: 0 - 10 (0 - 5) V | Wire 4: 4 - 20 mA 0 - 10 (0 - 5) V
Electrical input
Thread 1/2" NPS, Cable glands for cables ? 5 - 9 mm
Energy consumption
Max 25 mA
Fastener Orientation
Vertical
IP protection class
66IP (4X NEMA)
Load resistance
Wire 3: >100 k? | Wire 4: >100 k?
Measuring signal
Wire 2: 4 - 20 mA
Output
Wire 3: 0 - 10 / 0 - 5 V (DIP switch setting) | Wire 4: 0 - 10 / 0 - 5 V (DIP switch setting)
Pipe inner diameter
1/8", 1/16", 1/4", 5mm, 6mm
Pressure limitation (explosion)
6 PSI
Pressure limits
6 PSI
Producing country
Denmark
Shunt resistance
Wire 2: 50-1250 ? | Wire 4: 50-900 ?
Supply voltage
Wire 2: 11-35 V | Wire 3: 17-36 VDC | Wire 4: 18-35 V
Sustainability
+/- 1% FSO / year
Temperature, storage
-20 – 70°C
Temperature, use
-20 - +70 °C
Type
Pressure sensor
Weight
230 g
