Water pressure regulator, Lubing (4206-00)

Description

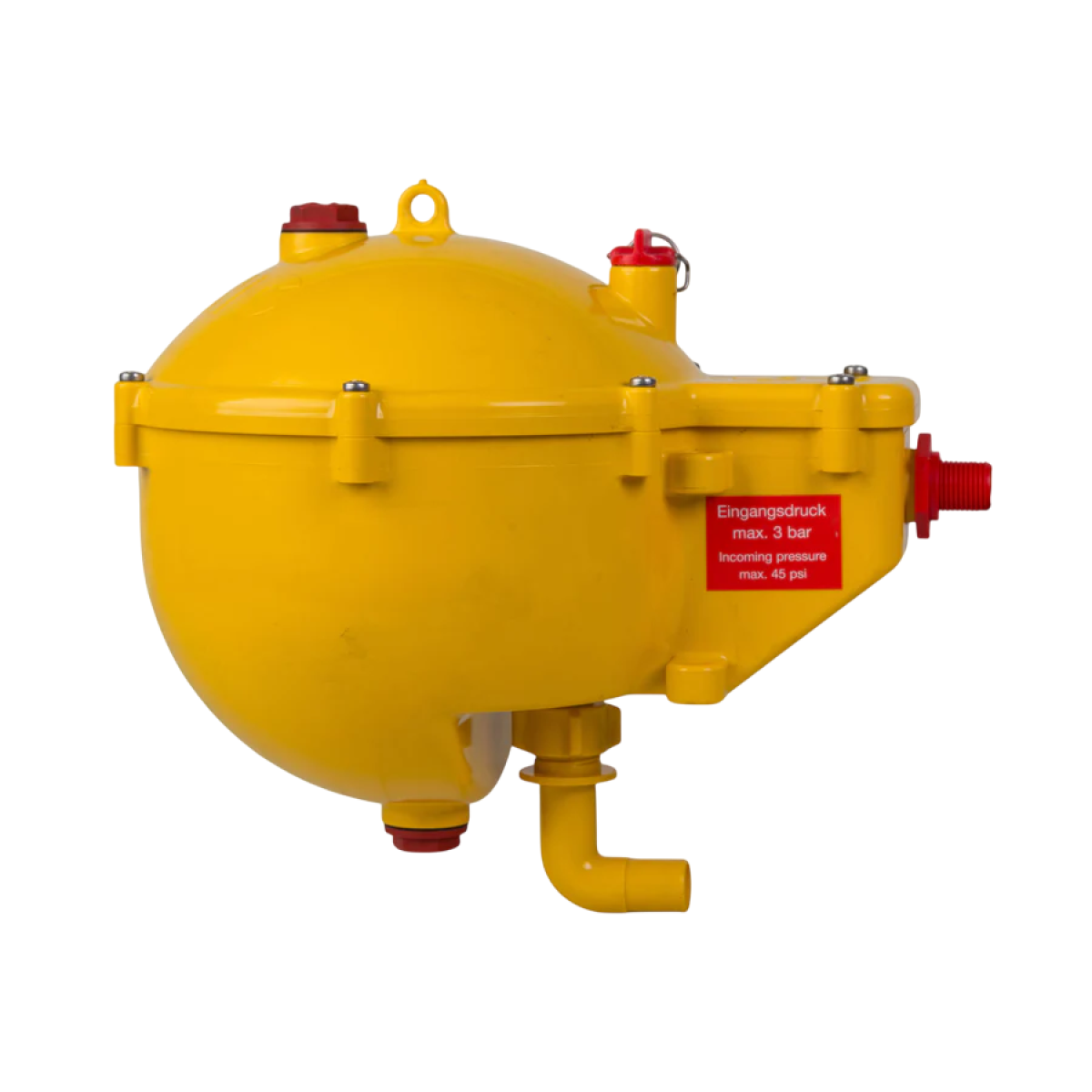

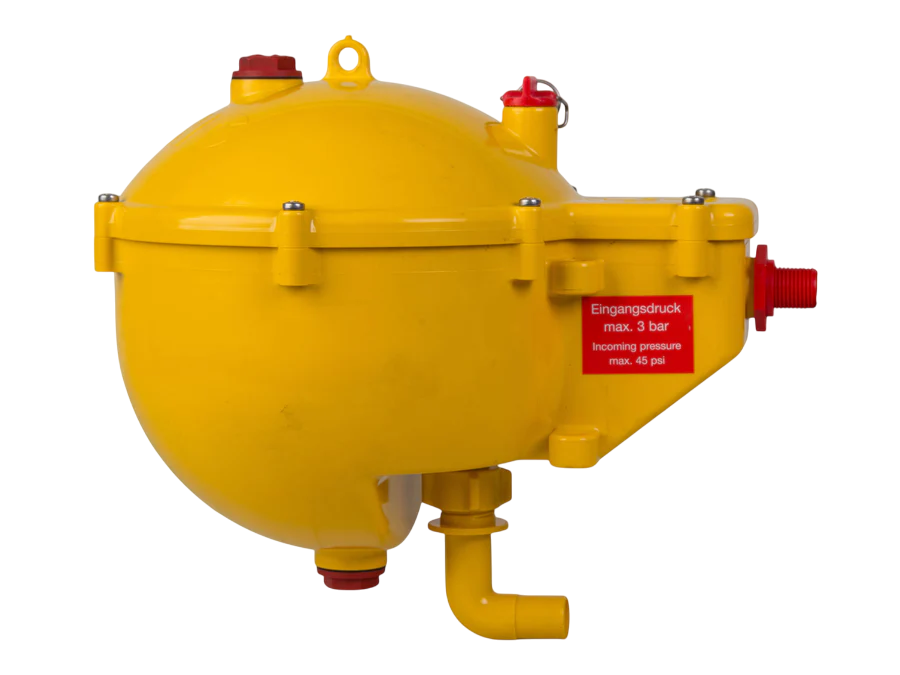

Ball tank 1-outlet with built-in valve for cell LUBING: 4206-00. Lubing tank with flushing system for 1 outlet (4206-00) is made of quality materials and is designed for nipple filling systems, designed for one line. The body and internal working mechanisms are made of impact-resistant plastic, resistant to aggressive environments. The laying between the upper and lower parts of the tank is made of rubber, which ensures complete tightness. It is fixed on the line of filling with the help of cables of the suspension system. The maximum water pressure in the system should not exceed 3 bar. Water enters through an angle adapter for a 20 mm hose and is supplied to the supply line through an outlet of the same diameter. The built-in float valve maintains a constant level of water pressure. When the system is completely filled, the water rises in the tank to the maximum level, then the valve shuts off the supply. In the upper part of the tank there is a device that regulates the float valve.
