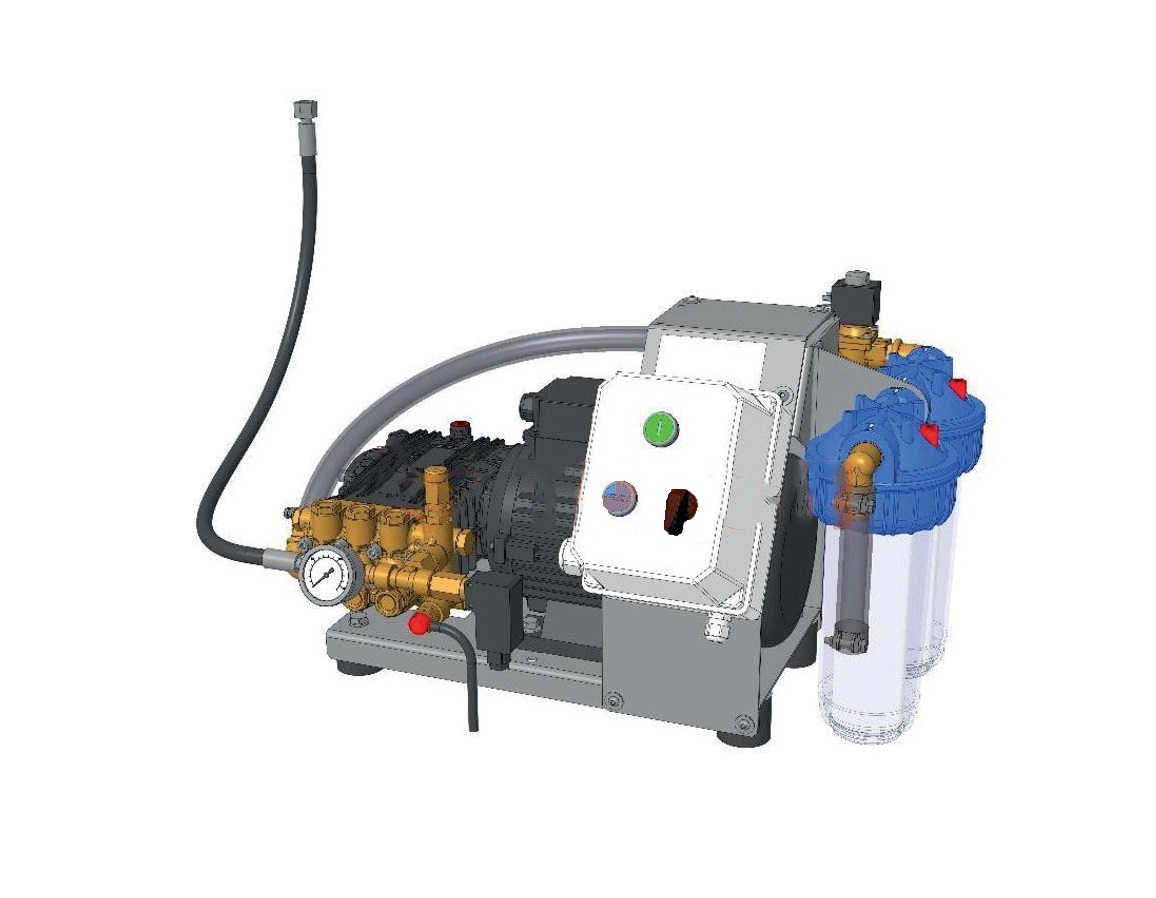

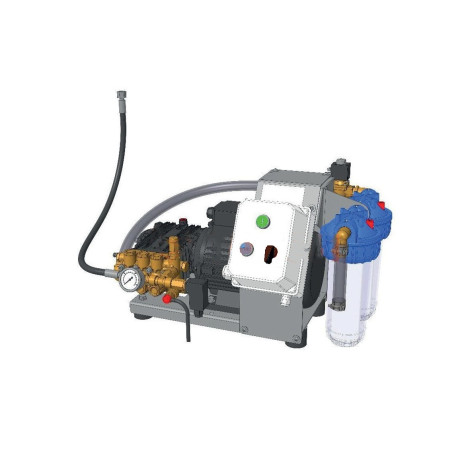

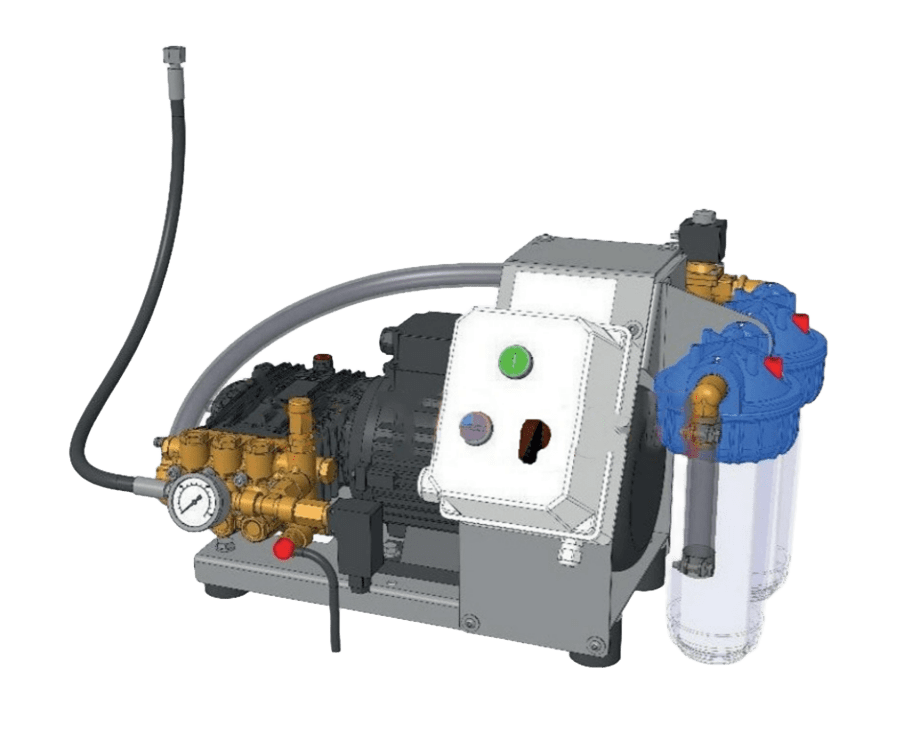

Compact Pump Unit type Exc 6 - 7 l/min - 70 bar - 3x400V - 50/60Hz Lubing (7241)

ExC compact pump 6-7 l/min - 70 bar, 3x400 V, 50/60 Hz

The ExC 7241 is a high-tech compact pump unit with a flow rate of 6-7 l/min and an operating pressure of up to 70 bar. Its robust design and integrated control system make it ideal for industrial and technical applications where precise pressure control and stable fluid supply are required.

Benefits include:

• Compact size - takes up minimal space, easy to install.
• High efficiency - up to 7 l/min at 70 bar.
• Automatic control - supports operation via an external controller.
• Built-in protection system - emergency mode in case of critical pressure drop.
• Real-time pressure monitoring - via pressure gauge and pressure switch.
• Robust construction - adapted to work in difficult conditions.

Key features:

• Capacity: 6-7 l/min
• Working pressure: up to 70 bar
• Power supply: 3x400 V, 50/60 Hz
• Controls: pressure regulator, pressure switch, pressure gauge
• Filtration: Three-stage filter unit (5 µm, 1 µm and main valve)
• Operating modes: manual/automatic
• Protection: Emergency shutdown in case of incorrect pressure rise or fall

Application:

• Lubrication systems - stable supply of lubricants in industrial plants.
• Cooling circuits - efficient circulation of fluids in heavily loaded mechanisms.
• High pressure washing systems - cleaning of parts, mechanisms and equipment.
• Hydraulic processes - precise control of fluid flow in process systems.

ExC 7241 is the ideal solution for smooth operation and stable control of fluid flow in industrial systems.
