Lubing Lubrication pipe 3 meters in assembly with 15 top-combinipels 4035

Description

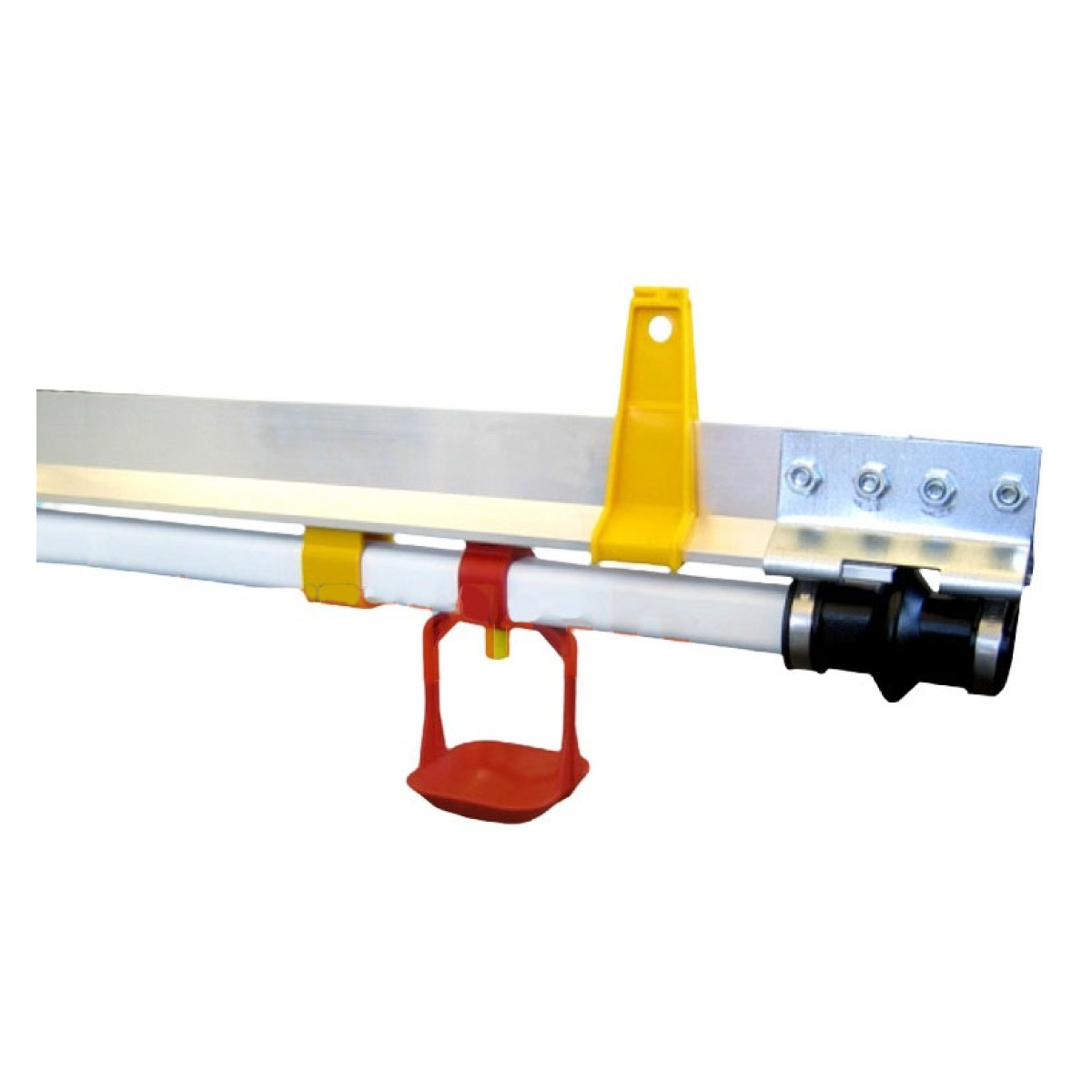

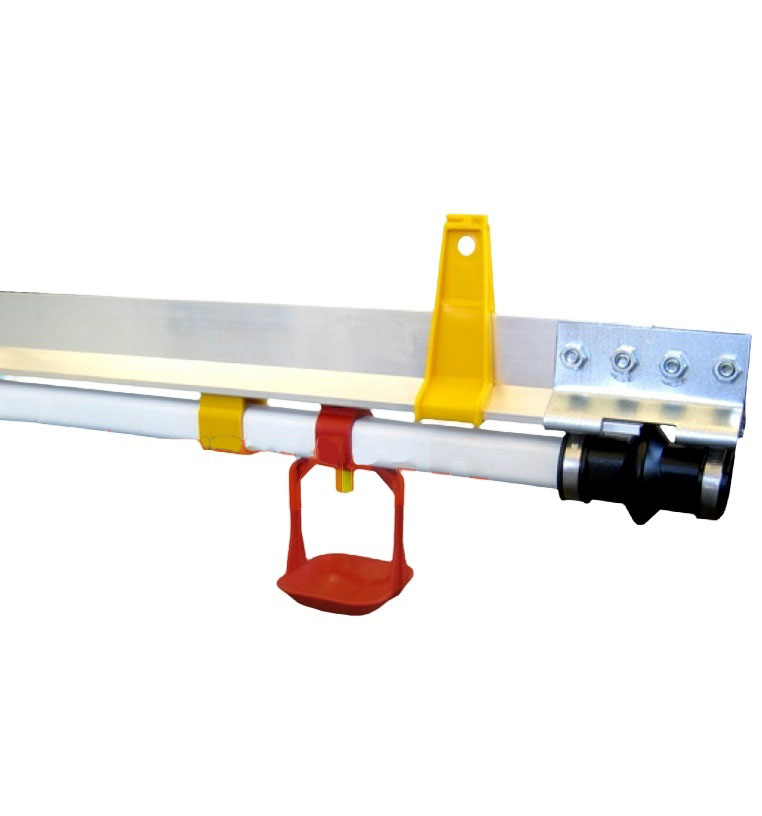

The filling pipe assembly is a plastic pipe with holes, into which nipples (auto-drinkers) are machine-screwed. Drip cups can be attached under the nipples. A coupling made of acid-resistant rubber is installed at the end of each pipe, which connects two adjacent pipes. The coupling is fixed on the pipes with the help of two clamps (clips) made of stainless steel. Because feeding lines at poultry enterprises have a long length (up to 90 m), an aluminum delta profile ("dovetail") or a round galvanized pipe 3/4" is installed on top of the pipe using special fasteners, which provides the necessary rigidity during operation and helps to reduce to A plastic holder with a hole in the upper part is installed on each delta profile. 4032 Pouring pipe 22x22 mm, length 3 (three) meters, with 8 top combinipels (art. 4024-00) and with small drip cups (art. 4612-01) 4033 Filling pipe 22x22 mm, length 3 (three) meters, with 10 top-combi
