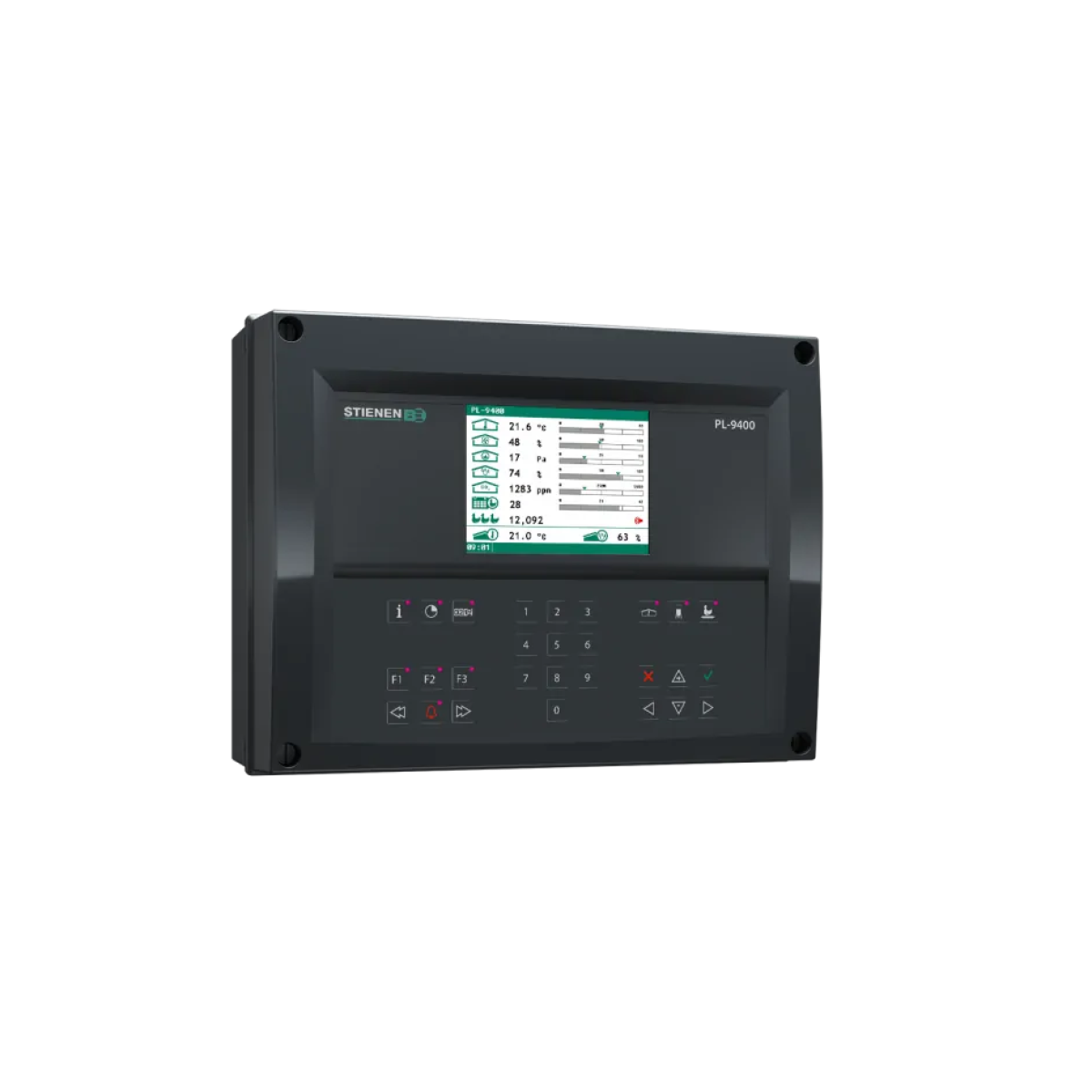

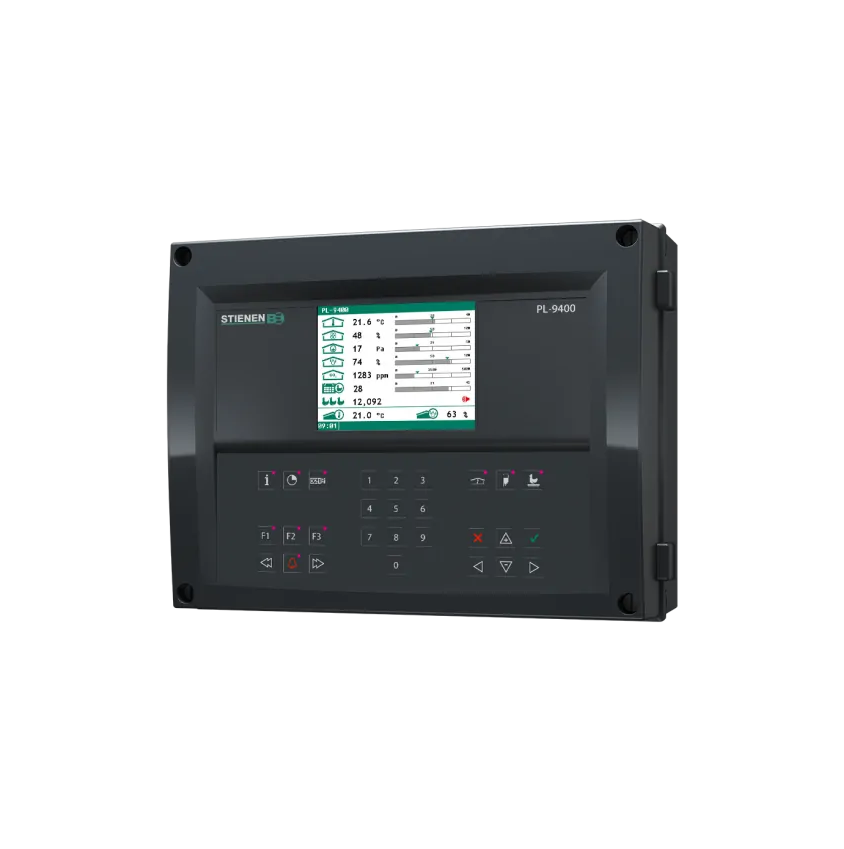

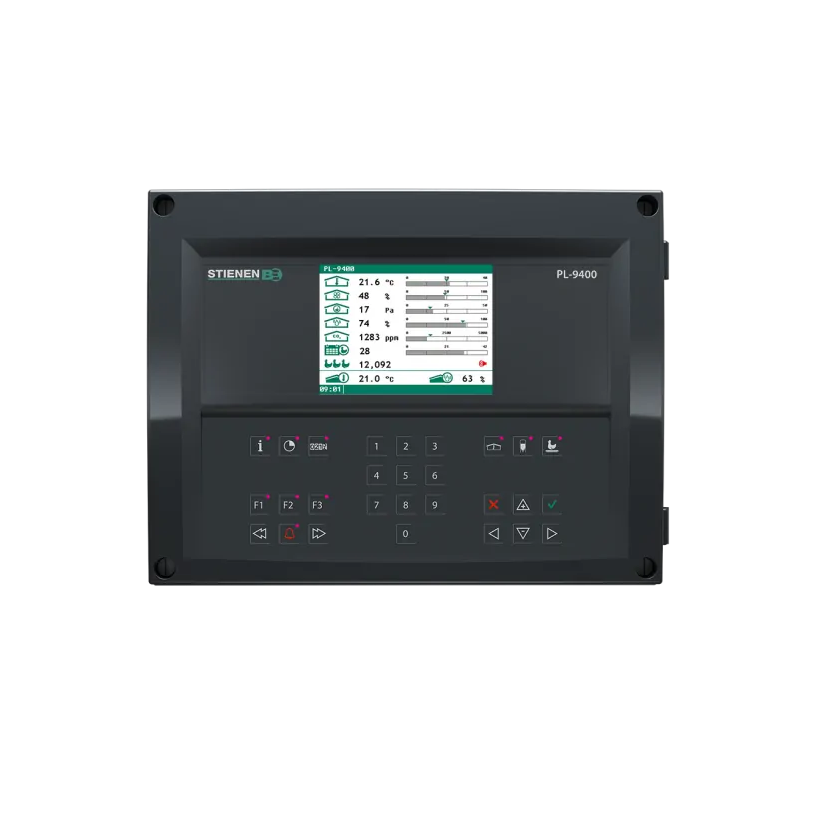

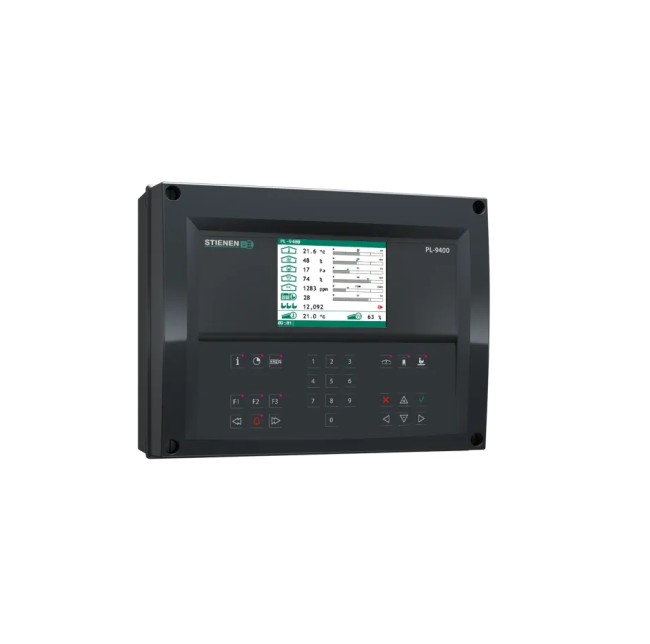

Microclimate computer in a poultry house 8 zones PL-9400 Stienen (21.00.05)

Microclimate computer in a poultry house 8 zones PL-9400 Stienen (21.00.05)

In stock in Europe
Article: 21.00.05
Write a review
220 356 ₴

Features

Brand
12Vdc/15mA for measuring fan
1
24Vdc/85mA for AQC
1
Communication via RS485
+
Connection communication module bus
3
Connection FN-bus
1

Description

This clear and user-friendly poultry management computer is designed to be the heart of each type of modern poultry farm. The PL-9400 manages and controls the quality of life of animals in order to achieve optimal performance results. The climate and management computer collects all data from Stienen systems for life bird weighing, feed weighing, silo weighing, egg counting and heat exchangers and processes this data into comprehensible tables and graphs. The graphical representation of parameters such as temperature, water, feed, weight, production, relative humidity (RH), carbon dioxide (CO2) and ammonia (NH3) provide you all the important management information at a glance. The PL-9400 is easy to operate using the function keys. Because unused functions are not displayed, the control system is kept easy and transparent. Thanks to the crisp and modern user interface all vital processes in the poultry house can be controlled, monitored and managed easily.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

Features Microclimate computer in a poultry house 8 zones PL-9400 Stienen (21.00.05)

12Vdc/15mA for measuring fan
1
24Vdc/85mA for AQC
1
Communication via RS485
+
Connection communication module bus
3
Connection FN-bus
1

Reviews (0)

There are no reviews for this product.

Buy together with Microclimate computer in a poultry house 8 zones PL-9400 Stienen (21.00.05)

Specification Microclimate computer in a poultry house 8 zones PL-9400 Stienen (21.00.05)

12Vdc/15mA for measuring fan
1
24Vdc/85mA for AQC
1
Communication via RS485
+
Connection communication module bus
3
Connection FN-bus
1
Emergency contact 24V/2A
+
Inputs 0-10Vdc for RH sensor, pressure sensor, etc.
4
Outputs 0-10V
8
Producing country
Netherlands
Pulse inputs for counters, measering fans etc
5
Relay outputs 230Vac/2A
7
Temperature sensors
10
