PPV wire 3x1.5 EUROPAN CABLE (915)

Description

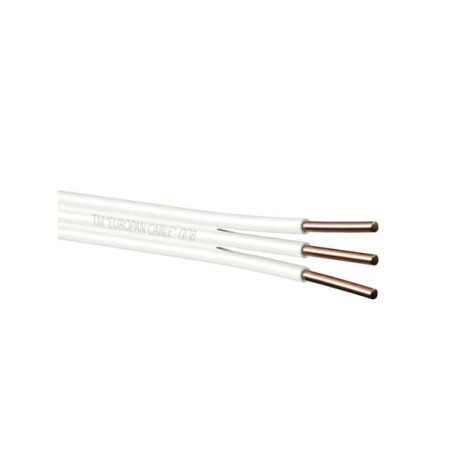

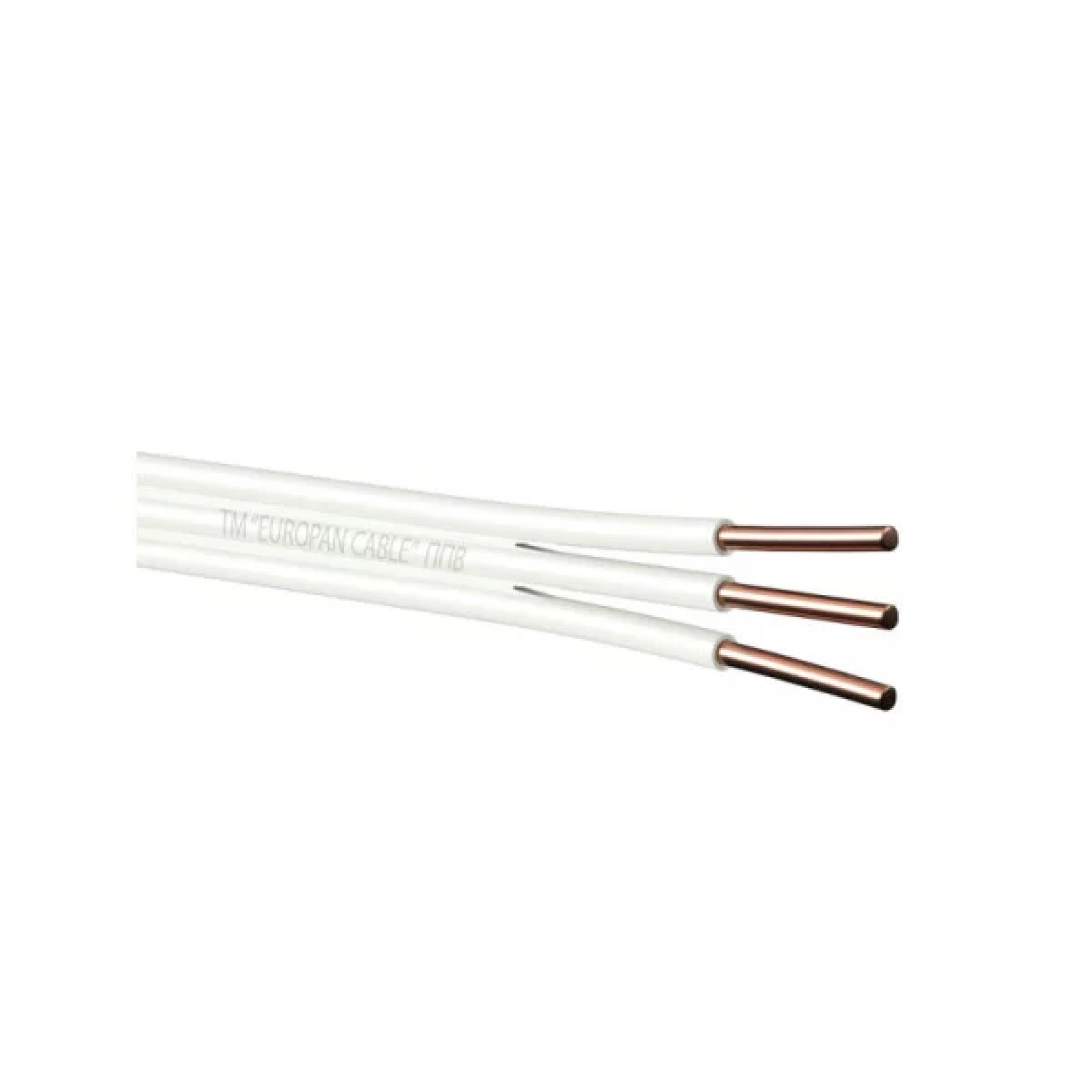

PPV wire 3x1.5 EUROPAN CABLE. PPV – a wire with copper conductors with polyvinyl chloride insulation, flat, with a separable base. Scope Intended for electrical installations with stationary laying in lighting and power networks, as well as for the installation of electrical equipment, machines, mechanisms and machine tools for a nominal voltage of up to 450 V (for networks up to 450/750 V) with a frequency of up to 400 Hz or a constant voltage of up to 1000 V. Used for construction, distribution and lighting networks, for connecting stationary consumers, performing hidden and external wiring in residential and industrial construction. Laying in boxes, cable channels is allowed. The wire is used only for inflexible and fixed installation of electrical circuits. If external wiring is required, it is necessary to use trays, boxes, cable channels that protect against mechanical damage and ultraviolet radiation. Construction Conductors - copper, single-wire (class 1 DSTU EN 60228), located in the same plane. Insulation made of polyvinyl chloride plastic. Operation The wire is designed for operation at ambient temperatures up to -50°C, relative humidity up to 100% at temperatures up to 35°C. The wire can be laid without preheating at a temperature not lower than - 15°C. The minimum bending radius during installation must be at least 10 times the outer diameter of the wire. The permissible continuous heating temperature of the wire cores during operation is 70°C.
