Feed level sensor, VC12 RTM2410M, Big Dutchman (12-09-0017)
Feed level sensor, VC12 RTM2410M, Big Dutchman (12-09-0017)
Features
All characteristics
Description
The VC12 RTM2410M Big Dutchman sensor detects the presence or level of material, such as feed, grain or bulk products, in silos and feeders. It helps to automatically control feed delivery, preventing overfilling or shortages and reducing product losses. The sensor operates at 24–230 V AC/DC and in a temperature range of –20 °C to +70 °C. It is compatible with automated ventilation, feeding and material control systems in livestock and industrial facilitiesBenefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Capacitive Relay Level Sensor VC12 RTM2410M (Big Dutchman)
The VC12 RTM2410M is a specialized intelligent level sensor specifically designed for original Big Dutchman automated feeding systems. This model is a universal relay solution, capable of operating within an extremely wide voltage range from 24 to 230 Volts (AC/DC). This makes the sensor an ideal drop-in replacement for retrofitting or repairing feeding lines, regardless of the control voltage standard used on-site.

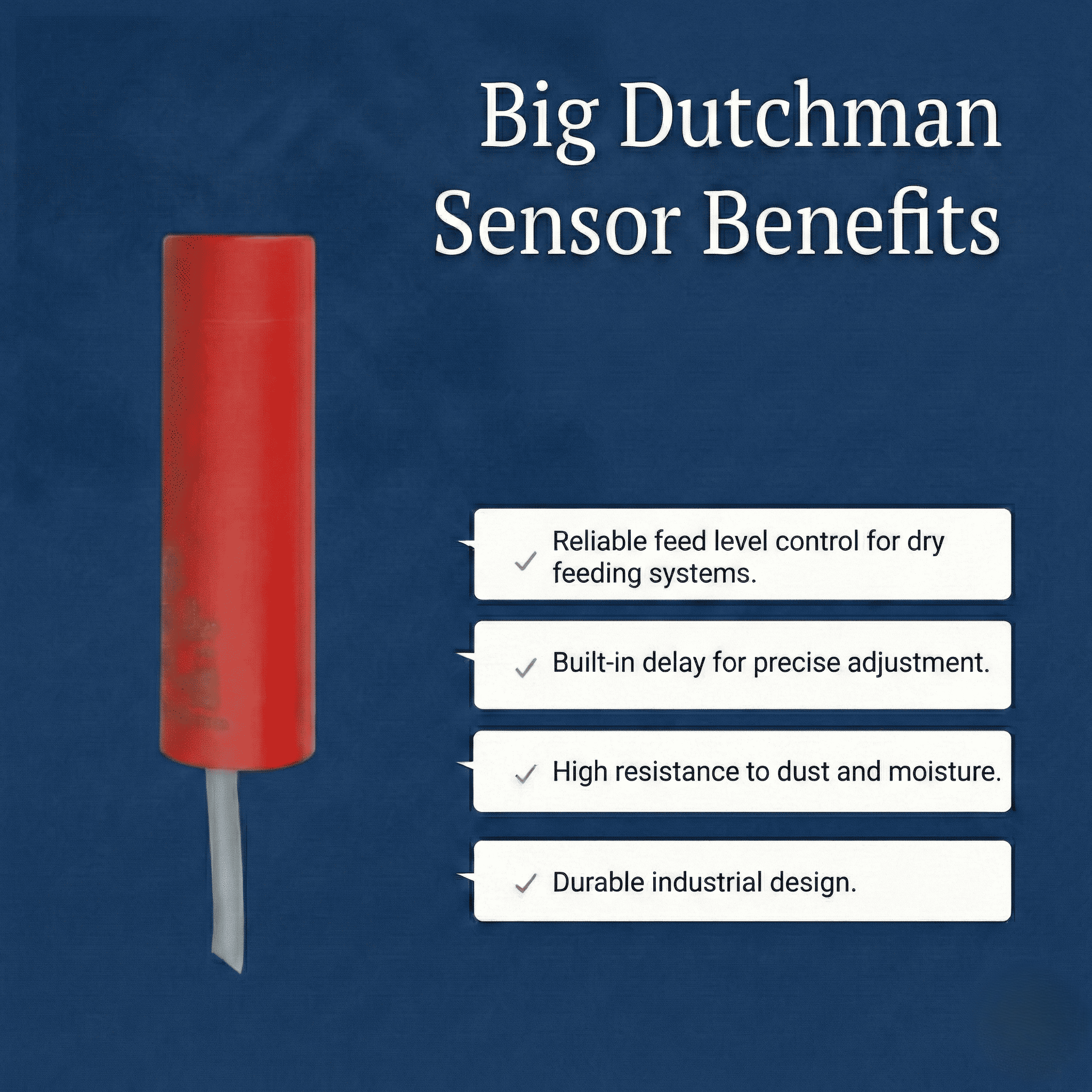

![[Big Dutchman Level Sensor]](https://vada.ua/image/catalog/a-kontent/Big Duchman eng.png)
The primary advantage of the VC12 RTM2410M is its integrated adjustable Off-delay timer (up to 10 minutes) and precise sensitivity calibration. By adjusting two independent trimmers on the housing, the operator can tune the sensor for specific material types and set a delay to prevent frequent motor restarts caused by uneven feed flow or vibrations. The powerful built-in changeover relay ensures direct control of system actuators, maintaining high operational stability even in environments with heavy electrical noise.
Mounting
Installation of the Big Dutchman sensor is performed using its reinforced M30 threaded housing, ensuring excellent mechanical stability. The device is mounted in a 30.5 mm diameter hole and secured with heavy-duty plastic nuts included in the kit, preventing any displacement caused by auger vibration. The design allows for installation directly into bin walls or via specialized sealing glands for external placement. Full encapsulation of the internal electronics and an IP67 protection rating ensure reliable performance in harsh conditions characterized by high humidity and ammonia fumes.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 24 – 230 V AC/DC (Universal) |
| Output Type | Relay (SPDT Changeover contact) |
| Time Delay | Adjustable (up to 10 min) |
| Housing Size | Threaded M30 x 1.5 |
| Protection Rating | IP67 (Fully Sealed) |
Relay Contact Logic
| Contact Type | State with Feed Presence | Primary Use |
|---|---|---|
| NC (Break) | Opens circuit | Stopping the loading line when hopper is full. |
| NO (Make) | Closes circuit | Activating an alarm or signaling lamp. |
VC12 RTM2410M — original reliability and precision for your facility.
