Roof terminal chimney DDV 130/210 HR, HR120 Winterwarm (IA8307)

Roof Flue Terminal DDV 130/210 HR, HR120 Winterwarm (IA8307)

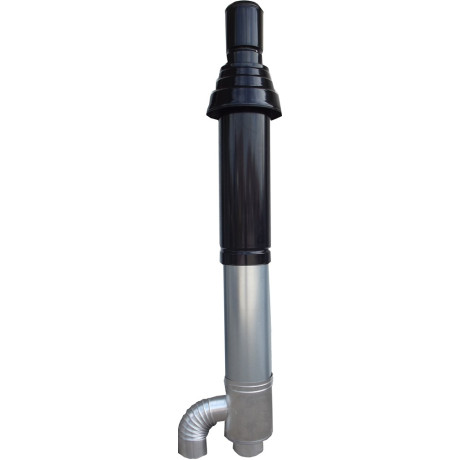

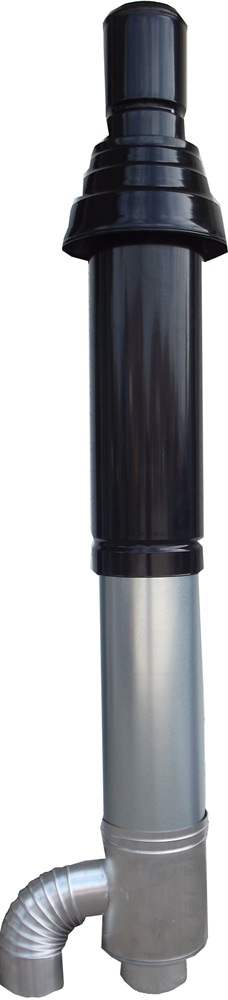

The Winterwarm DDV 130/210 HR, HR120 roof terminal is a concentric outlet element designed for condensing gas heaters. It is compatible with HR models 80..120, providing efficient and safe discharge of combustion products through the roof. Ideal for installations requiring a vertical flue outlet.

How the DDV 130/210 Roof Terminal Works

The terminal ensures the removal of flue gases and the supply of fresh air into the combustion chamber through a concentric system. This improves the heater’s efficiency and guarantees safe operation in enclosed spaces.

• Compatible with Winterwarm HR heaters (HR 80..HR 120)
• Concentric system for air intake and flue gas discharge
• Maximum extension length: 9 meters
• Additional elbows allowed (reduce maximum length)
• Designed for roof installation

Where the DDV 130/210 Roof Terminal Is Used

• Industrial buildings
• Warehouses
• Agricultural facilities
• Livestock buildings
• Large production halls

Installation and Maintenance

Installation

The terminal is installed on the building roof and connected to the heater via a concentric flue system. The set does not include pipes and elbows required for connection to the heater. The maximum extension length is 9 m, but each elbow reduces the length: 45° – by 1 m, 90° – by 1.5 m.

Maintenance

Regularly check the joints for leaks and clean the system from soot and condensate. Use only recommended system components for safe operation.

Frequently Asked Questions

Which models is it compatible with?
→ For condensing heaters Winterwarm HR 80..HR 120.

What is the maximum extension length?
→ 9 meters with proper installation.

Are pipes and elbows included?
→ No, they must be purchased separately.

Can elbows be added?
→ Yes, but each elbow reduces the maximum length (45° – by 1 m; 90° – by 1.5 m).
