RW1600-3S-180600603CP86 Ridder (536825)
RW1600-3S-180600603CP86 Ridder (536825)
In stock in Europe
Article: 536825
153 477 ₴
Features
Brand
A turning point
1600 Nm
Current frequency, Hz
60
Feature
Сable curtain system
IP protection class
Ip54
Number of phases
3
All characteristics
Description

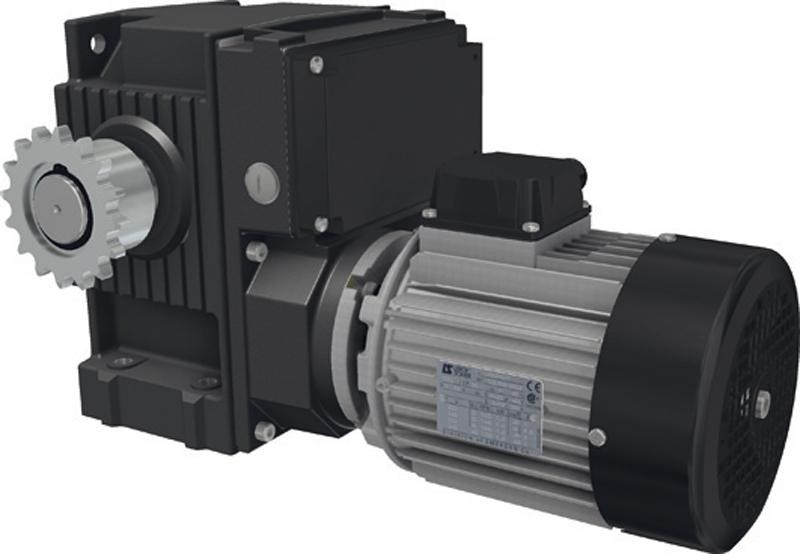

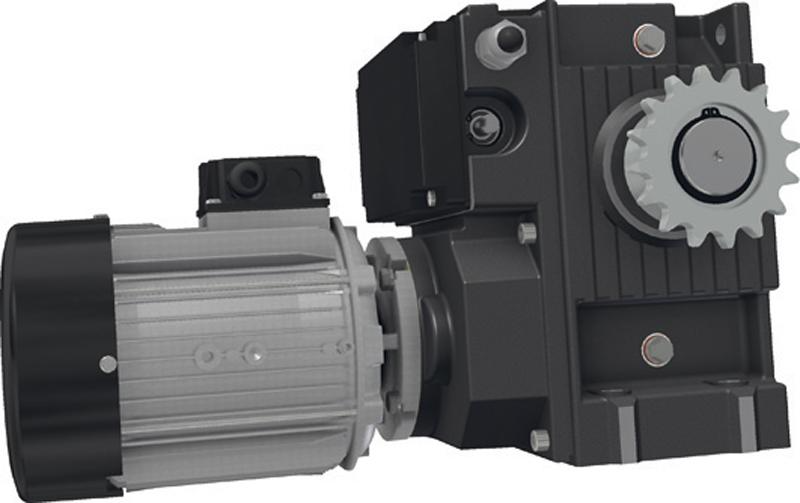

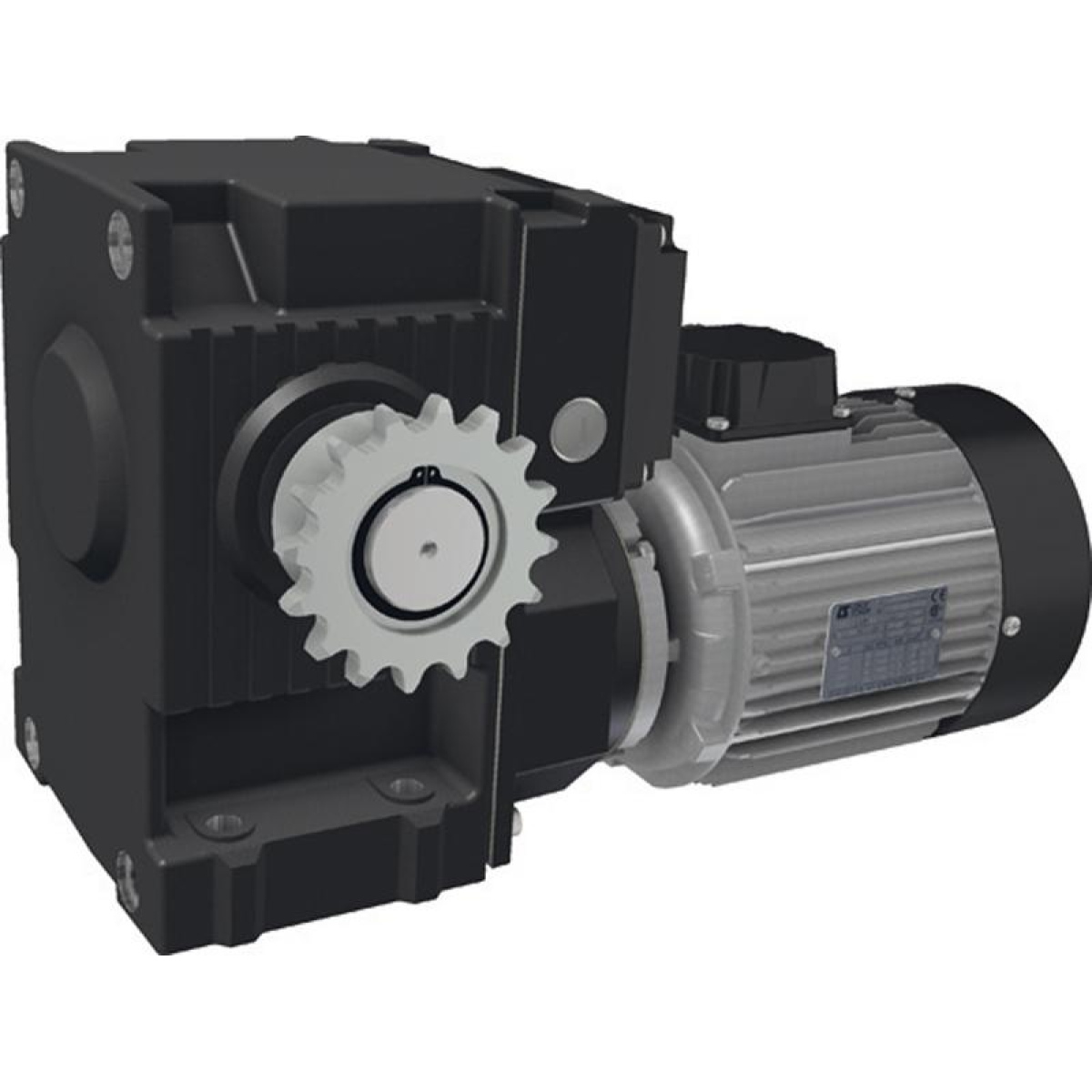

The RW1200/1600/2000S motor gearboxes are maintenance-free drives for wire screen systems in greenhouses.¶All RW1200S/1600/2000S motor gearboxes are fitted with a self-braking worm gear transmission. This transmission ensures that the output shaft is braked when the drive unit is stopped. The combination of the carefully mutually-tuned gear and wheel transmissions means that the drive runs almost silently.¶The RW1200/1600/2000S motor gearboxes are equipped with a patented inbuilt linear limiting switch system with control and safety switches with a high degree of switch precision. The maximum switching range for the limiting switch system amounts to 86 revolutions of the drive shaft. The optional RPU PositioningUnit accurately monitors the current position of a drive system and transmits this data back to your climate computer or controller.¶The RW1200/1600/2000S motor gearboxes are finished with a graphite-grey powder coating and are supplied with locking bolts and washers.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features RW1600-3S-180600603CP86 Ridder (536825)
A turning point
1600 Nm
Current frequency, Hz
60
Feature
Сable curtain system
IP protection class
Ip54
Number of phases
3
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with RW1600-3S-180600603CP86 Ridder (536825)
Specification RW1600-3S-180600603CP86 Ridder (536825)
A turning point
1600 Nm
Current frequency, Hz
60
Feature
Сable curtain system
IP protection class
Ip54
Number of phases
3
Producing country
Netherlands
Rotation speed, rpm
3
Supply voltage
600 V
Temperature range
from 0° to 60°C
Weight, kg
56
