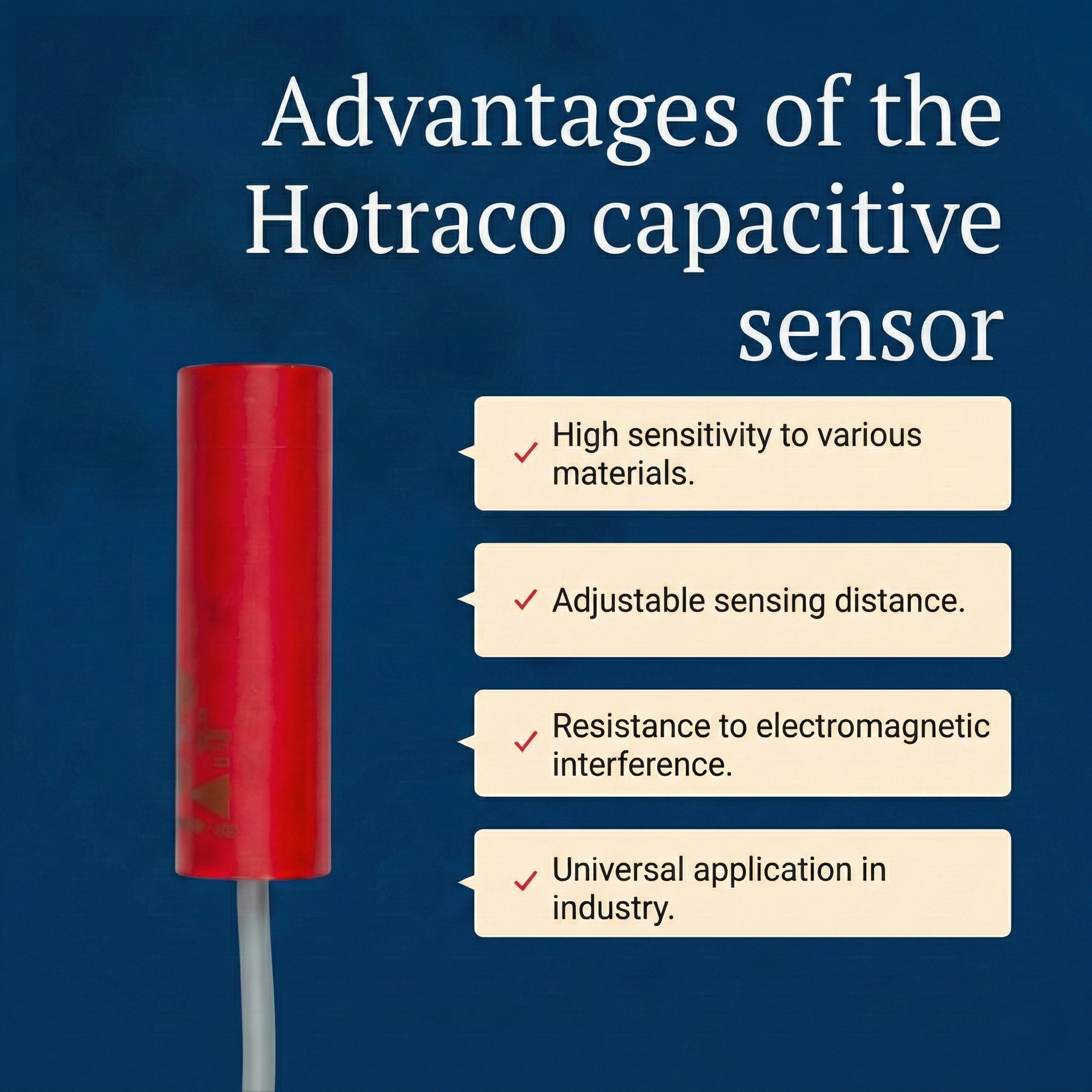

Hotraco NS-24-230-TA Universal Capacitive Relay Sensor (24–230V AC/DC)
The Hotraco NS-24-230-TA is a high-performance intelligent level sensor designed for professional feeding system automation. The standout feature of this model is its absolute versatility: with a multi-voltage power supply, it operates stably across 24 to 230 Volts (both AC and DC). This makes the sensor an ideal solution for retrofitting poultry and livestock farms that utilize varying control voltage standards.
![[Hotraco NS-24-230-TA Sensor]](https://vada.ua/image/catalog/a-kontent/Hotraco en.png)
The sensor is equipped with an integrated adjustable off-delay timer and fine-tuning sensitivity control. This allows operators to adapt the device for any type of dry material—from fine meal to heavy pellets and grain. The powerful built-in changeover relay enables direct control of auger motors or alarm systems, ensuring high system reliability without the need for additional intermediate modules or PLC interfaces.
Mounting
Installation of the Hotraco NS-24-230-TA is highly secure thanks to its reinforced M30 threaded housing. The device is mounted in a 30.5 mm diameter hole and locked with the included heavy-duty plastic nuts, preventing displacement caused by auger vibrations. The design supports mounting directly into hopper walls or through specialized sealing glands. Full encapsulation of the electronics provides IP67 protection, allowing the sensor to operate reliably in humid and dusty farm environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 24 – 230 V AC/DC (Universal) |
| Output Type | Relay (Changeover contact SPDT) |
| Adjustment | Sensitivity + Off-delay timer |
| Protection Rating | IP67 (Hermetic) |
| Housing Size | Threaded M30 |
Hotraco NS-24-230-TA — professional reliability for uninterrupted feeding.
