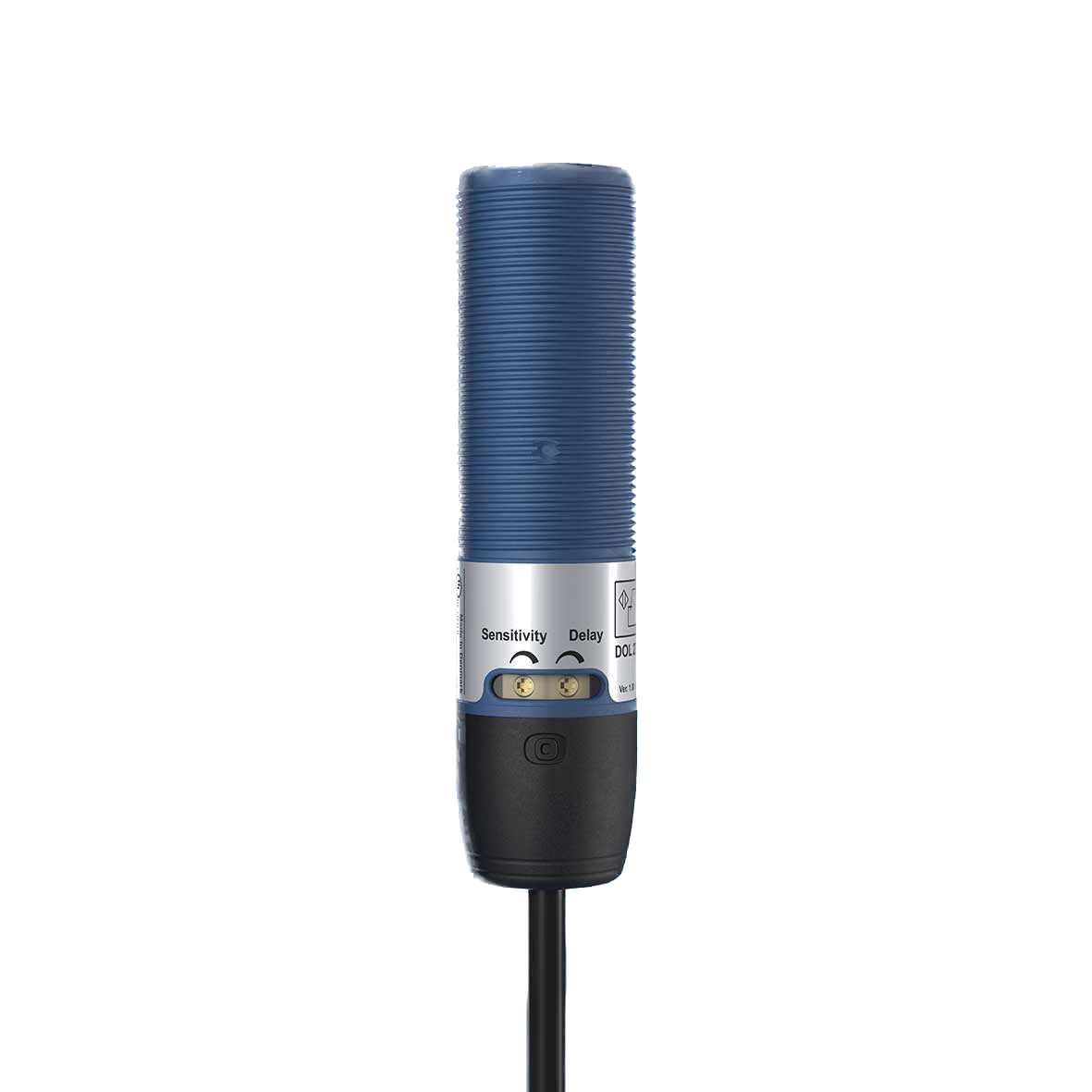

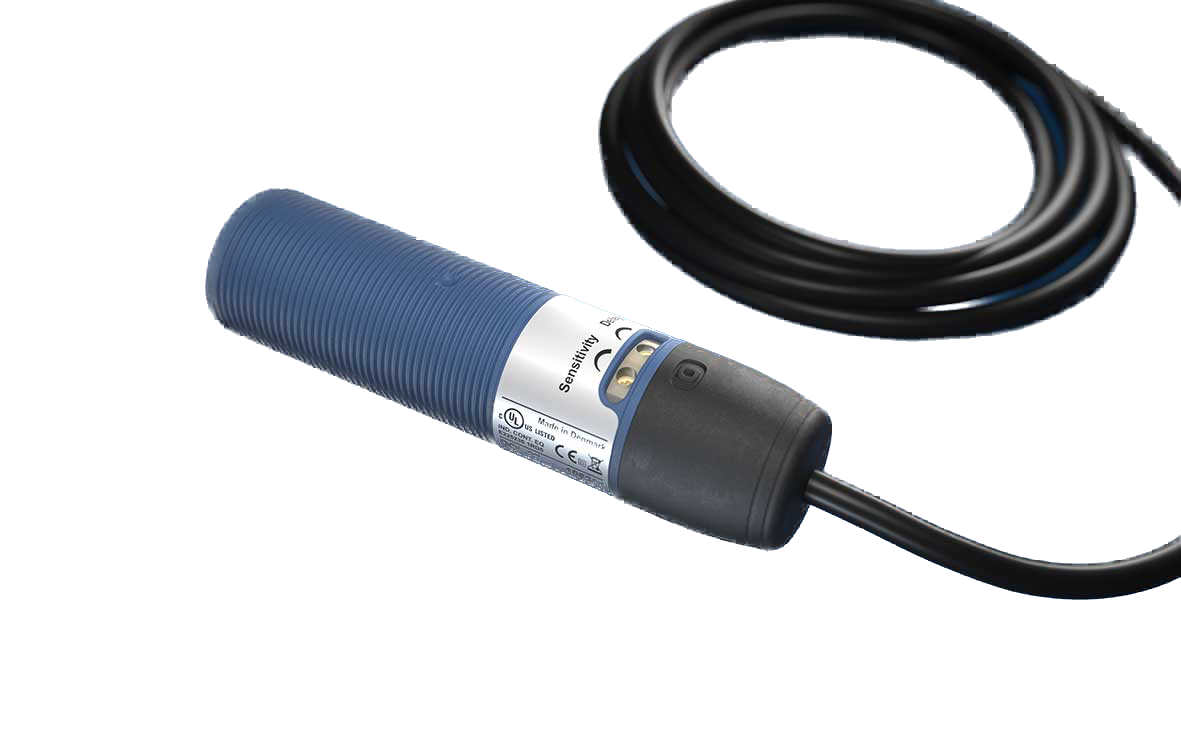

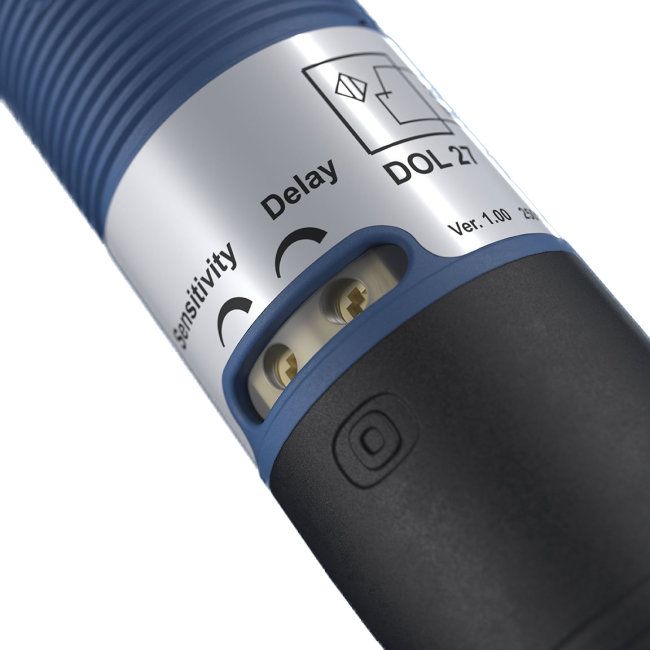

Capacitance sensor iDOL 27 CA-P-D30-NF-CA-SCR (105383)
Capacitance sensor iDOL 27 CA-P-D30-NF-CA-SCR (105383)
Features
All characteristics
Description
The iDOL 27 sensor is a 30 mm capacitive proximity sensor designed to detect loose and solid materials. The DOL 27 and iDOL 27 sensors are available in SCR, PNP and NPN output versions. The sensors are suitable for use in conjunction with contactors, relays, PLCs, etc. in the agricultural and industrial sectors, in particular in enterprises for grain level measurement and effective feed level control in poultry houses, pig houses, and cowsheds. SCR output versions are available in 2-wire versions, as well as PNP and NPN in 4-wire versions. LED indicators display the state of the capacitive sensors, providing reliable monitoring of filling and emptying processes.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Intelligent Capacitive Sensor iDOL 27 CA-P-D30-NF-CA-SCR (20–280V AC/DC)
The iDOL 27 CA-P-D30-NF-CA-SCR is a state-of-the-art intelligent level sensor housed in a reinforced 30 mm (M30) body. This NF (Non-Flush) version, featuring a protruding active head, provides an extended detection field, making it the ideal solution for monitoring grains and compound feeds in large silos and central conveyors. Thanks to its universal 20–280V AC/DC power supply, the device integrates seamlessly into any automation network.
![[iDOL 27 M30 Sensor]](https://vada.ua/image/catalog/DOL/DOL%2027/%20%D1%82%D0%BB%D0%BE%20%D1%83%20DOL27_M30_Detail_0002_Web.png)

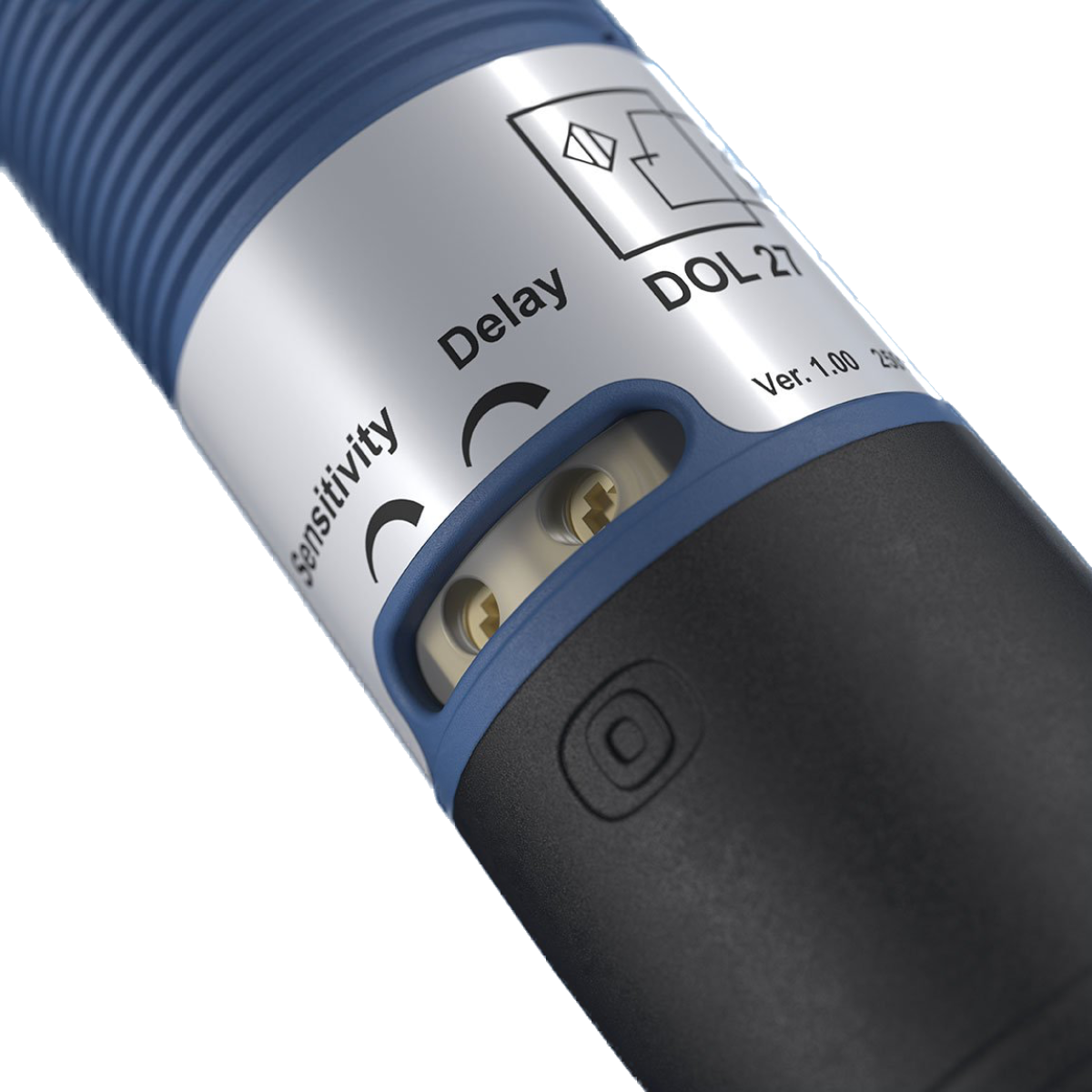

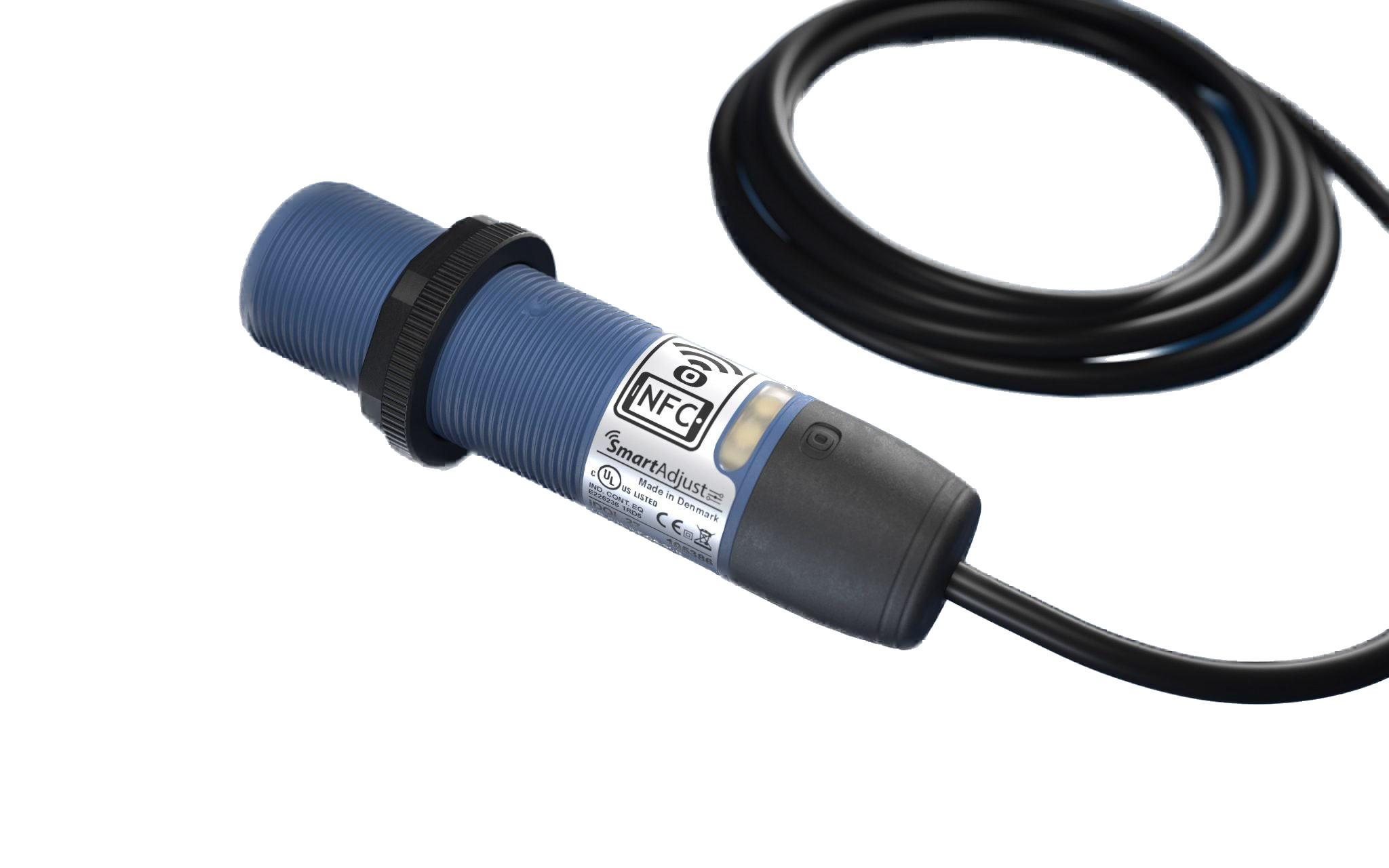

The primary technological advantage of the iDOL 27 series is the integrated NFC interface. This allows operators to wirelessly configure sensitivity, delay timers, and operating logic (Make/Break) via smartphone using the SmartAdjust app. The absence of mechanical trimmers ensures a true IP69K protection rating, while the "A+" class shielding provides maximum immunity to electromagnetic interference from mobile phones and power transients.
![[iDOL 27 Installation]](https://vada.ua/image/catalog/DOL/DOL%2027/%20%D1%82%D0%BB%D0%BE%20%D1%83%20iDOL-27_M30_Environ_0000.png)
Mounting
Installation of the iDOL 27 is highly reliable thanks to its reinforced M30 threaded housing. The sensor is typically installed in a 30.5 mm diameter hole and secured with heavy-duty plastic nuts, ensuring a rigid fit that resists machine vibration. The design supports mounting directly into hopper walls or through specialized sealing glands and external flanges. The Make/Break optional logic allows the operator to switch between NO and NC modes through the app without hardware modifications.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 20 – 280 V AC/DC (Universal) |
| Output Type | SCR (2-wire connection) |
| Operating Logic | Programmable (NO or NC) |
| Configuration | NFC (SmartAdjust App) |
| Protection Rating | IP69K (Hermetic) |
iDOL 27 — intelligent reliability and versatility for professional automation.
