Stienen Cattle Computer (70.05.55)
Stienen Cattle Computer (70.05.55)
In stock in Europe
Article: 70.05.55
99 344 ₴
Features
Brand
0-10V inputs for RH, CO2 and NH3 sensor
4
0-10V outputs for light control
5
Communication via RS485 PCB
+
Corps
ABS
Digital inputs
3
All characteristics
Description

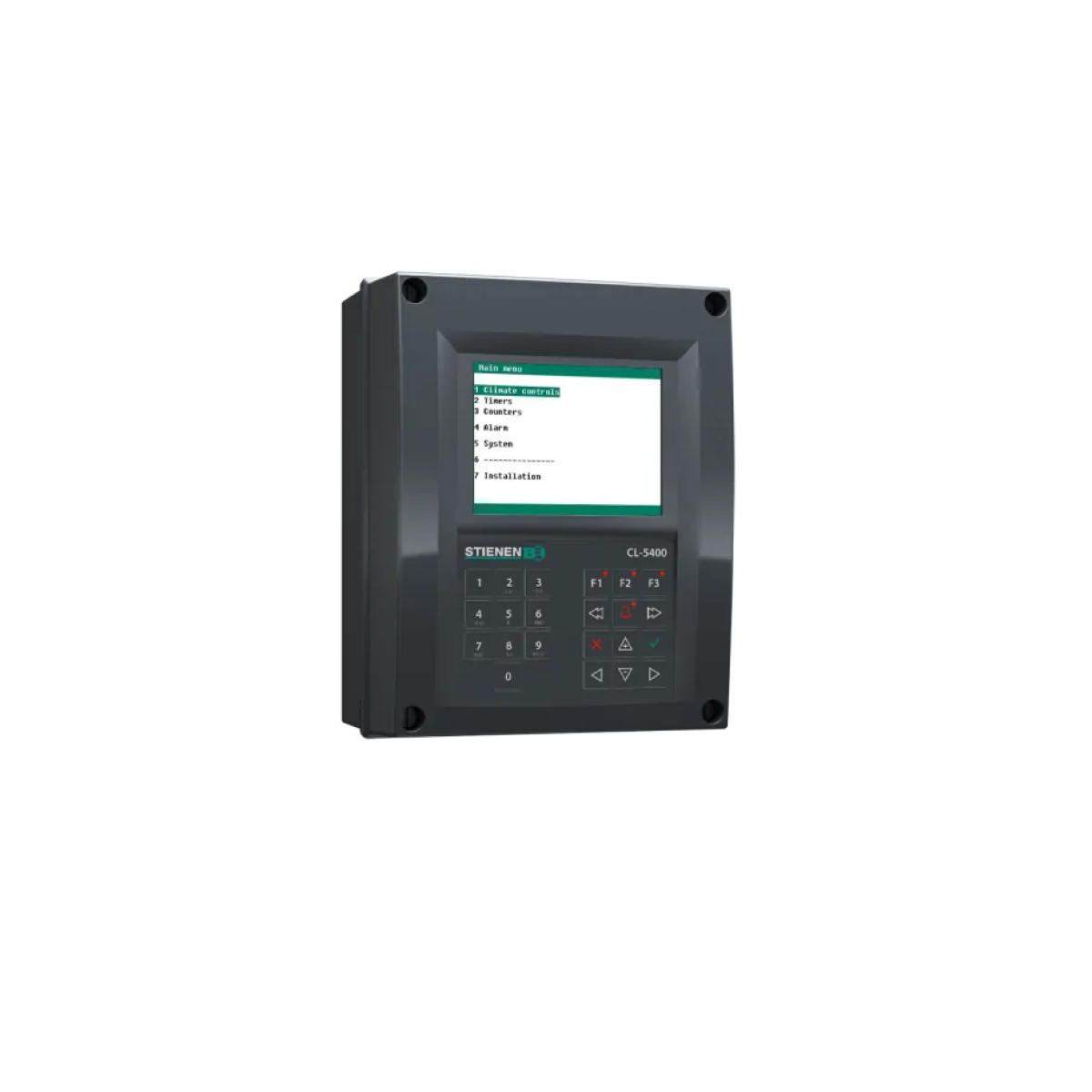

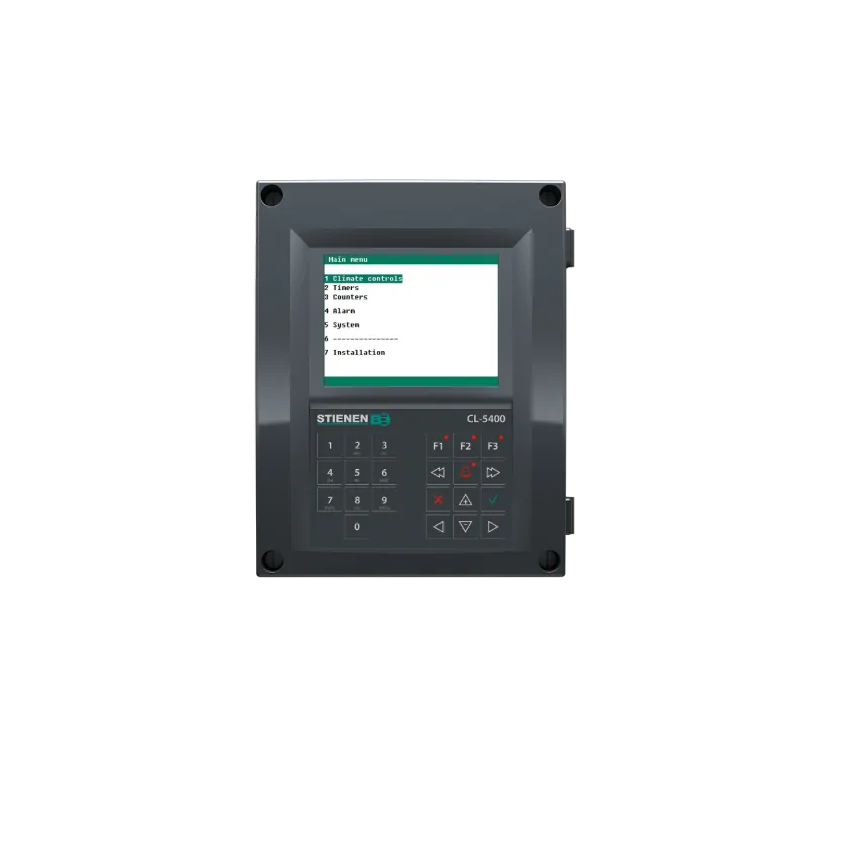

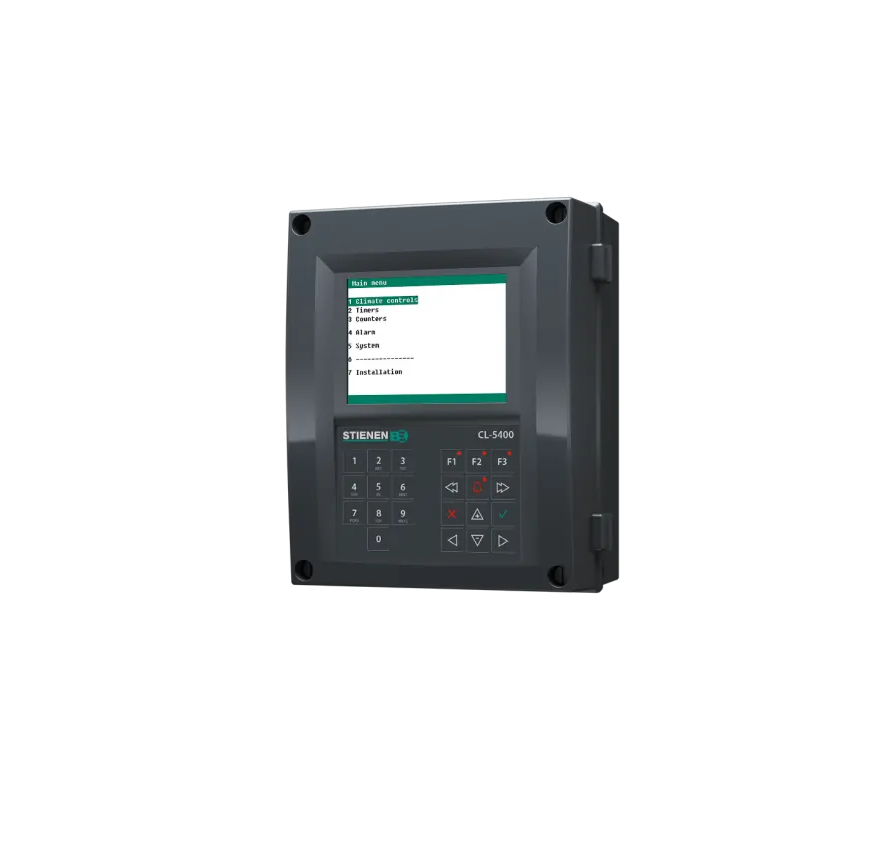

The CL-5400 has almost all possible ventilation controls that exist in modern animal husbandry. This allows you to constantly monitor the climate in the livestock room. The cattle computer has one ventilation group and 12 curtain controls. These controls can be individually programmed and connected to various temperature sensors. The controller raises or lowers the curtains depending on the measured temperature. The CL-5400 also has weather compensation. In combination with a weather station and a rain sensor, the livestock computer ensures that any impact of rain and wind on the climate in the poultry house is minimized. The individual ventilation groups are adjusted according to wind speed, wind direction and rain, after which the corresponding curtains are opened/closed. The weather station can communicate with several houses at the same time. To guarantee optimal safety and long curtain life, the CL-5400 has an anti-squeeze function and daily automatic and short-term opening/closing.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features Stienen Cattle Computer (70.05.55)
0-10V inputs for RH, CO2 and NH3 sensor
4
0-10V outputs for light control
5
Communication via RS485 PCB
+
Corps
ABS
Digital inputs
3
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Stienen Cattle Computer (70.05.55)
Specification Stienen Cattle Computer (70.05.55)
0-10V inputs for RH, CO2 and NH3 sensor
4
0-10V outputs for light control
5
Communication via RS485 PCB
+
Corps
ABS
Digital inputs
3
Error relay 24Vac/2A
1
Functional expansion using module bus
+
Height, mm
155
IP protection class
Ip54
Length, mm
230
Loading
30VA
max. ambient temp.
40°C
min. ambient temp.
-5°C
Power supply
230Vac - 50/60Hz
Power supply 12Vdc/25mA
1
Power supply 24Vdc/80mA
2
Producing country
Netherlands
Relay outputs
9
Temperature inputs
5
Weather station
+
Width, mm
320
Stienen Cattle Computer (70.05.55)
99 344 ₴
Reviews Stienen Cattle Computer (70.05.55)
There are no reviews for this product.
Stienen Cattle Computer (70.05.55)
99 344 ₴
Questions Stienen Cattle Computer (70.05.55)
There are no reviews for this product.
Stienen Cattle Computer (70.05.55)
99 344 ₴
