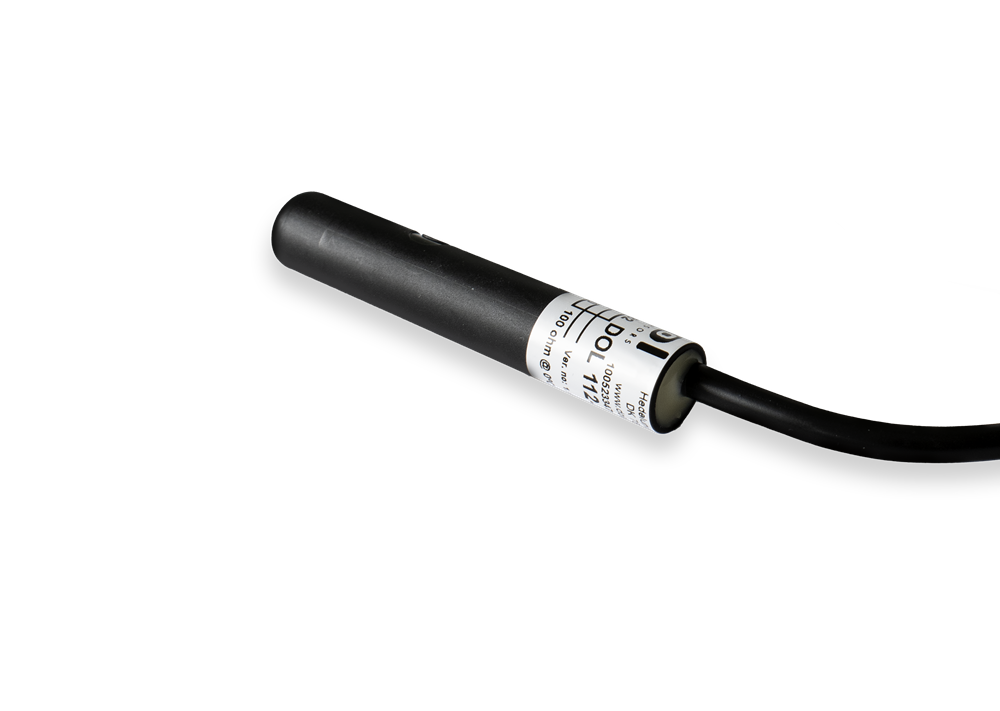

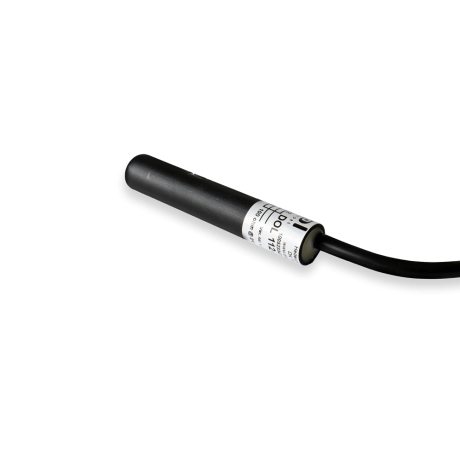

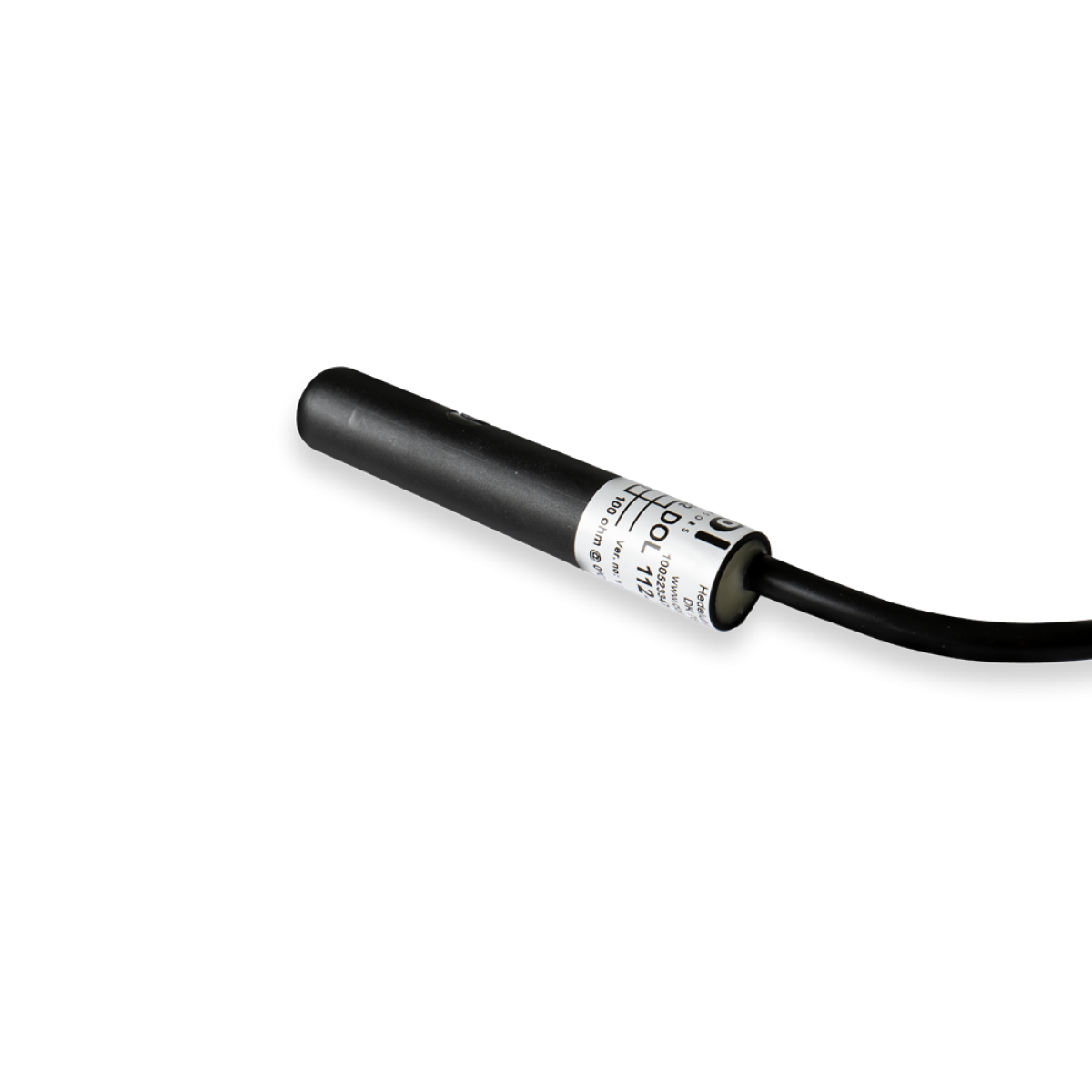

Temperature sensor, DOL 112-PT100, (2-wire) (140382)
Temperature sensor, DOL 112-PT100, (2-wire) (140382)
In stock in Europe
Article: 140382
954 ₴
Features
Brand
Accuracy
0 - 40 °C: ± 0.5 °C
Cable
Two-wire, 1.4 m, ø5 mm
IP protection class
68ip
Measuring range
-40 °C до +100 °C
Output
84-139 Ω
All characteristics
Description
DOL 112-PT100 is a simple cost-effective temperature sensor. The sensor is a robust sensor with the high quality known from other dol-sensors’ sensor solutions. Thus, DOL 112-PT100 is well suited for use in environments where a sturdy design is required. The temperature sensor can operate in temperatures between minus 40 and plus 100 oC and can be used for measuring both inside and outside temperatures. DOL 112-PT100 is IP 68 protected, which means that it is dust tight and has total protection against water ingress, up to and including complete submersion below one meter and for more than 30 minutes. The sensor has an accuracy of +0.5 oC and comes with a 2-wire 1.4-meter ø5 mm cable.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Buy together
2m cable for DOL 16 light sensor with M12 connector and plug
140296
Producing country: Denmark
In stock in Europe
635 ₴
Gateway modem, iDOL 64, LoRa (140355)
140355
Frequency: 50-60 Hz
IP protection class: Ip65
Length of cable: 2 m
Output current: 0–24 mA to 200 mA per output
Producing country: Denmark
Sensor diameter: 82 mm
Sensor length: 378 mm
In stock in Europe
97 332 ₴
Features Temperature sensor, DOL 112-PT100, (2-wire) (140382)
Accuracy
0 - 40 °C: ± 0.5 °C
Cable
Two-wire, 1.4 m, ø5 mm
IP protection class
68ip
Measuring range
-40 °C до +100 °C
Output
84-139 Ω
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Temperature sensor, DOL 112-PT100, (2-wire) (140382)
2m cable for DOL 16 light sensor with M12 connector and plug
140296
Producing country: Denmark
635 ₴
Gateway modem, iDOL 64, LoRa (140355)
140355
Frequency: 50-60 Hz
IP protection class: Ip65
Length of cable: 2 m
Output current: 0–24 mA to 200 mA per output
Producing country: Denmark
Sensor diameter: 82 mm
Sensor length: 378 mm
97 332 ₴
Specification Temperature sensor, DOL 112-PT100, (2-wire) (140382)
Accuracy
0 - 40 °C: ± 0.5 °C
Cable
Two-wire, 1.4 m, ø5 mm
IP protection class
68ip
Measuring range
-40 °C до +100 °C
Output
84-139 Ω
Producing country
Denmark
Recommended measuring current
1 mA
Resistance, Ohm
110 at 25°C
Sensor diameter
14 mm
Sensor length
75 mm
Temperature, use
-40 °C to +100 °C
Time constant
(T63) 5 min. at an air speed of 0.5 m/s
Tolerance class
B, F0,3
Type
Temperature sensor
Weight with cable
80 g
