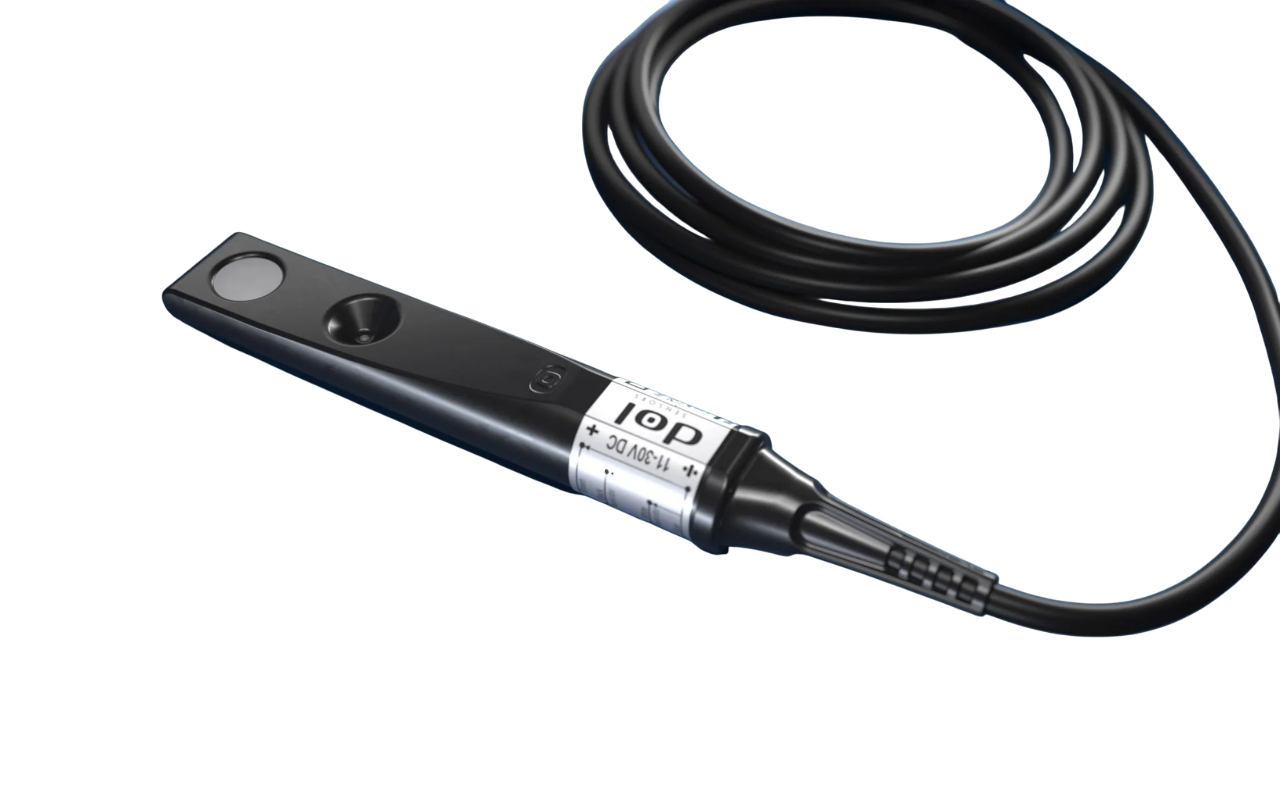

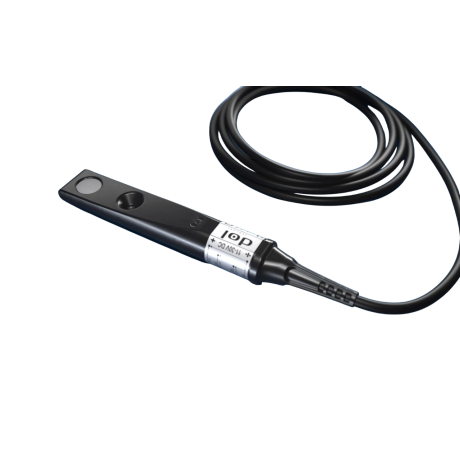

Temperature sensor, DOL 115, 0-10V (140339)
Temperature sensor, DOL 115, 0-10V (140339)
In stock in Europe
Article: 140339
3 134 ₴
Features
Brand
Accuracy
± 0.5 °C (+10 – +40 °C) ± 1.5 °C (- 30 – +60 °C) І ± 0.5 °C (+10 – +40 °C) ± 1.5 °C (0 – +50 °C)
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
0,012 - 0,015
Initial resistance
< 1 Ω
IP protection class
67ip
All characteristics
Description
DOL 115 is a precision sensor for temperature measurement which comes with a 2-meter cable. It is intended for use in livestock houses but is also well suited for a number of industrial applications. The sensor features two analogue outputs with very low output resistances and full protection against short-circuits and wiring failures. DOL 115 temperature sensor is microprocessor-controlled and has a two-color light emitting diode (LED) to communicate the operation status and the error diagnostic.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Buy together
DOL 114 protective cap for sensor 0R
290207
Producing country: Denmark
Size, mm: 200x150x62
Weight, kg: 0.411
In stock in Europe
639 ₴
DROP TUBE Dol drop tube for capacitive sensors
140135
Producing country: Denmark
In stock in Europe
1 005 ₴
Gateway modem, iDOL 64, LoRa (140355)
140355
Frequency: 50-60 Hz
IP protection class: Ip65
Length of cable: 2 m
Output current: 0–24 mA to 200 mA per output
Producing country: Denmark
Sensor diameter: 82 mm
Sensor length: 378 mm
In stock in Europe
97 332 ₴
Features Temperature sensor, DOL 115, 0-10V (140339)
Accuracy
± 0.5 °C (+10 – +40 °C) ± 1.5 °C (- 30 – +60 °C) І ± 0.5 °C (+10 – +40 °C) ± 1.5 °C (0 – +50 °C)
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
0,012 - 0,015
Initial resistance
< 1 Ω
IP protection class
67ip
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Temperature sensor, DOL 115, 0-10V (140339)
DOL 114 protective cap for sensor 0R
290207
Producing country: Denmark
Size, mm: 200x150x62
Weight, kg: 0.411
639 ₴
Gateway modem, iDOL 64, LoRa (140355)
140355
Frequency: 50-60 Hz
IP protection class: Ip65
Length of cable: 2 m
Output current: 0–24 mA to 200 mA per output
Producing country: Denmark
Sensor diameter: 82 mm
Sensor length: 378 mm
97 332 ₴
Specification Temperature sensor, DOL 115, 0-10V (140339)
Accuracy
± 0.5 °C (+10 – +40 °C) ± 1.5 °C (- 30 – +60 °C) І ± 0.5 °C (+10 – +40 °C) ± 1.5 °C (0 – +50 °C)
Cable
2 m 3 x 22 AWG / 0.34 mm²
Current strength, A
0,012 - 0,015
Initial resistance
< 1 Ω
IP protection class
67ip
Loading
> 500 Ω - < 10 MΩ
Maximum cable length
(0.75 mm2) 100 m | (1.5 mm2) 200 m
Maximum current
20 mA
Measurement, shipment
275 x 200 x 20 mm
Measuring range
- 40 °C – +60 °C I 0 °C – +50 °C
Output
0.1 В/°C; 0 °C at 4 В І 0.2 В/°C; 0 °C at 0 В
Producing country
Denmark
Recommended load
≥ 100kΩ
Sensor length
154 mm
Supply current
12 mA no load, 55 mA max load
Supply voltage
11 - 30 V DC
Temperature, storage
-40°C – 60°C
Temperature, use
-30 - +60 °C
Time constant
6 min. at 0.5 m/s air speed
Type
Temperature sensor
Weight with cable
161 g
Temperature sensor, DOL 115, 0-10V (140339)
3 134 ₴
Reviews Temperature sensor, DOL 115, 0-10V (140339)
There are no reviews for this product.
Temperature sensor, DOL 115, 0-10V (140339)
3 134 ₴
Questions Temperature sensor, DOL 115, 0-10V (140339)
There are no reviews for this product.
Temperature sensor, DOL 115, 0-10V (140339)
3 134 ₴
Similar products
CO2 sensor, DOL 119 (140330)
140330
Accuracy (CO2): (400 - 10000) 50 ppm + 5% of the measured value AND (400 – 5000) 50 ppm + 5% of the measured value
Cable: 4 x 0.34 mm² (4 x AWG22)
Current strength, A: 8 mA no load, 55 mA with max. load
Humidity: 0 – 95%RH (non-condensing)
Initial resistance: < 1 Ω
IP protection class: IP67 (DIN 40050-9), NEMA 1, 3, 4, 6
Limited power output per port: 20ma
In stock in Europe
19 492 ₴
19 492 ₴

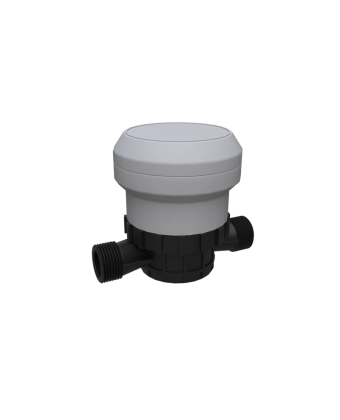

Water meter, DOL 90, 1 IMP/1 l (130200)
130200
Water meter
Connection type, thread: 1/2''
Max. flow quantity, l/h:: 2500
Maximum pressure: 16 bar
Nominal water flow, l/h:: 1500
Producing country: Denmark
Protection level: Ip68
In stock in Europe
8 455 ₴
8 455 ₴

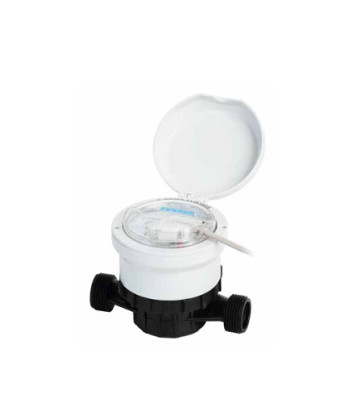

Water meter, DOL 90, 1 IMP/5 l (130207)
