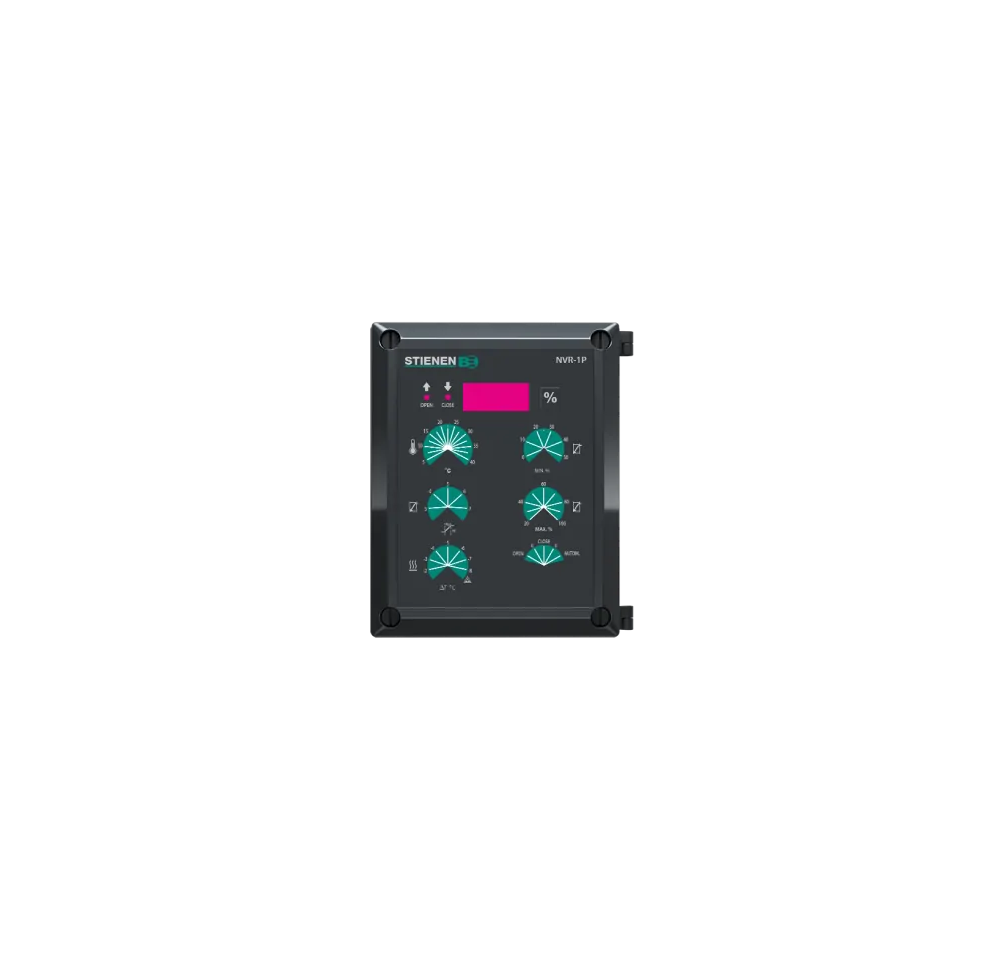

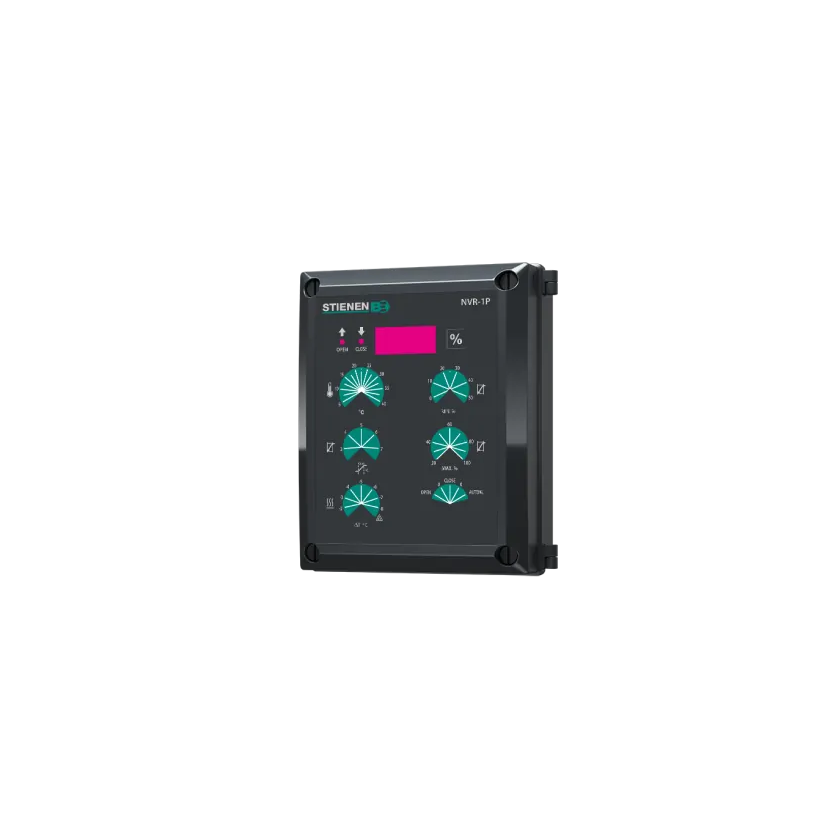

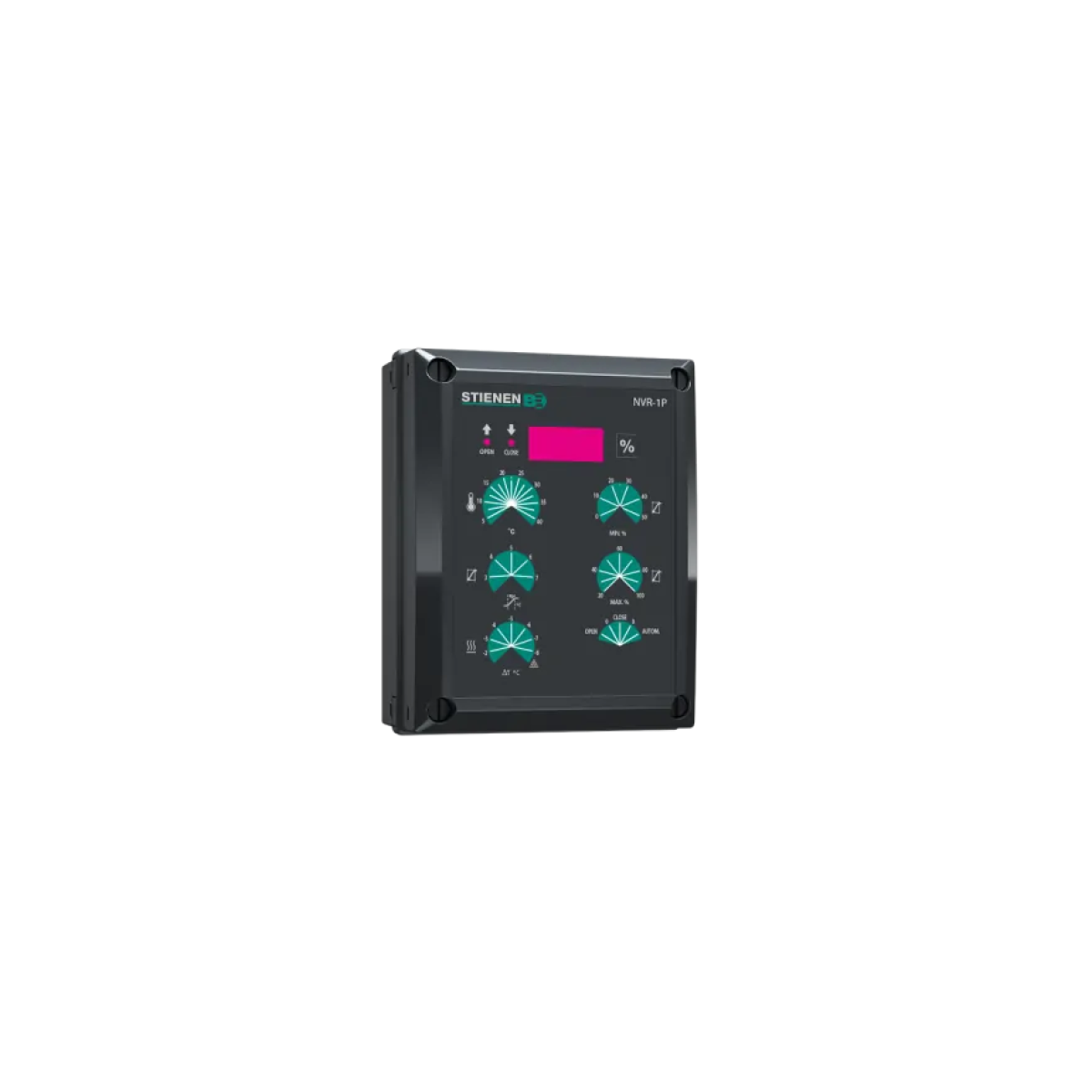

Ventilation controller 1 curtain NVR-1 Stienen (70.01.50)
Ventilation controller 1 curtain NVR-1 Stienen (70.01.50)
In stock in Europe
Article: 70.01.50
29 464 ₴
Features
Brand
Bandwidth setting
-
Delay setting
0,5 - 4 min.
For use on a motor with position feedback
+
Frost protection
-
Heating contact, 230Vac/2A
-
All characteristics
Description
The NVR-1 controls the ventilation valves or curtains on the basis of pre-set temperatures. If the temperature in the house drops below the pre-set value, the controller will cause the valves or curtains to close further. An increase in temperature will have the opposite result. You can use the ‘delay button’ to enable the climate to adjust to the new situation. A sudden drop in temperature by 2°C or more (as may occur with inclement weather) will cause the ventilation valve or curtain to be closed at an accelerated pace.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features Ventilation controller 1 curtain NVR-1 Stienen (70.01.50)
Bandwidth setting
-
Delay setting
0,5 - 4 min.
For use on a motor with position feedback
+
Frost protection
-
Heating contact, 230Vac/2A
-
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Ventilation controller 1 curtain NVR-1 Stienen (70.01.50)
Specification Ventilation controller 1 curtain NVR-1 Stienen (70.01.50)
Bandwidth setting
-
Delay setting
0,5 - 4 min.
For use on a motor with position feedback
+
Frost protection
-
Heating contact, 230Vac/2A
-
Housing ABS
+
Maximum valve opening setting
-
Minimum valve opening setting
-
Neutral zone setting - heating
-
Potentiometer input (10KΩ)
-
Power supply
230Vac - 50/60Hz
Producing country
Netherlands
Relay outputs 230Vac/2A
1
Running time setting
1 - 20 sec.
Temperature sensors
1
Temperature setting
5 - 40°C
