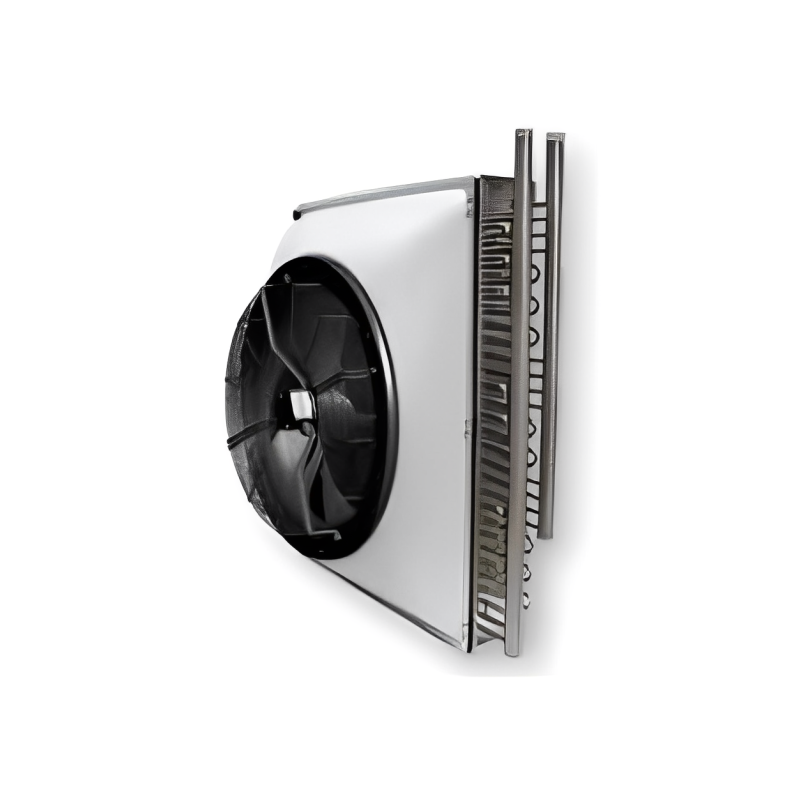

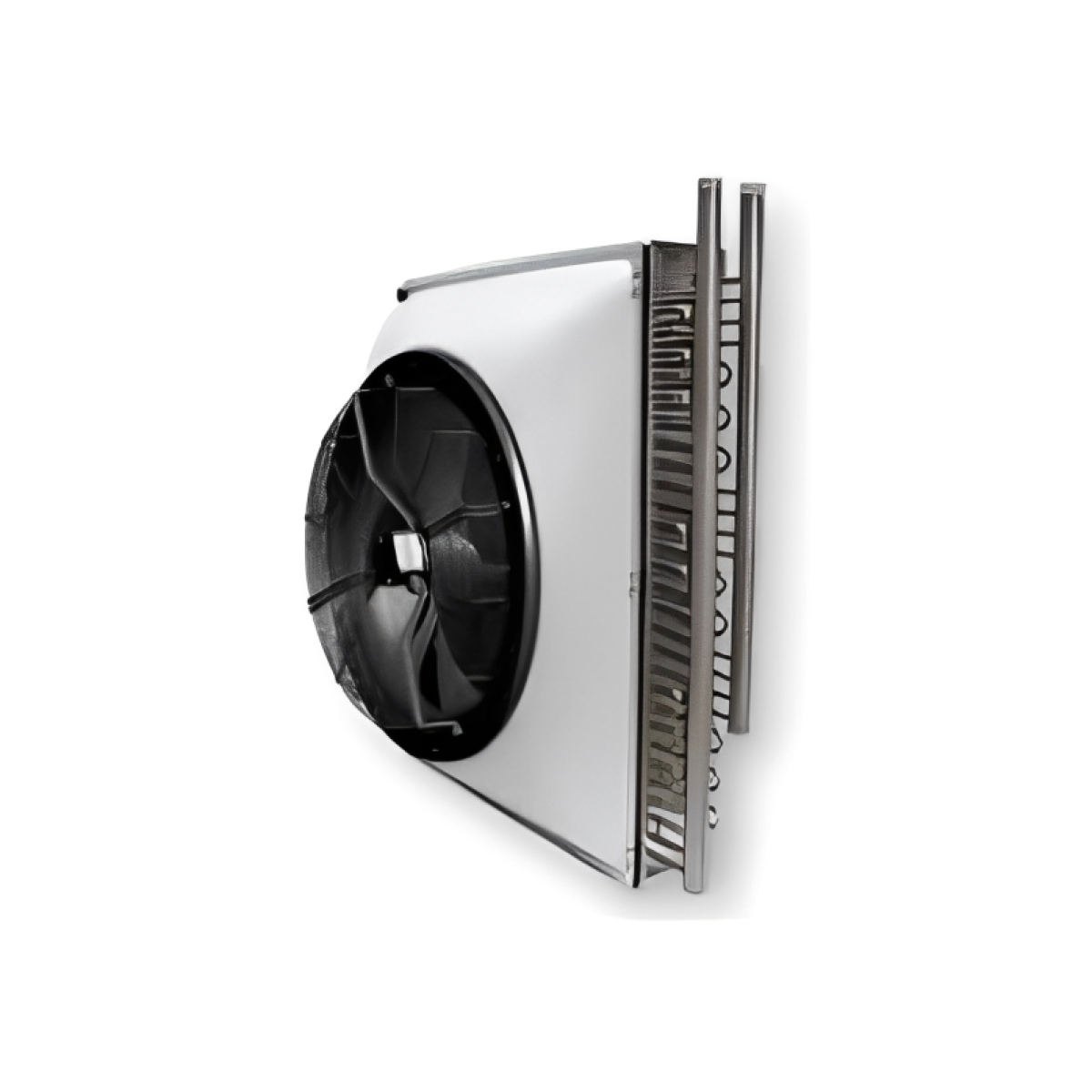

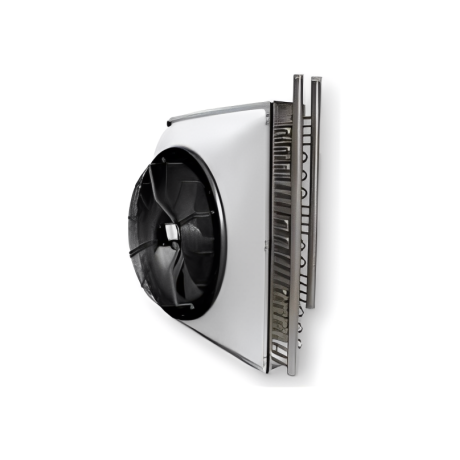

Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
In stock in Europe
Article: 11 79 00
166 920 ₴
Features
Brand
Air discharge range, m
35
Ambient temperature, °C
20;30
Depth, mm
390
Distance between plates, mm
7
Heat exchanger heating capacity, kW
33;28
All characteristics
Description
The heat exchangers are specially designed for use in livestock buildings. The heat exchanger body and heating tubes are made of stainless steel. The anodized aluminum plates have a large wall thickness. Thanks to the 7 mm plate spacing, the heat exchangers usually only need to be cleaned at the end of the operating period. Cleaning can be carried out using a high-pressure apparatus, observing the appropriate nozzle spacing. Heat exchangers designed specifically for use in livestock buildings are characterized by low energy consumption. The heating tubes and heat exchanger housing are made of stainless steel.Benefits and warranty
High quality
The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support
Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices
Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges
We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.
Delivery
Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9
Оплата
Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card - Cash on delivery "Nova Poshta"
Features Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
Air discharge range, m
35
Ambient temperature, °C
20;30
Depth, mm
390
Distance between plates, mm
7
Heat exchanger heating capacity, kW
33;28
All characteristics
Reviews (0)
There are no reviews for this product.
Buy together with Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
Specification Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
Air discharge range, m
35
Ambient temperature, °C
20;30
Depth, mm
390
Distance between plates, mm
7
Heat exchanger heating capacity, kW
33;28
Height, mm
720
Material
Stainless steel
Output speed, m/s
3
Power consumption, A
0,44
Producing country
Germany
Productivity, m³/h
3600
Temperature at the output, °C
46;53
Water temperature, input °C
90
Water temperature, output °C
70
Water volume, m³/h
1.4;1.2
Weight (without / with water), kg
40
Width, mm
725
Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
166 920 ₴
Reviews Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
There are no reviews for this product.
Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
166 920 ₴
Questions Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
There are no reviews for this product.
Vertical heat exchanger, PIG version, 33 kW HSI (11 79 00)
166 920 ₴
