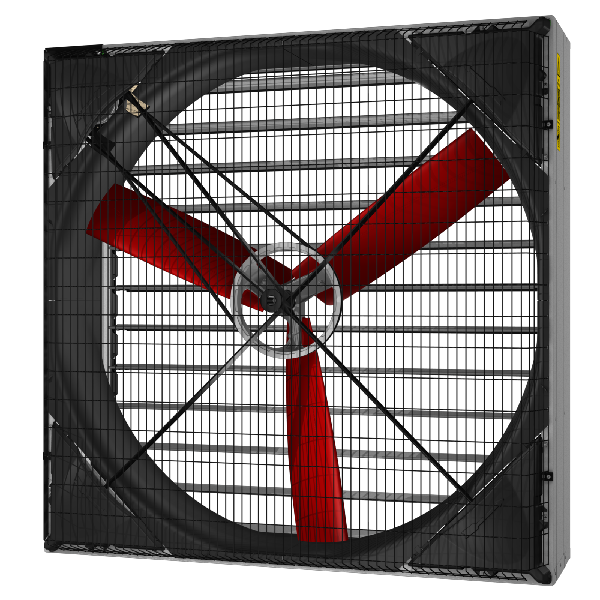

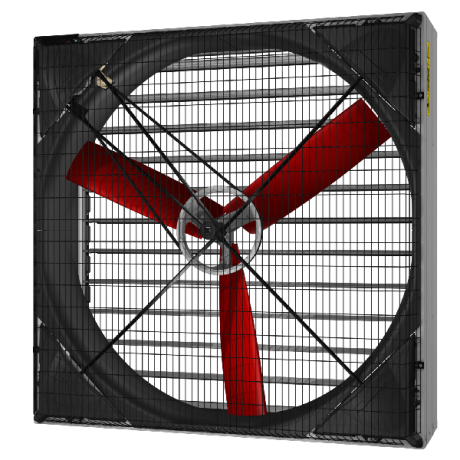

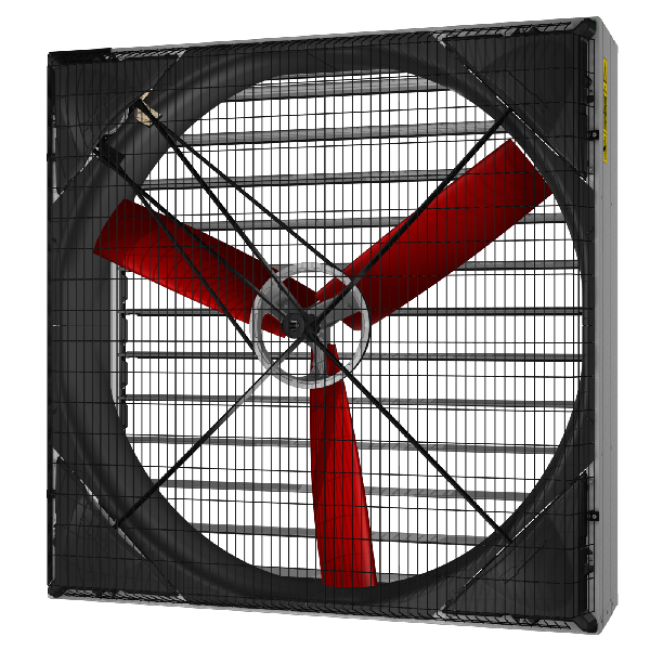

Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

In stock in Europe
Article: V4D13A4M11036
Write a review
58 757 ₴

Features

Brand
Air volume at 0 Pa (0.00 in. wg)
40400 m3/h
Air volume at 50 Pa (0.2 in. wg)
33100 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Benefits and warranty

  • High quality

    The equipment is manufactured by leading European manufacturers, using modern technologies and materials.

  • Professional support

    Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.

  • Competitive prices

    Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.

  • Returns and Exchanges

    We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

  • Nova Poshta
  • By courier in Kiev
  • Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

  • Payment in cash
  • Payment Apple Pay / Google Pay
  • Payment by installments Monobank
  • Payment online Visa / MasterCard
  • Payment by card
  • Cash on delivery "Nova Poshta"

Multifan Galvanized box fans 130 cm 1100 W


The Multifan galvanised steel wall fan is a high-performance ventilation solution that combines power, compact design and durability. Thanks to its galvanised box construction, the fan ensures reliable operation even in difficult environments.

Advantages:

  • High performance: Provides powerful air exchange, ideal for large rooms.
  • Durability: The galvanised steel construction makes the fan resistant to corrosion, which extends its service life.
  • Easy to install: The boxed design makes it easy to integrate the fan into the wall of the room.
  • Possibility to expand the functionality: The fan can be equipped with additional elements such as louvres, light reflectors or air filters.
  • Compact size: Optimal size for efficient operation without wasting space.

Applications:

  • Agriculture: Ideal for ventilation in poultry houses, pigsties, cowsheds and other farm buildings.
  • Industry: Used for air exchange in production halls, warehouses and hangars.
  • Commercial buildings: Provides a comfortable microclimate for staff and customers.
  • Warehouses: Maintains optimum temperature and reduces humidity levels.


The Multifan galvanised steel wall fan is a reliable solution for creating comfortable conditions and efficient air exchange in any room.

Features Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

Air volume at 0 Pa (0.00 in. wg)
40400 m3/h
Air volume at 50 Pa (0.2 in. wg)
33100 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial

Reviews (0)

There are no reviews for this product.

Buy together with Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

Specification Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

Air volume at 0 Pa (0.00 in. wg)
40400 m3/h
Air volume at 50 Pa (0.2 in. wg)
33100 m3/h
Diameter
1286 mm
Diameter, mm
1286
Fan type
Wall / axial
Frequency
50 Hz
Insulation Class
Cl.f
IP Class
Ip55
Material
Pg
Max. ambient temperature
40 °C
Maximum current
3.9/2.3 A
Min. ambient temperature
-25 °C
Phase
3
Power consumption
1100 W
Rated current, A
370/220 mA
Voltage
230/400 V
Weight
70.7 kg
Weight, kg
70.7
Леза
3
Система
N

Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

58 757 ₴

Reviews Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

There are no reviews for this product.

Leave feedback

Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

58 757 ₴

Questions Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

There are no reviews for this product.

Ask a question

Multifan 130cm 1100W Galvanized Steel Wall Fan V4D13A4M11036

58 757 ₴
