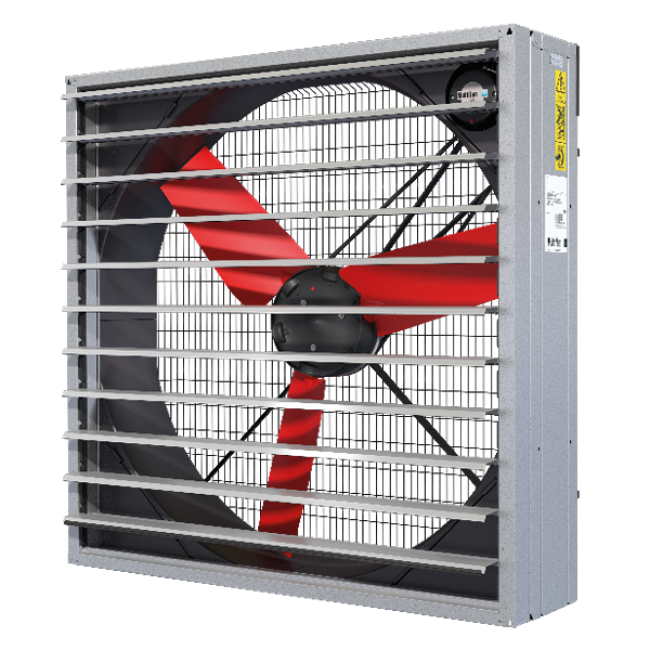

Axial fan, 1450 W (V4D13D2M11236)

Name: Axial fan, 1450 W (V4D13D2M11236)
Brand: Vostermans
SKU: V4D13D2M11236
Price: 53415 UAH
Availability: InStock

In stock in Europe

Article: V4D13D2M11236

Write a review

53 415 ₴

Features

Brand

Vostermans

Air volume at 0 Pa (0.00 in. wg)

44800 m3/h

Air volume at 50 Pa (0.2 in. wg)

35600 m3/h

Diameter

1284 mm

Diameter, mm

1284

Fan type

Wall / axial

All characteristics

Download technical documentation

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Download technical documentation

Benefits and warranty

High quality

The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support

Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices

Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges

We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card
Cash on delivery "Nova Poshta"

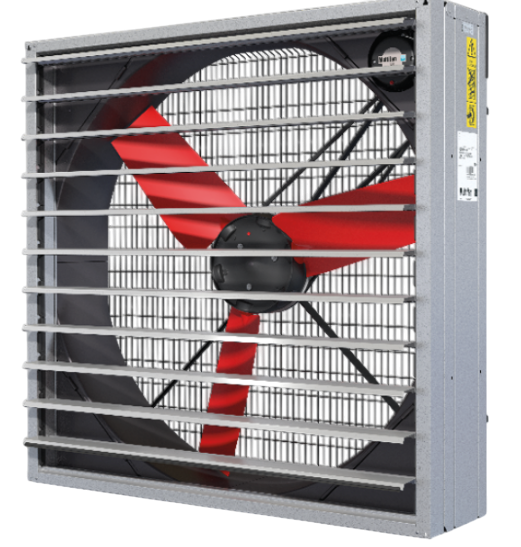

Multifan galvanised steel axial fan 130 cm 1450 W

The Multifan galvanised steel axial fan is a reliable solution for efficient ventilation in large rooms. Thanks to its robust galvanised casing, this fan is durable and corrosion-resistant, allowing it to be used even in harsh environments. The compact design and the possibility of additional equipment make it versatile for a variety of industries.

Advantages:

High performance: The powerful airflow ensures efficient air exchange even in large rooms.
Corrosion resistance: Galvanised steel protects the casing from rust and extends the service life of the equipment.
Flexible configuration: The fan can be equipped with additional elements such as louvres, light reflectors or air filters.
Easy installation: The box design allows for quick and easy installation into a wall.
Compact design: Combining high performance with space saving.

Applications:

Agriculture: Ideal for poultry houses, pigsties, greenhouses and barns to maintain an optimal microclimate.
Industrial facilities: Provides reliable ventilation in production halls, warehouses, workshops and hangars.
Commercial premises: Used in large stores, shopping centres, restaurants and exhibition halls.
Filtration and cooling systems: Works effectively as part of a cooling or air purification system.

The Multifan galvanised steel axial flow fan is a combination of performance, reliability and versatility that allows you to maintain a comfortable and healthy environment in your premises.

Features Axial fan, 1450 W (V4D13D2M11236)

Air volume at 0 Pa (0.00 in. wg)

44800 m3/h

Air volume at 50 Pa (0.2 in. wg)

35600 m3/h

Diameter

1284 mm

Diameter, mm

1284

Fan type

Wall / axial

All characteristics

Reviews (0)

There are no reviews for this product.

Buy together with Axial fan, 1450 W (V4D13D2M11236)

Specification Axial fan, 1450 W (V4D13D2M11236)

Air volume at 0 Pa (0.00 in. wg)

44800 m3/h

Air volume at 50 Pa (0.2 in. wg)

35600 m3/h

Diameter

1284 mm

Diameter, mm

1284

Fan type

Wall / axial

Frequency

50 Hz

Insulation Class

Cl.f

IP Class

Ip55

Material

Max. ambient temperature

40 °C

Maximum current

5.7/3.3 A

Min. ambient temperature

-25 °C

Phase

Power consumption

1450 W

Rated current, A

520/300 mA

Voltage

230/400 V

Weight

77.5 kg

Weight, kg

77.5
