Buy together

Wall fan, MULTIFAN, 1600 W (V4D13A0M11235)

Name: Wall fan, MULTIFAN, 1600 W (V4D13A0M11235)
Brand: Vostermans
SKU: V4D13A0M11235
Price: 48671 UAH
Availability: InStock

In stock in Europe

Article: V4D13A0M11235

Write a review

48 671 ₴

Features

Brand

Vostermans

Air volume at 0 Pa (0.00 in. wg)

46700 m3/h

Air volume at 50 Pa (0.2 in. wg)

35000 m3/h

Diameter

1286 mm

Diameter, mm

1286

Fan type

Wall / axial

All characteristics

Download technical documentation

Description

High performance captured in a compact design. Galvanized Box Fans are often used in buildings where a lot of ventilation is required.The box of the fan makes it easy to position the fan in a wall, and to equip your fan with add-ons such as a shutter. In addition, the Galvanized Box Fan can also be combined with light traps or air filters.

Download technical documentation

Benefits and warranty

High quality

The equipment is manufactured by leading European manufacturers, using modern technologies and materials.
Professional support

Our specialists are always ready to provide qualified advice and assistance in choosing equipment. We also offer a full range of services from installation to maintenance and repair.
Competitive prices

Direct contracts with manufacturers allow us to offer competitive prices for all equipment. You will receive high quality at the best price.
Returns and Exchanges

We provide the opportunity to return or exchange the product within 14 days after purchase if it does not fit or has defects.

Delivery

Nova Poshta
By courier in Kiev
Pickup in Kyiv 1A Academician Korolev Avenue9

Оплата

Payment in cash
Payment Apple Pay / Google Pay
Payment by installments Monobank
Payment online Visa / MasterCard
Payment by card
Cash on delivery "Nova Poshta"

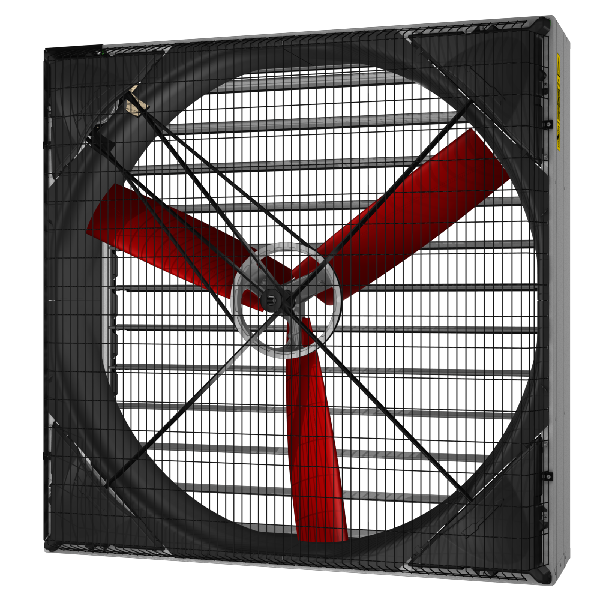

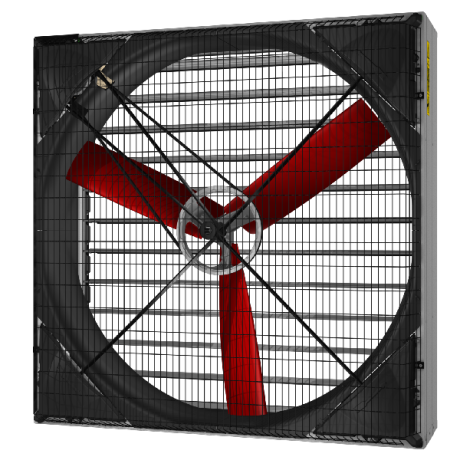

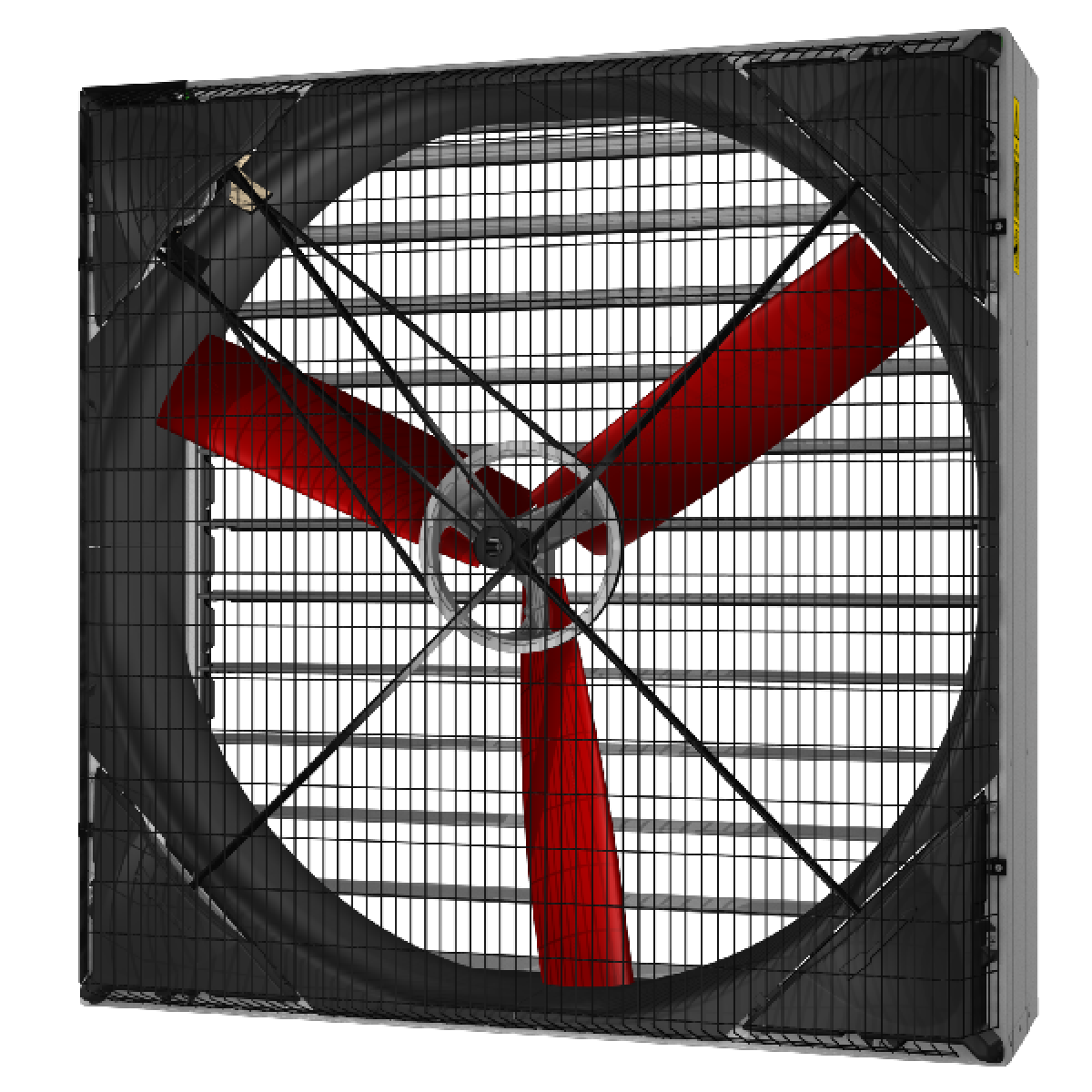

Multifan Galvanized box fans 130 cm, 1600 W

The Multifan galvanised steel wall box fan provides efficient ventilation for industrial, agricultural and commercial premises. Its clever design makes it easy to integrate the fan into walls, and its robust galvanised construction ensures a long service life even in harsh environments.

Key benefits:

High performance: Powerful airflow to ensure quality air exchange even in large rooms.
Durability: The galvanised steel casing is resistant to corrosion, making the fan suitable for use in high humidity or aggressive environments.
Flexibility of use: Easy to equip with additional accessories such as louvres, light reflectors or air filters to increase functionality.
Aesthetic and compact installation: Conveniently placed in the wall without wasting space.

Applications:

Industrial facilities: Production halls, warehouses, logistics centres.
Agricultural premises: Barns, poultry houses, greenhouses.
Commercial and public buildings: Sports halls, exhibition venues, retail premises.

Technical features:

Housing material: Galvanised steel for extra protection against wear and tear.
Versatility: Possibility to add accessories to improve performance.
Easy installation: Easy and quick installation into the wall.

Multifan fans are a combination of innovative solutions, high performance and reliability. They are designed to provide an optimal microclimate in any environment.

Features Wall fan, MULTIFAN, 1600 W (V4D13A0M11235)

Air volume at 0 Pa (0.00 in. wg)

46700 m3/h

Air volume at 50 Pa (0.2 in. wg)

35000 m3/h

Diameter

1286 mm

Diameter, mm

1286

Fan type

Wall / axial

All characteristics

Reviews (0)

There are no reviews for this product.

Buy together with Wall fan, MULTIFAN, 1600 W (V4D13A0M11235)

Specification Wall fan, MULTIFAN, 1600 W (V4D13A0M11235)

Air volume at 0 Pa (0.00 in. wg)

46700 m3/h

Air volume at 50 Pa (0.2 in. wg)

35000 m3/h

Diameter

1286 mm

Diameter, mm

1286

Fan type

Wall / axial

Frequency

50 Hz

Insulation Class

Cl.f

IP Class

Ip55

Material

Max. ambient temperature

40 °C

Maximum current

5.4/3.1 A

Min. ambient temperature

-25 °C

Phase

Power consumption

1600 W

Rated current, A

509/300 mA

Voltage

230/400 V

Weight

80.7 kg

Weight, kg

80.7

Леза
