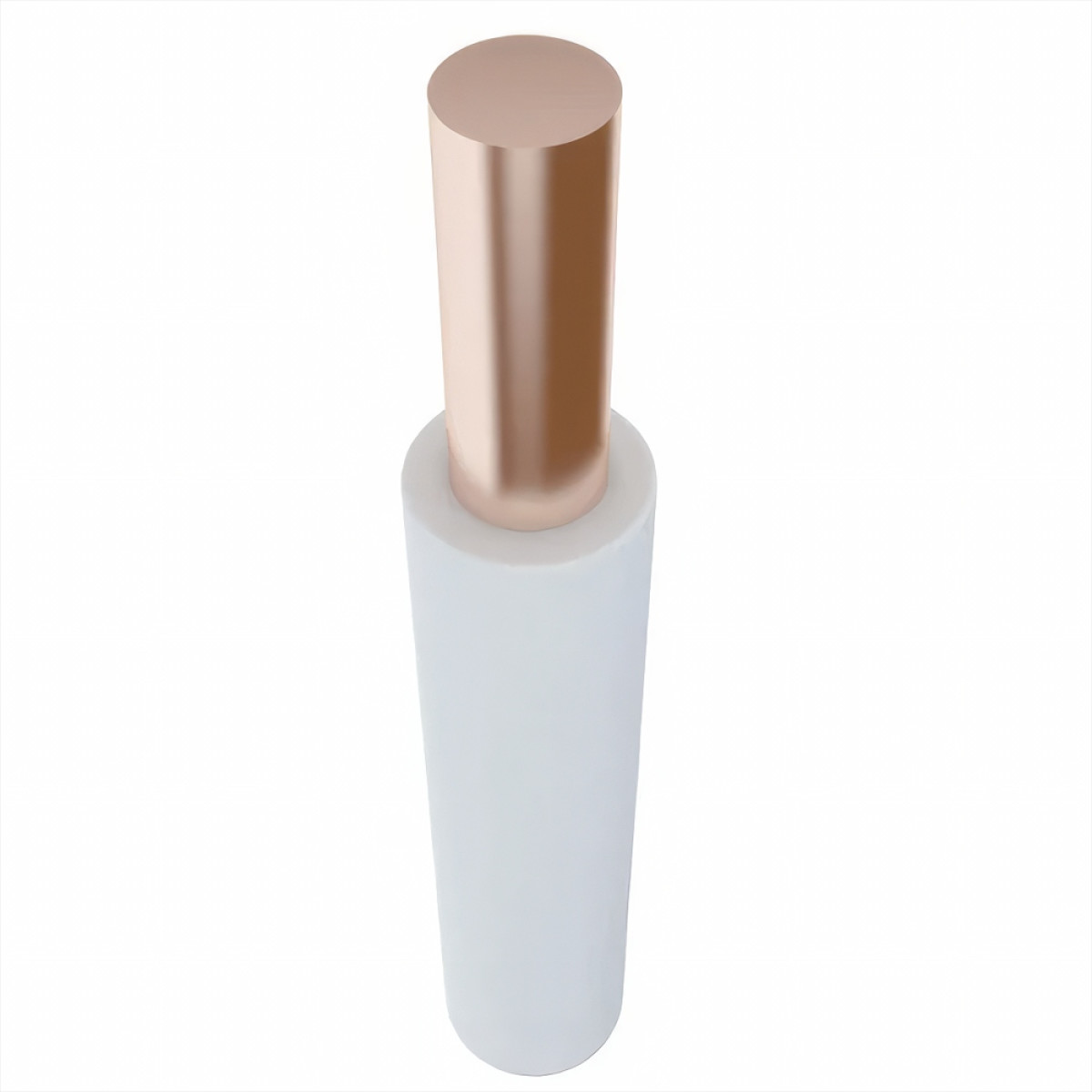

Wire PV1ngd white 2.5 EUROPAN CABLE (6994)

Description

PV1 is a wire with a copper core with polyvinyl chloride insulation. Scope of application It is intended for electrical installations during stationary laying in lighting and power networks, as well as for the installation of electrical equipment, machines, mechanisms and machines at a nominal voltage of up to 450 V (for networks up to 450/750 V) with a frequency of up to 400 Hz or a constant voltage of up to 1000 V. It is used for laying in steel pipes, hollow channels of building structures, on trays, for installing electrical circuits, for installing lighting networks inside rooms, for laying power lines that cannot be moved. If it is necessary to carry out external wiring, it is necessary to use trays, boxes, cable channels that protect the wire from mechanical damage and ultraviolet radiation. Construction Conductive wires - copper, single-wire or multi-wire (class 1, 2 DSTU EN 60228). Insulation of wires from polyvinyl chloride plastic. Operation The wire is intended for operation at an ambient temperature of up to -50°C, relative air humidity of up to 100% at a temperature of up to 35°C. The wire can be laid without preheating at a temperature not lower than -15°С. The minimum bending radius during installation must be at least 10 times the outer diameter of the wire. The permissible heating temperature of the wire cores during operation was 70°C.
