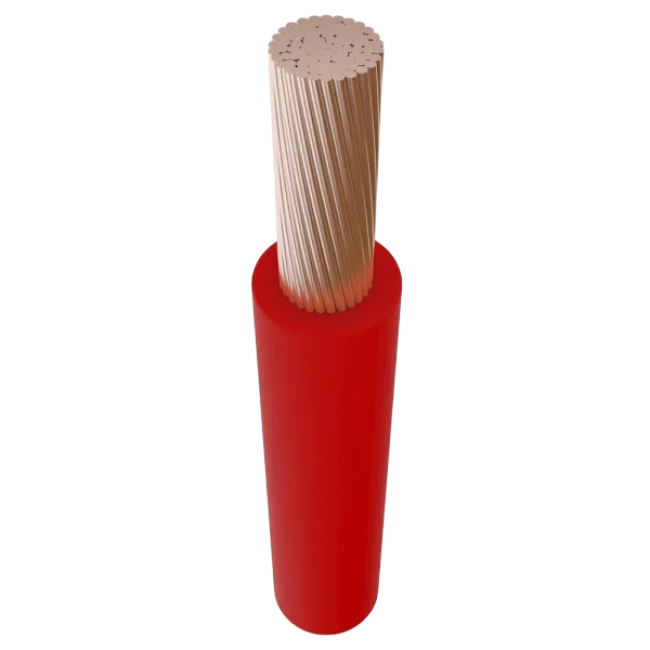

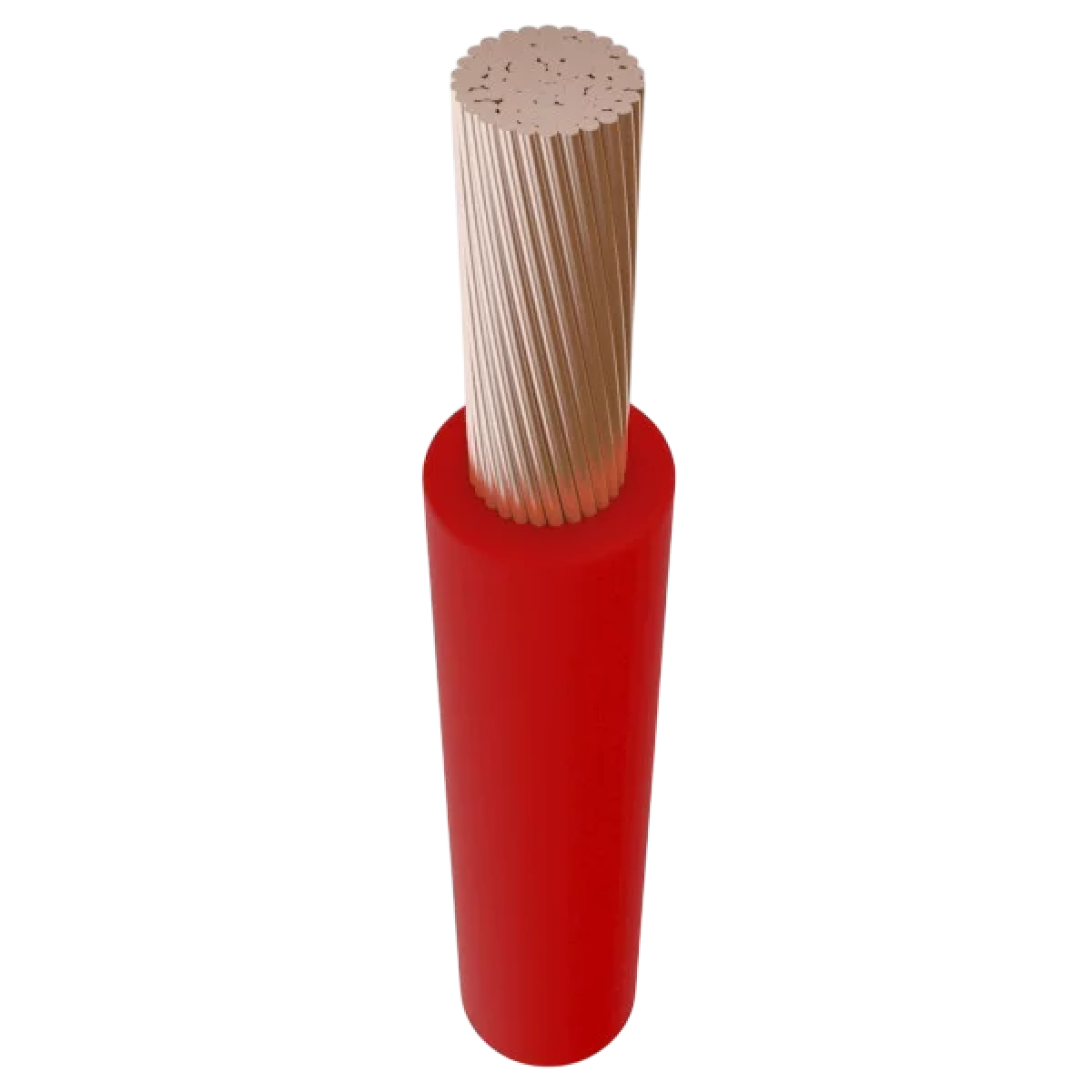

Wire PV3 red 0.5 EUROPAN CABLE (Т025018)

Description

Wire PV3 red 0.5 EUROPAN CABLE PV3 is a wire with a copper core with polyvinyl chloride insulation of increased flexibility. Scope Intended for electrical installations with stationary laying in lighting and power networks, as well as for the installation of electrical equipment, machines, mechanisms and machine tools for a nominal voltage of up to 450 V (for networks up to 450/750 V) with a frequency of up to 400 Hz or a constant voltage of up to 1000 V. Used for the installation of sections of electrical circuits where wire bends are possible, used in all areas of production, industry, wiring installation. If it is necessary to perform external wiring, it is necessary to use trays, boxes, cable channels that protect the wire from mechanical damage and ultraviolet radiation. Construction Conductor cores - copper, multi-wire (class 5 DSTU EN 60228). Core insulation made of polyvinyl chloride plastic. Operation The wire is designed for operation at ambient temperatures up to -50°C, relative humidity up to 100% at temperatures up to 35°C. The wire can be laid without preheating at temperatures not lower than -15°C. The minimum bending radius during installation must be at least 5 times the outer diameter of the wire. The permissible continuous heating temperature of the wire cores during operation is 70°C.
