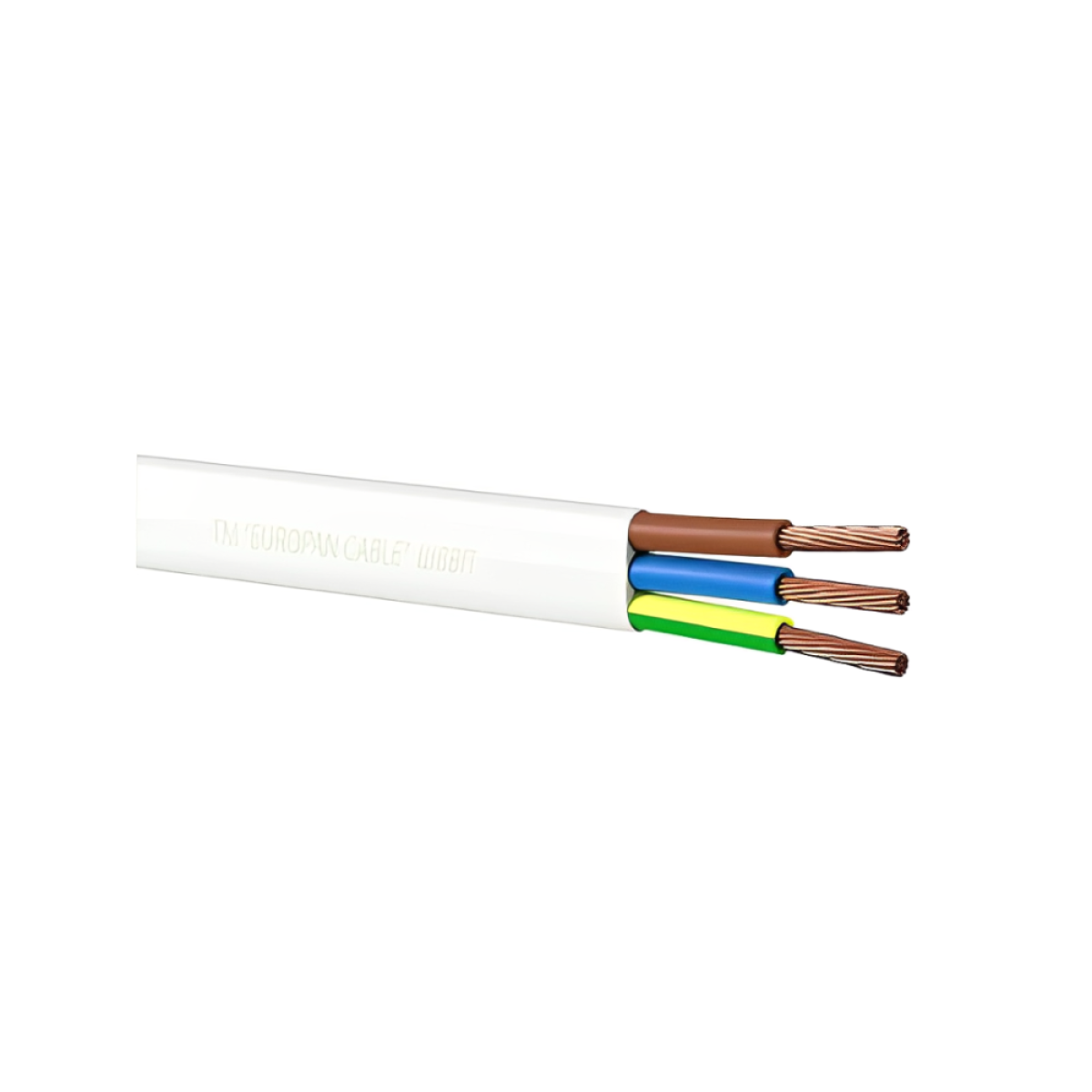

3x1.5 EUROPAN CABLE wire (3626)

Description

ShVVP – cord with parallel cores, polyvinyl chloride insulation and polyvinyl chloride sheath, flexible. Scope Intended for connecting electrical machines and appliances for household and similar use to the electrical network with a rated alternating voltage of up to 450/750 V. Used for connecting personal hygiene and microclimate devices, electric soldering irons, lamps, kitchen electromechanical devices, radio electronic equipment, washing machines, refrigerators and other similar devices operated in residential and administrative premises, and for the manufacture of extension cords. Design Conducting conductors – copper, multi-wire (class 5 DSTU EN 60228). Insulation and sheath made of polyvinyl chloride plastic compound. Operation The cord is designed for operation at ambient temperatures from -25°C to +40°C. The cord can be laid without preheating at a temperature not lower than -20°C. The minimum bending radius during operation must be no less than: - for cords with a cross-section of conductive cores of 0.35 and 1.0 mm sq. - 80 mm; - for cords with a cross-section of conductive cores of 1.5 and 2.5 mm sq. - 120 mm; - for cords with a cross-section of conductive cores of 4.0 and 6.0 mm sq. - 200 mm. The permissible continuous heating temperature of the cores during operation is 70°C. Service life: - 6 years - for non-stationary laying; - 10 years - in stationary devices.
